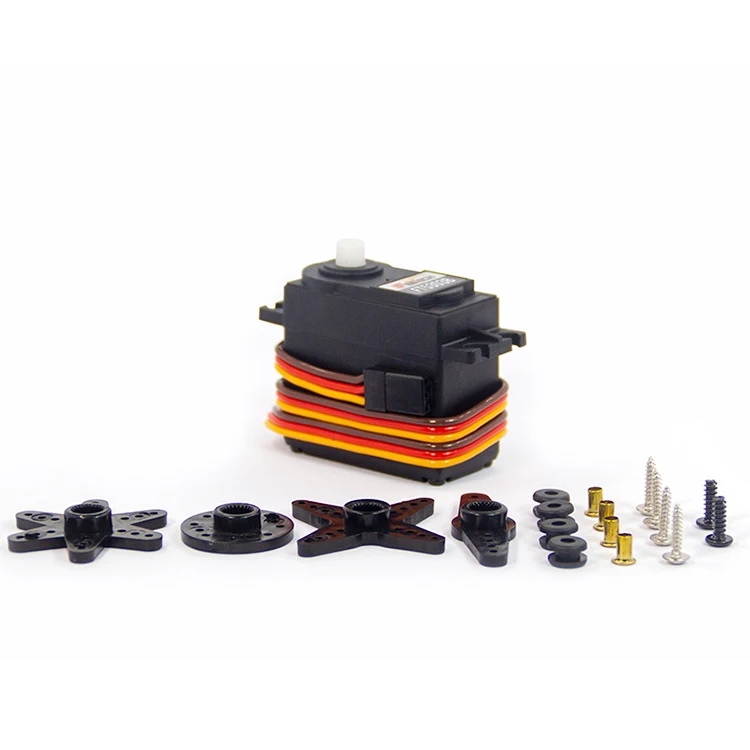

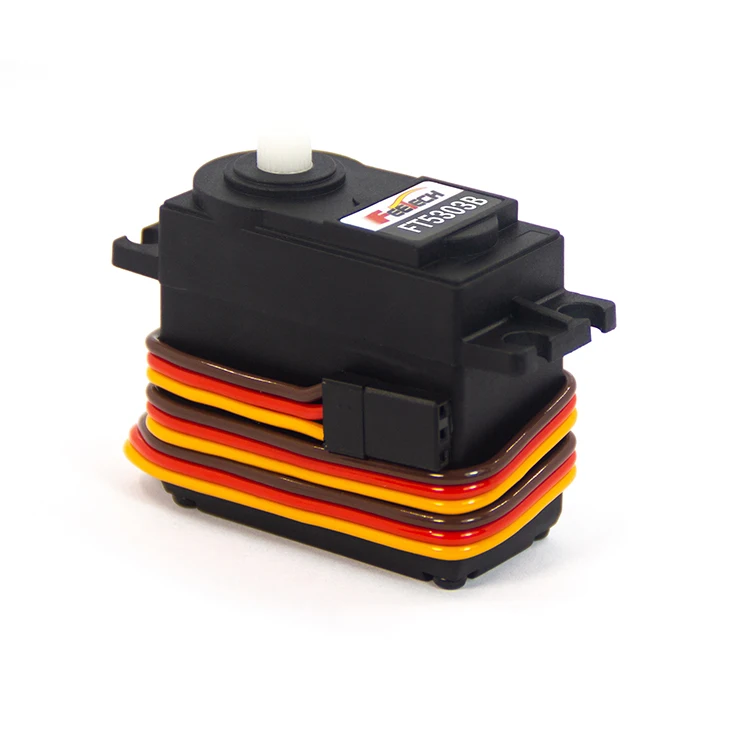

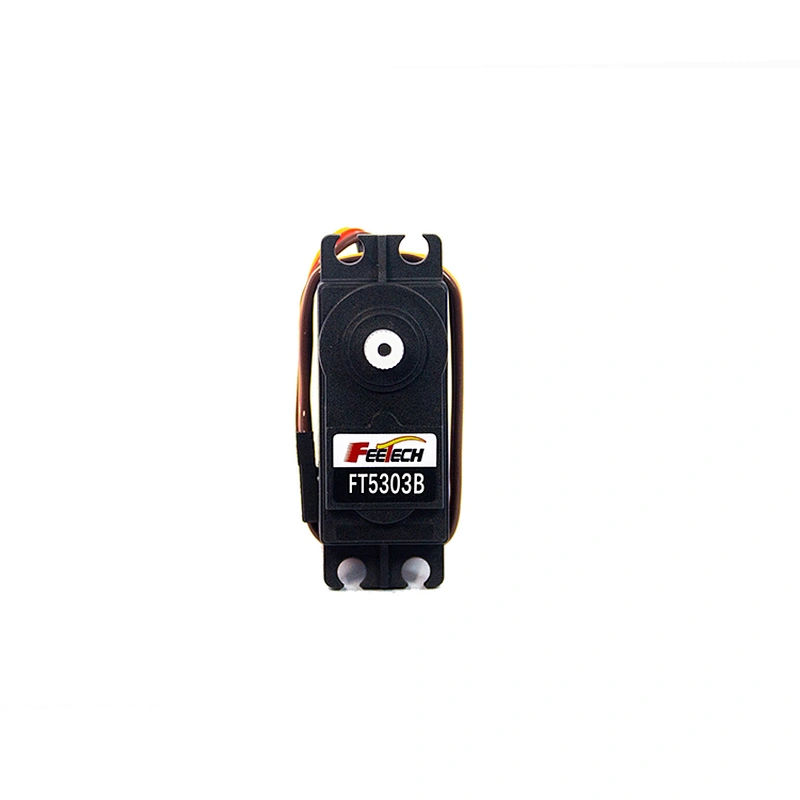

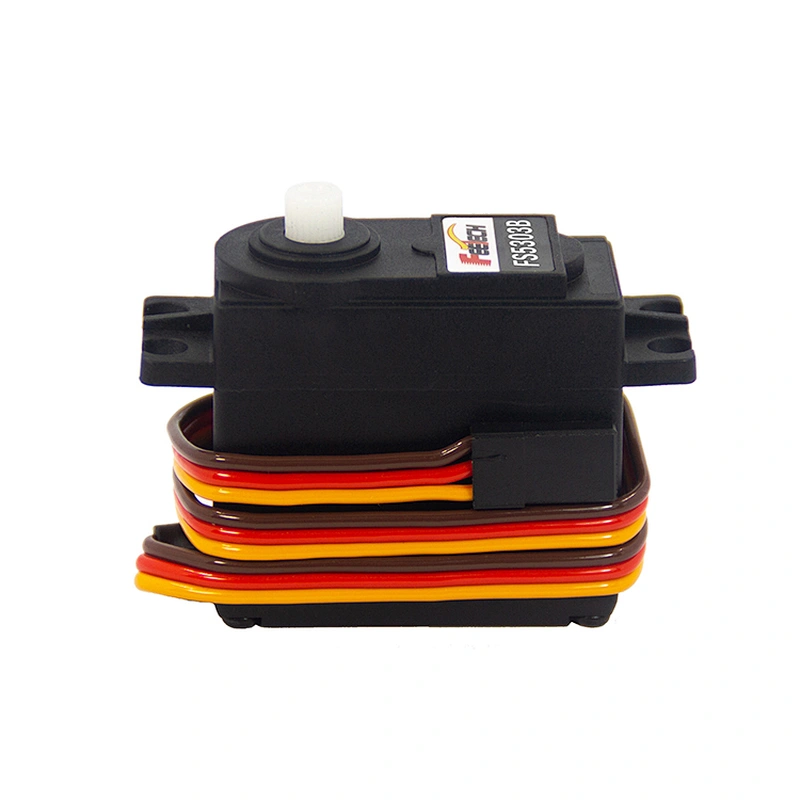

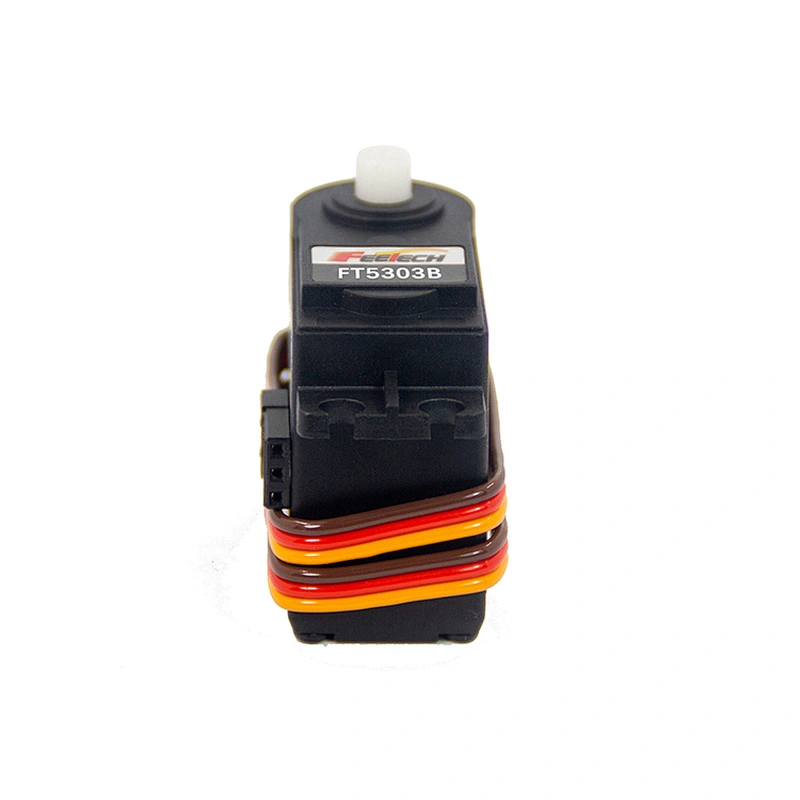

Low Voltage 3v 3kg servo for micro bit electronic educational starter kit BBC microbit robot servo

Low Voltage 3v 3kg servo for micro bit electronic educational starter kit BBC microbit robot servo

Model NO.: FT5303B-C001
Delivery: FOB

Quantity:

Product Description

Use:Vehicles & Remote Control Toys
Place of Origin:CN;GUA
Brand Name:Feetech
Model Number:FT5303B-C001
Product name:micro bit education servo
Gear type:Plastic Gear(POM ) (Gear Ratio=210:1)
Material:Metal
Size:A:40.15mm B:20.15mm C:37.55mm
Weight:44.9g
Temperature range:25℃ ±5℃
Bearing:2 Ball bearing
Horn type:Plastic,POM
Connector wire:300mm ±5 mm( JR)(Brown ,Red and Orange)
Motor:Metal brush motor

1-1Storage Temperature Range -30℃～80℃1-2Operating Temperature Range-20℃～70℃2. Standard Test EnvironmentNo.Item Specification2-1Temperature range25℃ ±5℃2-2 Humidity range65%±10%3. Mechanical SpecificationNo.Item Specification3-1A：40.15mm B：20.15mm C：37.55mm3-2Weight44.9g 3-3Gear typePlastic Gear(POM ) (Gear Ratio=210:1)3-6 Limit angle 200°±5°3-7Bearing2 Ball bearings3-8Horn gear spline 25T（5.96mm）3-9 Horn type Plastic,POM3-10CaseNylon & Fiberglass3-11Connector wire 300mm ±5 mm（ JR）(Brown ,Red and Orange)3-12 MotorMetal brush motor3-13 Splash water resistanceNO4.Electrical Specification (Function of the Performance)No."工作电压 Operating Voltage Range"3.0V 4.8V6V4-1*Idle current(at stopped)5mA5mA 5mA 4-2* No load speed0.26sec/60°38RPM 0.154sec/60° 65RPM 0.124 sec/60° 81RPM4-3* Runnig current(at no load)100mA130 mA 150 mA 4-4 Peak stall torque2.4kg.cm3kg.cm3.5 kg.cm33.38oz.in41.74oz.in48.7oz.in4-5Stall current500mA800 mA1100mA5-1Command signal Pulse width modification 5-2Amplifier type Digital comparator5-3Pulse width range 500～2500µsec5-4Neutral position 1500 µsec5-5Running degree 180°(when 500～2500 µsec)5-6Dead band width4 µsec5-7Rotating directionCounterclockwise (when 1000～2000 µsec)

Shenzhen Feetech RC Model Co., Ltd. founded in 2011,The brand of “FEETECH” is based on the concepts of Flying, Excellent, Efficient and Technology,are professional servo solution expert, can provide electronic design, structure design and production of one-stop customized service,our creative team is devoted to design & develop a most ideal servo for all project.The products have been involved in RC models, logistics warehousing, urban security, smart home, medical, military, education, robotics and other industries.And has passed ISO 9001:2015 quality management system certification and CE, RoHS, REACH certification.We look forward to working with you to create the future together!
