- Type:Motorcycle
- Power:Battery
- Material:plastic
- Plastic Type:ABS
- Scale:1:10
- Radio Control Style:RC Hobby
- Place of Origin:CN;GUA
- Brand Name:FEETECH
- Model Number:FB5103R-360

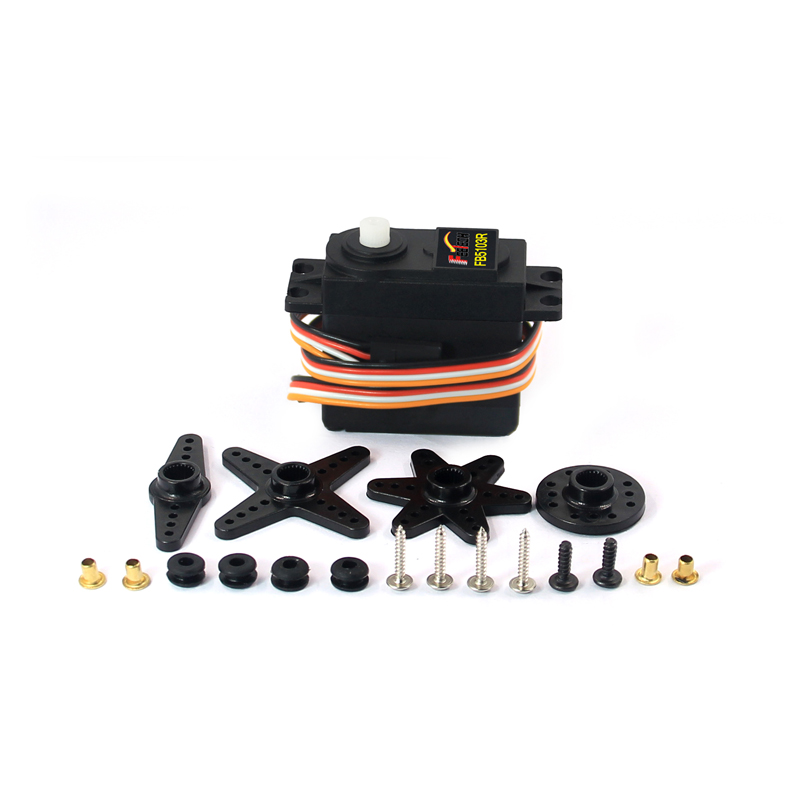

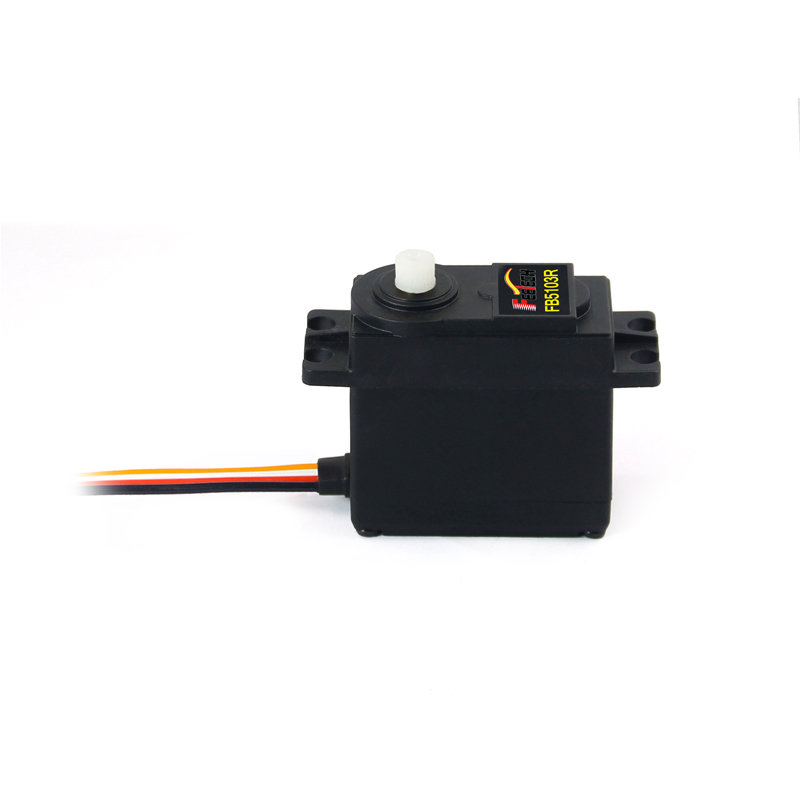

High Speed 0.07sec/60degree 2.2kg.cm Digital Servo FB5103R-360
SKU:FB5103R-360
Dimensions:40.8 × 20.1 × 38 mm
Weight:40 g
Operating Speed :
55RPM (4.8V)
60RPM(6V)
Stall Torque :
3kg.cm/41.74 oz.in(4.8V)
3.2kg.cm/44.52 oz.in(6V)
Operating Voltage :4.8V~6V
Control System :Digital
Direction :CCW
Operating Angle :Continuous rotation
Required Pulse :500us-2500us
Bearing Type :2BB
Gear Type :Plastic
Motor Type :Coreless
Connector Wire Length :20 cm

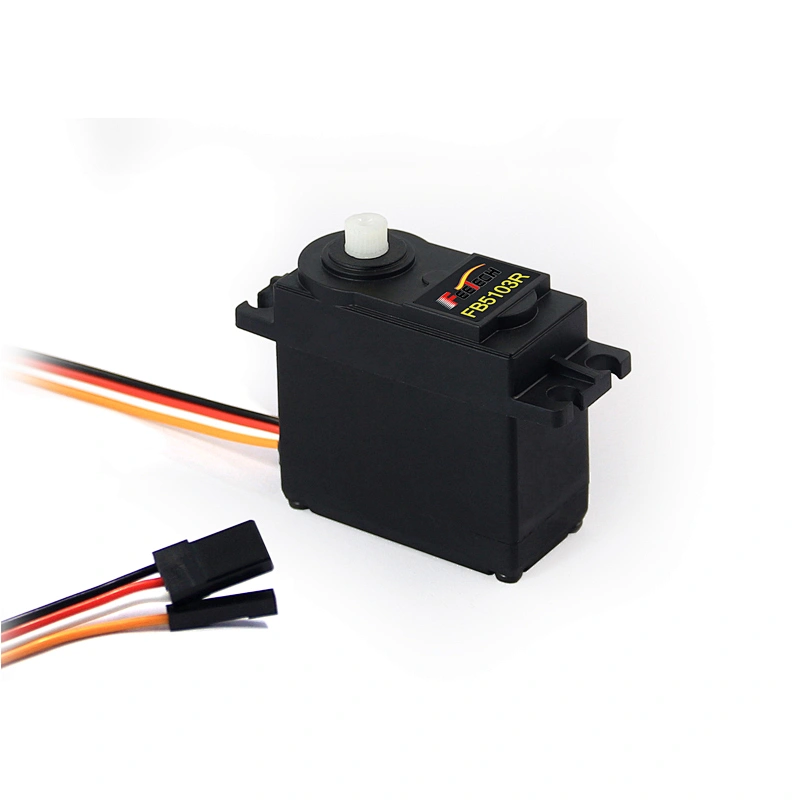

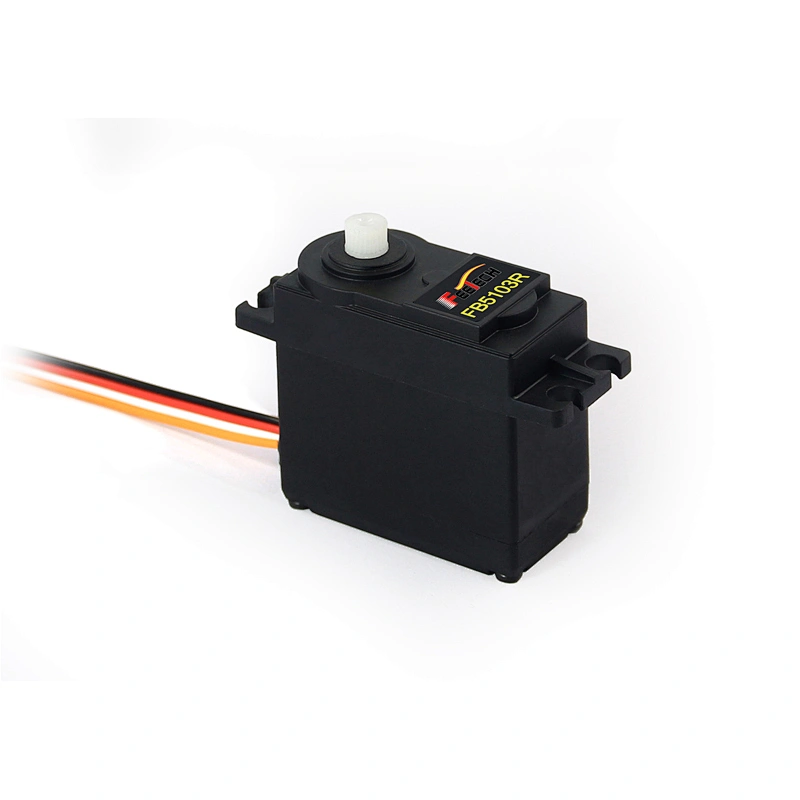

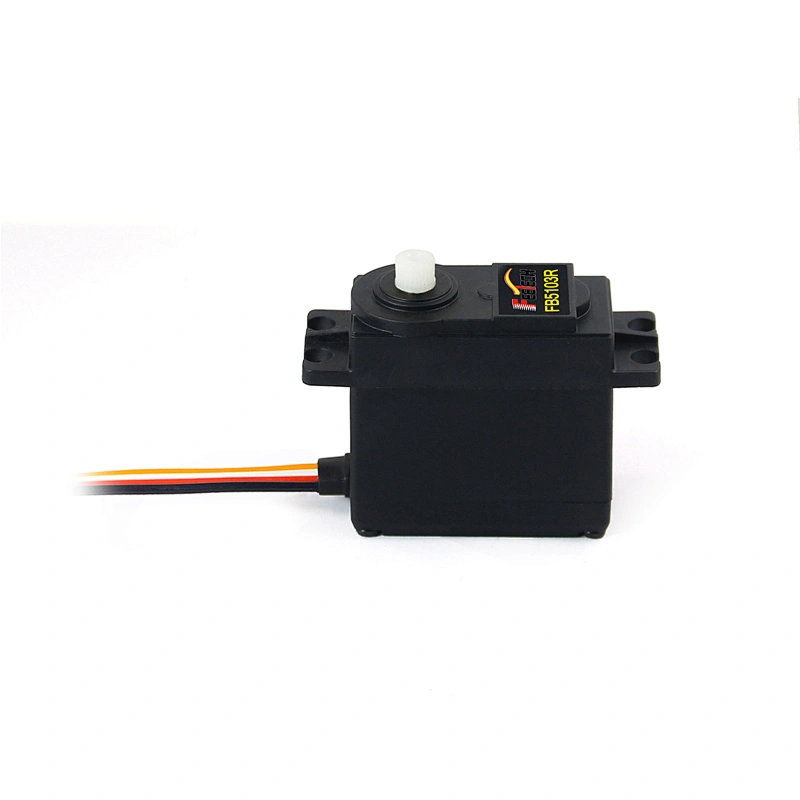

360 Degree Continuous Rotation Analog Feedback with Magnetic Encoder 3kg Digital Servo Storage Temperature Range
:-30℃~80℃
Operating Temperature Range:-15℃~70℃
Temperature range:25℃ ±5℃
Humidity range:65%±10%

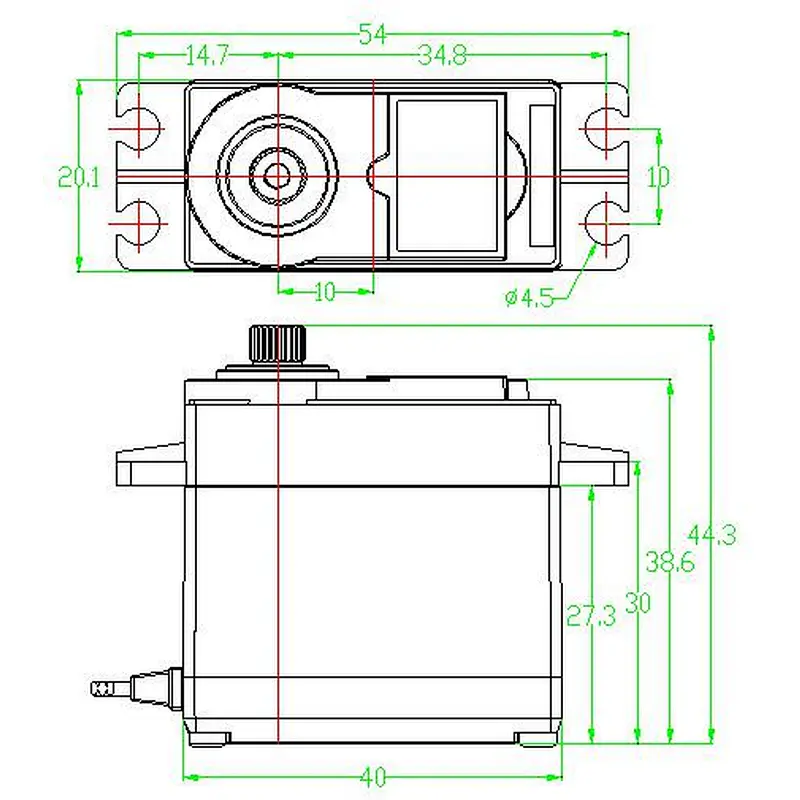

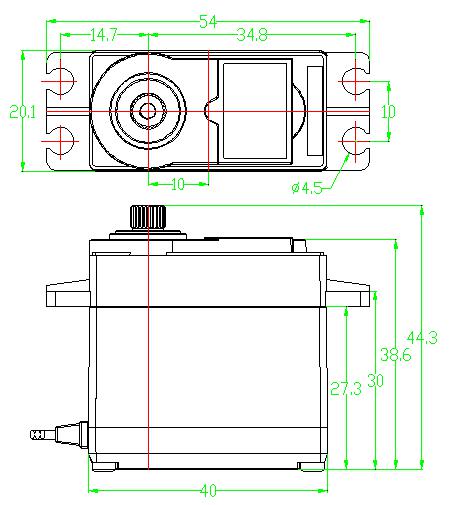

Size:A:40.8mm B:20.1mm C:38mm D:49.5mm
Weight:40g ±0.2(1.41oz)
Gear type:Plastic Gear(POM )
Limit angle:NO limit
Bearing:2 Ball bearings
Horn gear spline:25T
Horn type:Plastic,POM
Case:Nylon & Fiberglass
Connector wire:300mm ±5 mm (Black ,Red,white and Yellow)
Motor:Metal brush motor
Splash water resistance:NO
Electrical Specification (Function of the Performance)
Operating Voltage Range
:4.8V 6V
Idle current(at stopped) 5mA 6mA
No load speed 55RPM 60RPM
Runnig current(at no load) 150 mA 180 mA
Peak stall torque:3kg.cm(41.74oz.in) 3.2 kg.cm(44.52oz.in)
Stall current:780 mA 850mA
Note:"*"definition is average value when the servo runing with no load
Command signal Pulse width modification
Amplifier type:Digital comparator
Pulse width range:500~2500µsec
Stop position:1500(±5) µsec
Feedback Voltage:500usec-3.063V/1500usec-1.673V/2500us-0.247V
Running degree:Continuous rotation
Dead band width:4 µsec
Rotating direction:clockwise (when 1000~2000 µsec)
