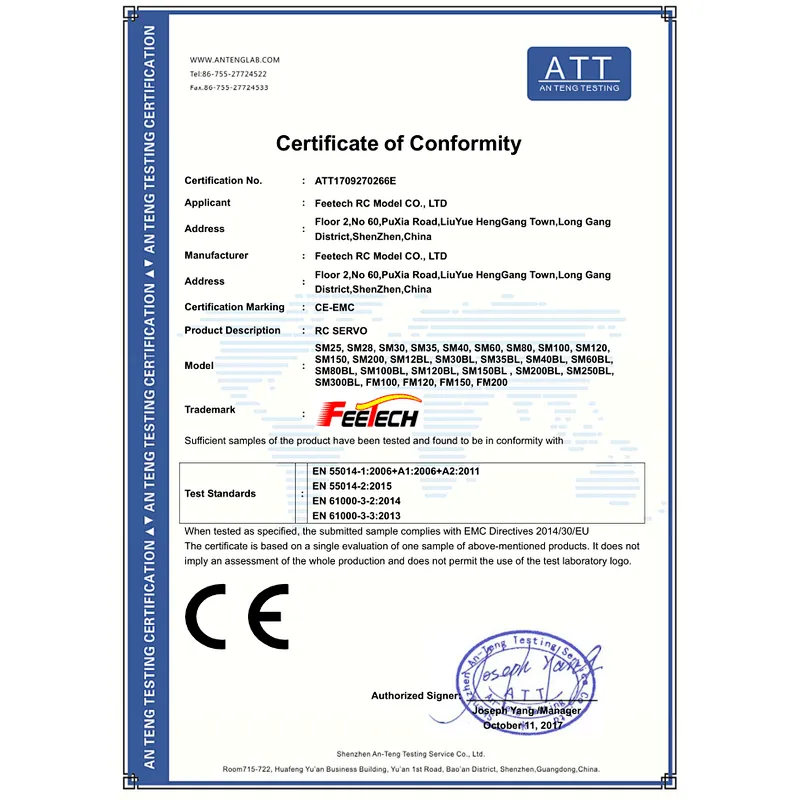

- Certificate:ROHS CE
- Function:Magnetic Encoder TTL 485 available
- Description:Potentionmeter 360°
- Feature:TTL Level Multi Drop/485
- Torque:24 kg
- voltage:12V~24V
- Application:Dynamixel XM540-W150-R
- Keyword:RS485
- Usage:Alternatives for the Dynamixel servos
- Type:Robotics/Industry
- Power:Battery
- Material:Vinyl
- Plastic Type:ABS
- Scale:1:8
- Radio Control Style:RC Model
- Place of Origin:CN;GUA
- Brand Name:FEETECH
- Model Number:SM29-24
Product Description
FEETECH
ROBOT.

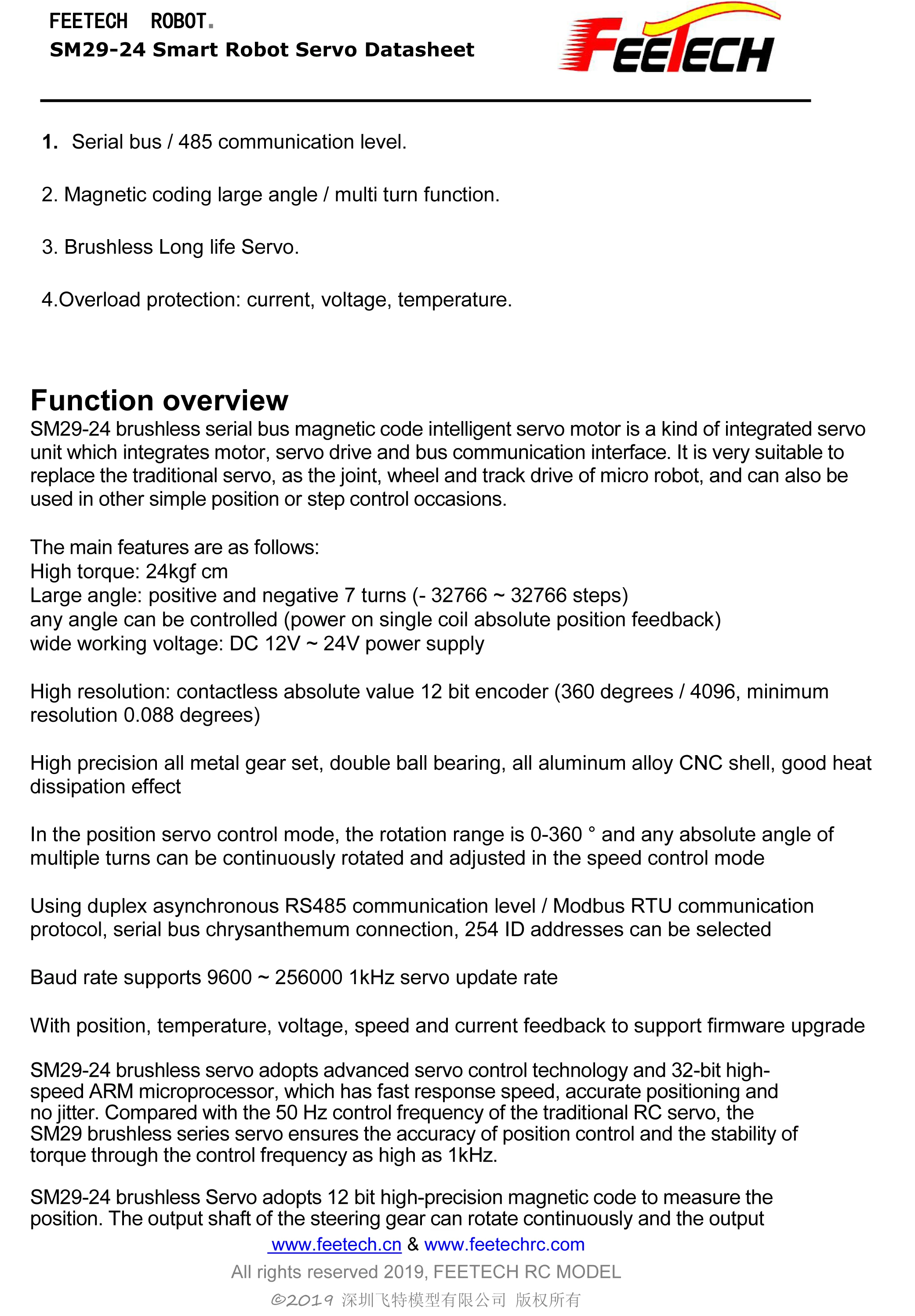

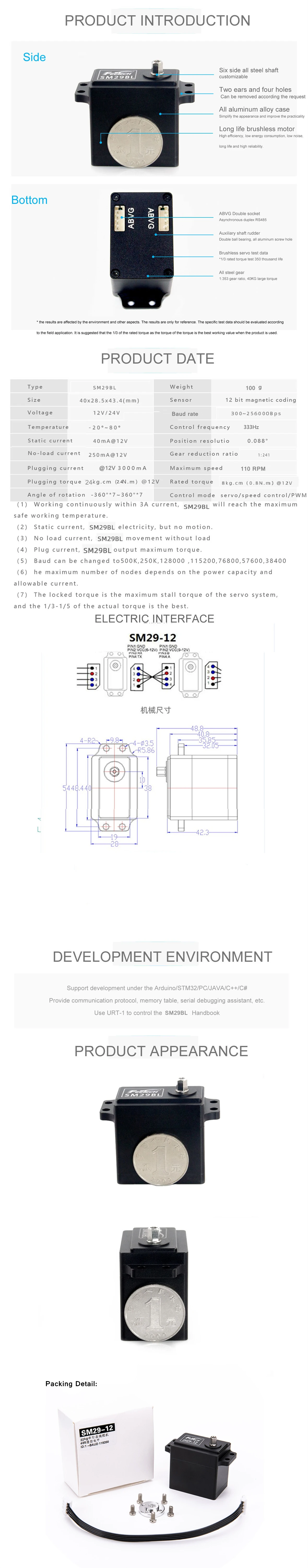

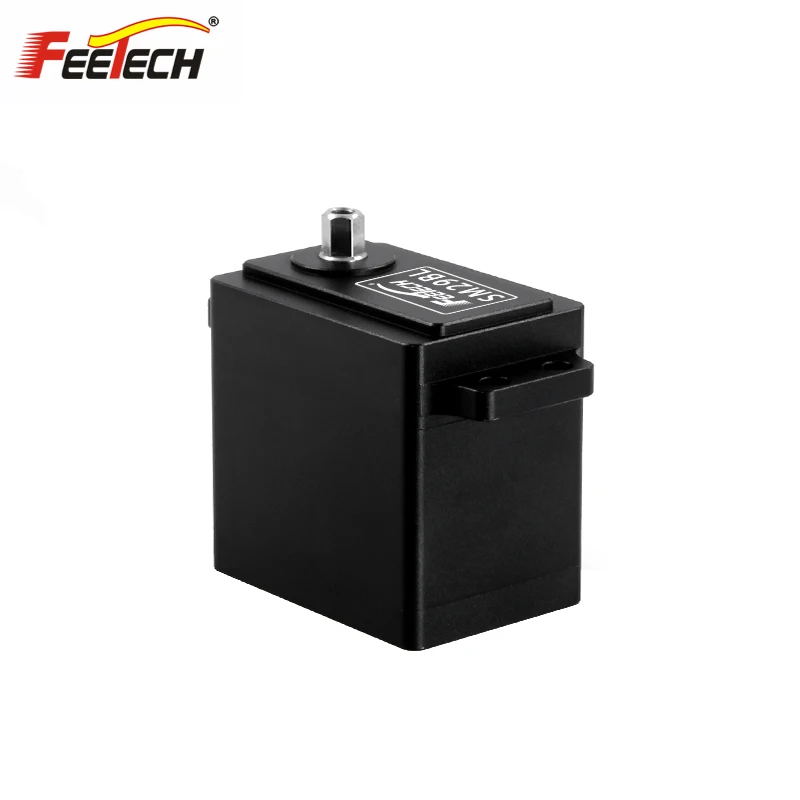

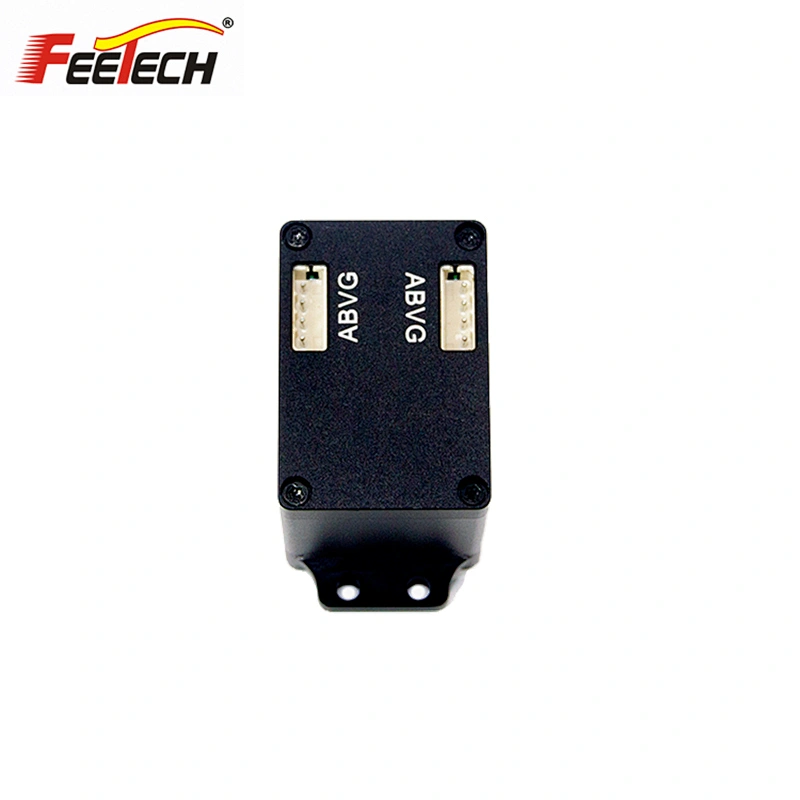

SM29-24 Smart Robot Servo Datasheet
1. Serial bus / 485 communication level.
2. Magnetic coding large angle / multi turn function.
3. Brushless Long life Servo.
4.Overload protection: current, voltage, temperatureFunction overview

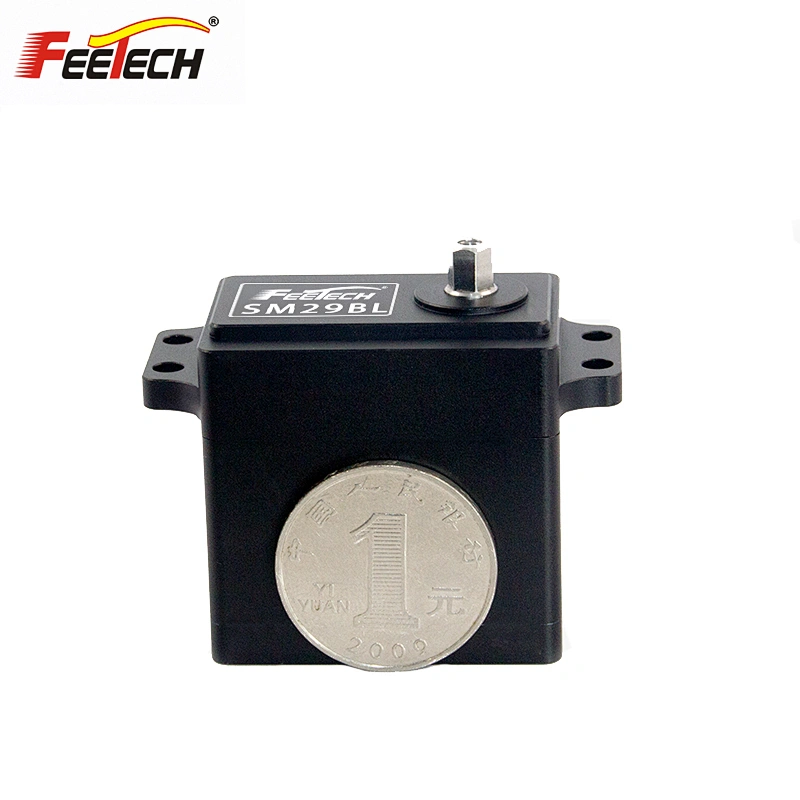

SM29-24 brushless serial bus magnetic code intelligent servo motor is a kind of integrated servo
unit which integrates motor, servo drive and bus communication interface. It is very suitable to
replace the traditional servo, as the joint, wheel and track drive of micro robot, and can also be
used in other simple position or step control occasions.
The main features are as follows:
High torque: 24kgf cm
Large angle: positive and negative 7 turns (- 32766 ~ 32766 steps)
any angle can be controlled (power on single coil absolute position feedback)
wide working voltage: DC 12V ~ 24V power supply
High resolution: contactless absolute value 12 bit encoder (360 degrees / 4096, minimum
resolution 0.088 degrees)
2. Magnetic coding large angle / multi turn function.
3. Brushless Long life Servo.
4.Overload protection: current, voltage, temperatureFunction overview
SM29-24 brushless serial bus magnetic code intelligent servo motor is a kind of integrated servo
unit which integrates motor, servo drive and bus communication interface. It is very suitable to
replace the traditional servo, as the joint, wheel and track drive of micro robot, and can also be
used in other simple position or step control occasions.
The main features are as follows:
High torque: 24kgf cm
Large angle: positive and negative 7 turns (- 32766 ~ 32766 steps)
any angle can be controlled (power on single coil absolute position feedback)
wide working voltage: DC 12V ~ 24V power supply
High resolution: contactless absolute value 12 bit encoder (360 degrees / 4096, minimum
resolution 0.088 degrees)
High precision all metal gear set, double ball bearing, all aluminum alloy CNC shell, good heat
dissipation effect In the position servo control mode, the rotation range is 0-360 ° and any absolute angle of
multiple turns can be continuously rotated and adjusted in the speed control mode.
dissipation effect In the position servo control mode, the rotation range is 0-360 ° and any absolute angle of
multiple turns can be continuously rotated and adjusted in the speed control mode.
Using duplex asynchronous RS485 communication level / Modbus RTU communication
protocol, serial bus chrysanthemum connection, 254 ID addresses can be selected
Baud rate supports 9600 ~ 256000 1kHz servo update rate
With position, temperature, voltage, speed and current feedback to support firmware upgrade
protocol, serial bus chrysanthemum connection, 254 ID addresses can be selected
Baud rate supports 9600 ~ 256000 1kHz servo update rate
With position, temperature, voltage, speed and current feedback to support firmware upgrade
SM29-24 brushless servo adopts advanced servo control technology and 32-bit high-
speed ARM microprocessor, which has fast response speed, accurate positioning and
no jitter. Compared with the 50 Hz control frequency of the traditional RC servo, the
speed ARM microprocessor, which has fast response speed, accurate positioning and
no jitter. Compared with the 50 Hz control frequency of the traditional RC servo, the
SM29 brushless series servo ensures the accuracy of position control and the stability of
torque through the control frequency as high as 1kHz.
torque through the control frequency as high as 1kHz.
SM29-24 brushless Servo adopts 12 bit high-precision magnetic code to measure the
position. The output shaft of the steering gear can rotate continuously and the output torque is up to 24 kg.cm.
SM29-24 brushless Servo has serial bus interface. 254 servos can form a chain type
through bus, and can be controlled by asynchronous serial interface. Each servo can be
set with different node address, and multiple servos can be unified motion or controlled
independently.
position. The output shaft of the steering gear can rotate continuously and the output torque is up to 24 kg.cm.
SM29-24 brushless Servo has serial bus interface. 254 servos can form a chain type
through bus, and can be controlled by asynchronous serial interface. Each servo can be
set with different node address, and multiple servos can be unified motion or controlled
independently.
The SM29-24 adopts Modbus RTU communication protocol. The servo communicates
with the user's upper computer through RS485 asynchronous serial interface. Users can
set its parameters, such as baud rate, angle setting, torque ratio setting, installation
median setting. For details, please refer to the memory table to realize function control.
with the user's upper computer through RS485 asynchronous serial interface. Users can
set its parameters, such as baud rate, angle setting, torque ratio setting, installation
median setting. For details, please refer to the memory table to realize function control.
The SM29-24 can be set to motor mode or position control mode by sending commands
through Modbus RTU communication protocol.
In the motor mode, SM29-24 can be used as a DC deceleration motor, with forward and
reverse rotation and adjustable speed; in the position control mode, any absolute angle of
0-360 ° single turn and multi turn can be controlled (the number of power down turns is
not saved), so it has accurate position control performance and controllable speed within
this range.
through Modbus RTU communication protocol.
In the motor mode, SM29-24 can be used as a DC deceleration motor, with forward and
reverse rotation and adjustable speed; in the position control mode, any absolute angle of
0-360 ° single turn and multi turn can be controlled (the number of power down turns is
not saved), so it has accurate position control performance and controllable speed within
this range.
Application area
SM29-24 brushless servo has the advantages of large angle, arbitrary absolute angle and long
life. The ideal application fields are:
Logistics shuttle
Robot wheel and track drive
Industrial automation devices requiring simple position control
SM29-24 brushless servo has the advantages of large angle, arbitrary absolute angle and long
life. The ideal application fields are:
Logistics shuttle
Robot wheel and track drive
Industrial automation devices requiring simple position control

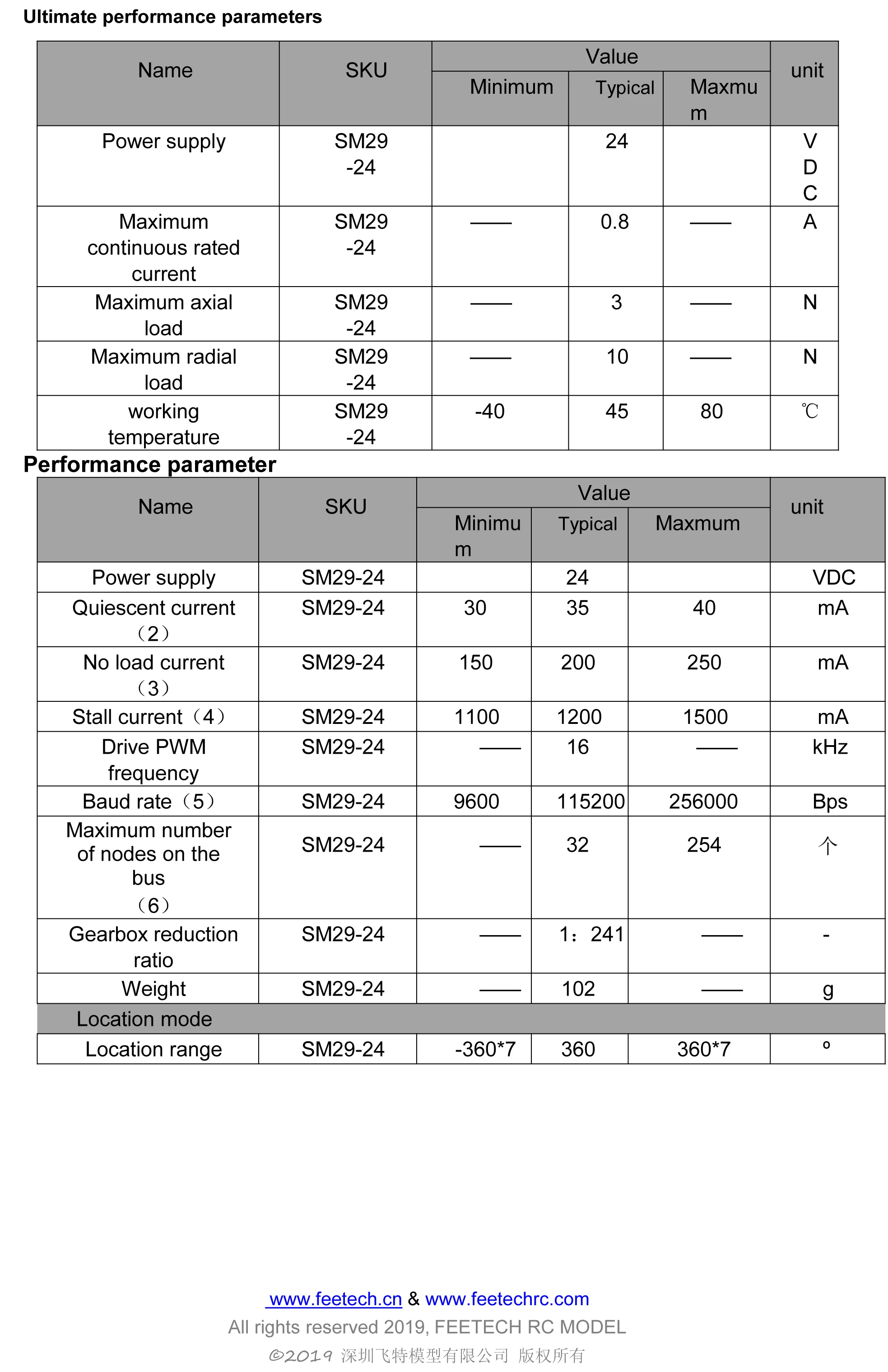

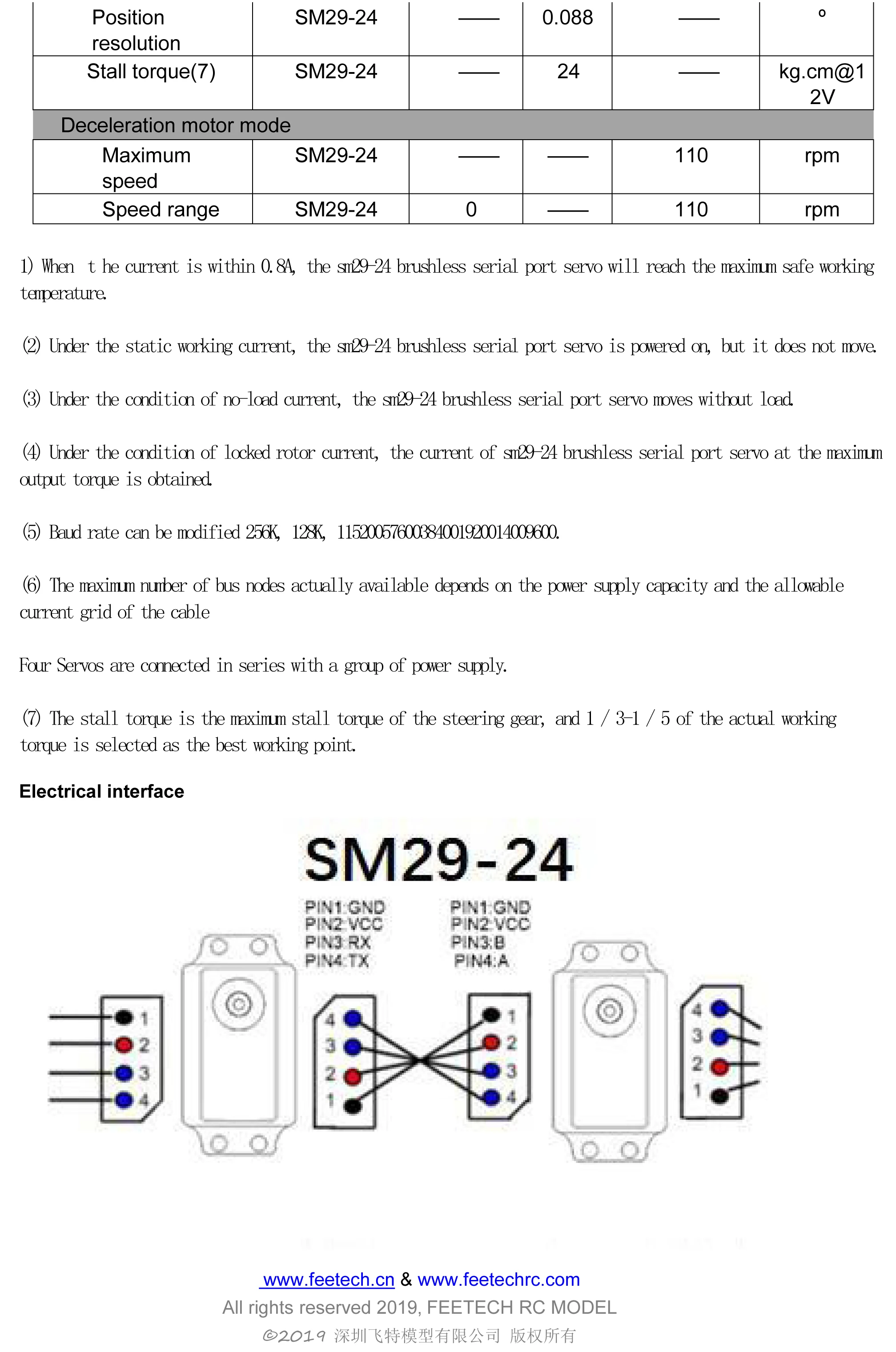

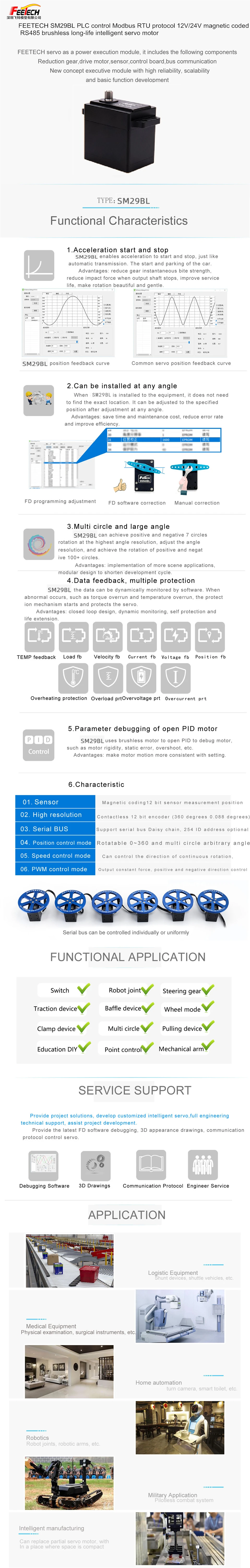

Specification Overview:
Product Usage
Product Application introduction
Related Products
Packing&Shipping

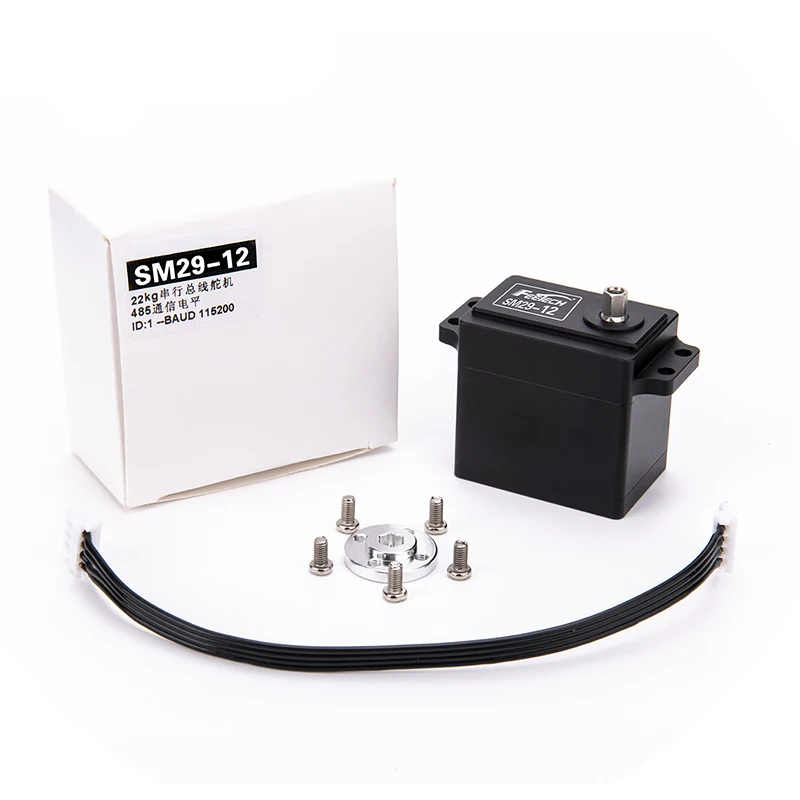

Packing:
-Servo×1PCS
-Servo horn with Screw setX1bag
-1pcs Servo Cable
-Servo×1PCS
-Servo horn with Screw setX1bag
-1pcs Servo Cable
