- Type:Car
- Power:Battery
- Scale:1:5
- Radio Control Style:RC Hobby
- Place of Origin:CN;GUA
- Material:CNC
- Plastic Type:Metal
- Brand Name:Feetech
- Model Number:SM29BL

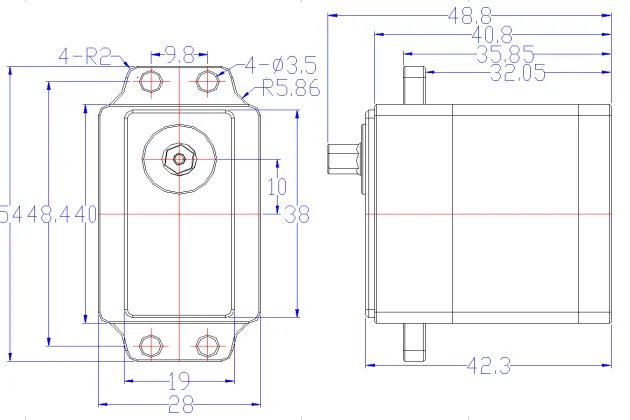

- Dimensions:54*28*48.8mm
- Color:Black
- Gear Type:Steel Gear
- Case:CNC Metal
- Motor Type:Brushless motor
- Command signal:TTL
- Feature:Magnetic Encoder
- Feedback:Load, Speed, Input Voltage,Current,Temperature
- Operating Voltage:12V
- Degree:0-360 degree

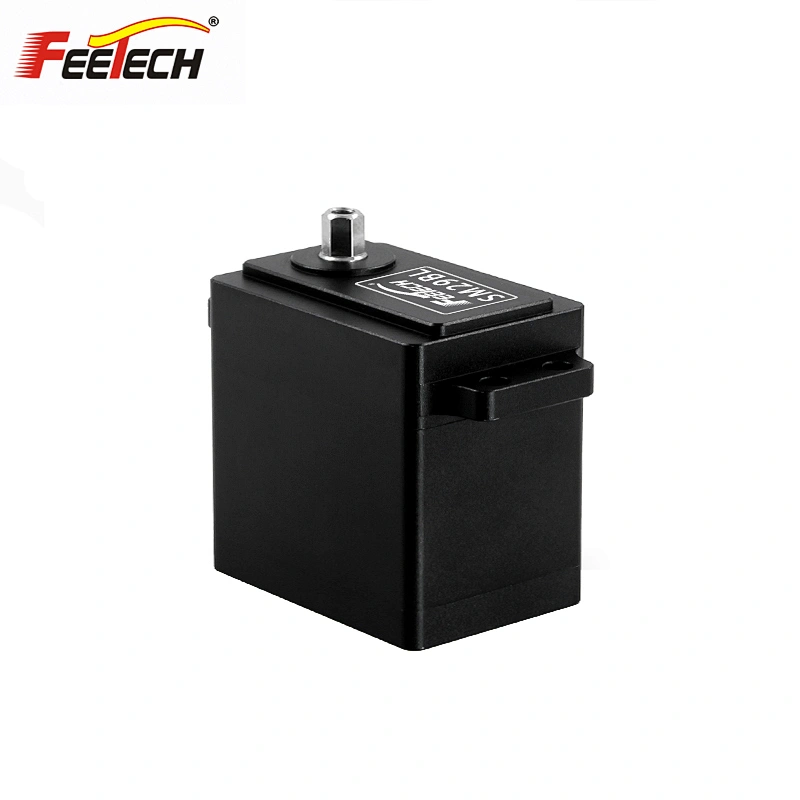

12V 110RPM 24kg cm hexagonal Shaft Brushless Servo SM29-12
Feature:
Feetech smart servo is specifically designed for applications that require a lot of strong and complex actuation,
such as humanoid robots, hexapod robots, and robotic arms.
these servos are capable of 360°continuous rotation while
still offering position control over an effective range of 360°.
They feature a TTL serial 3P interface or RS485 4P interface that is used to configure and
control the servo and get feedback about position, speed, and temperature.
Multiple servos can be daisy-chained on the same serial bus.
Specifications:
| Operating Voltage | 12V |
| Stall Torque | 24kg.cm |
| No Load Speed | 110rpm |
| Weight | 102g |
| Operating Angle | 0° ~ 360° |
| Command signal | RS485 |
| Protocol | Half duplex Asynchronous Serial Communication |
Product Details:

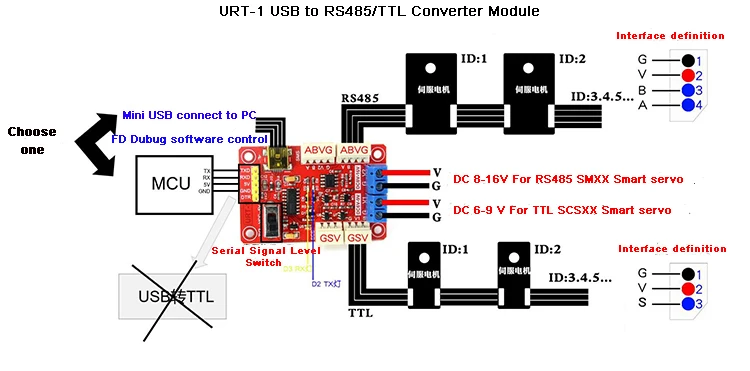

Daisy Chain Function:
The method of Feetech Smart Servo Debug Connection
Feetech Debug Software:
Position Feedback Curve:
Click Here >>>>> Contact Us To Get More Informations about FD Debug Sfotware

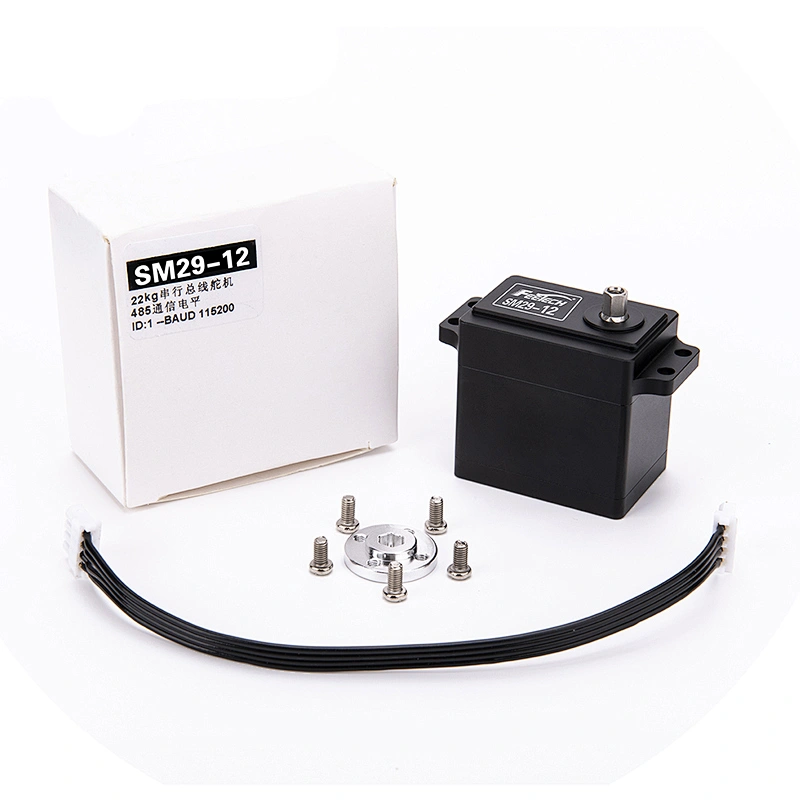

Packing:
1-PE bag (A servo + accessory)
2-Box (A servo + accessory)
2.Servo Wire:length,wire core,wire colour
3.Packing:PE Bag,Colur Box,plastic box wity your Logo
4.Cable connector:1-4 pin JR,JST,XH
5.Output Gear:
The material:Plastic,Copper,steel
Output teeth:25T Spline,hexagonal,and so on
6.CNC case:Case structure,colour
7.Electronic function More......
Q:How about your quality?A:Our quality will be good,and the goods have been checked and tested one by one before shipping.
Q:How long for the delivery once we place order?
A:The lead time is declded the item you ordered and the quantity.
For normal order,the lead time is about in 5-7 days,
If big quantity or OEM,the lead time will be some days more.
Q:The price you are offering is with shipping costs included?
A:The price does not include the shipping cost.We offer several
shipping solutions,make sure customers choose the most economical one.
Q:Do you have After-Sales Service?
A:Of course,We have special department to do it,and if you have any technology
problem,our eingeer will give your answer.
