High Quality Long Lifetime Brushless Servo Motor For Automatic Machinery SM30BL

High Quality Long Lifetime Brushless Servo Motor For Automatic Machinery SM30BL

Model NO.: SM30BL
Delivery: FOB

Quantity:

Product Description

Type:Car
Power:Battery
Material:plastic
Plastic Type:ABS
Scale:1:5
Radio Control Style:RC Hobby
Place of Origin:CN;GUA
Brand Name:Feetech
Model Number:SM30BL
Dimensions:46.5*28.5*34mm
Color:Black
Gear Type:Steel Gear
Case:CNC Metal
Motor Type:Brushless motor
Command signal:TTL
Feature:Magnetic Encoder
Feedback:Load, Speed, Input Voltage,Current,Temperature
Operating Voltage:12V
Degree:0-360 degree

High Quality Long Lifetime Brushless Servo Motor For Automatic Machinery SM30BL

SM Series Servo

Product Description

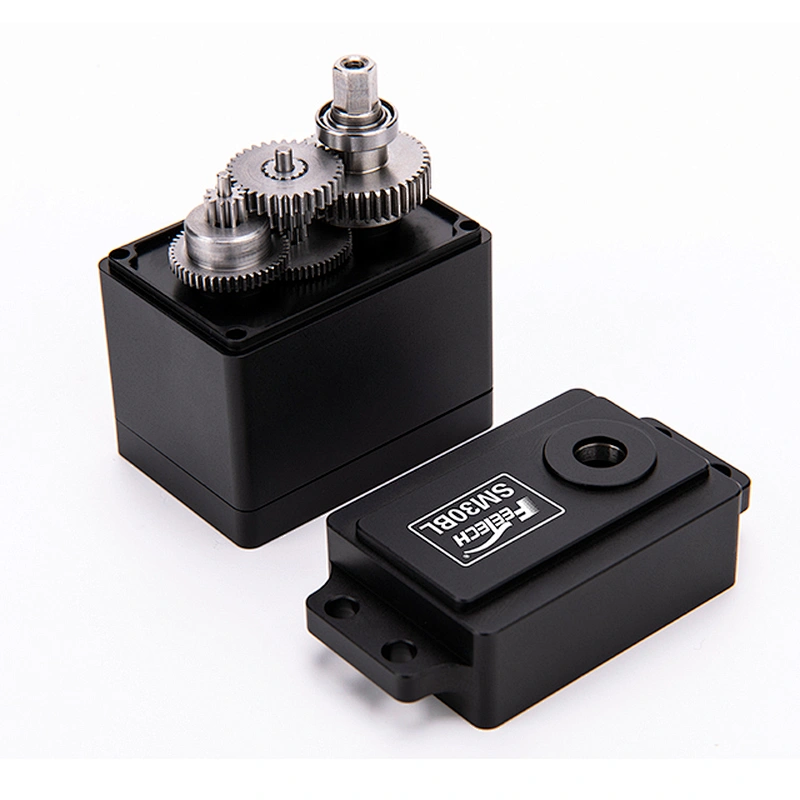

SM30BL Servo.jpg

Feature:

Feetech smart servo is specifically designed for applications that require a lot of strong and complex actuation,
such as humanoid robots, hexapod robots, and robotic arms.
these servos are capable of 360°continuous rotation while
still offering position control over an effective range of 360°.
They feature a TTL serial 3P interface or RS485 4P interface that is used to configure and
control the servo and get feedback about position, speed, and temperature.
Multiple servos can be daisy-chained on the same serial bus.

Specifications:

Operating Voltage	12V
Stall Torque	30kg.cm
No Load Speed	65rpm
Weight	96g
Operating Angle	0° ~ 360°
Command signal	RS485
Protocol	Half duplex Asynchronous Serial Communication

Product Details:

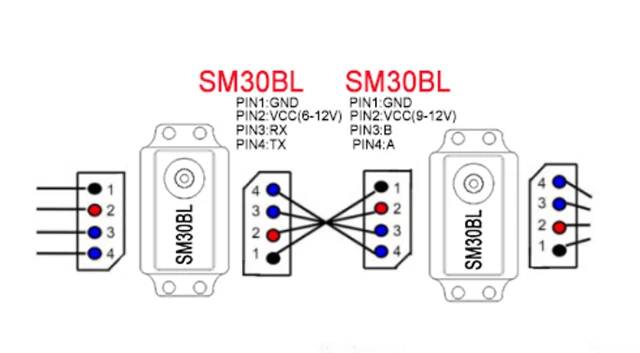

Daisy Chain Function:

Feetech Debug Software:

Position Feedback Curve:

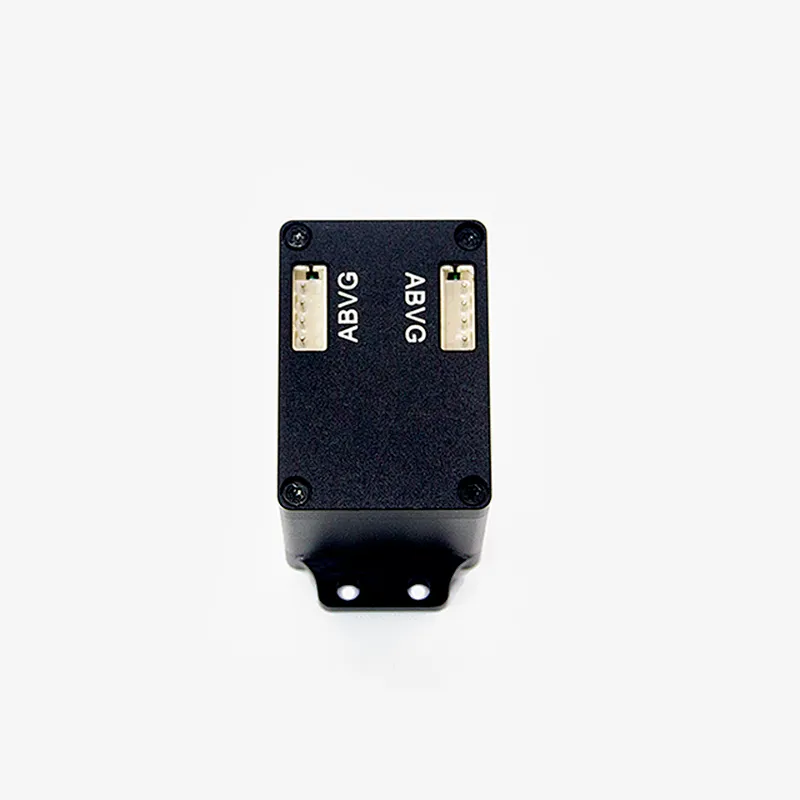

Electrical Interface:

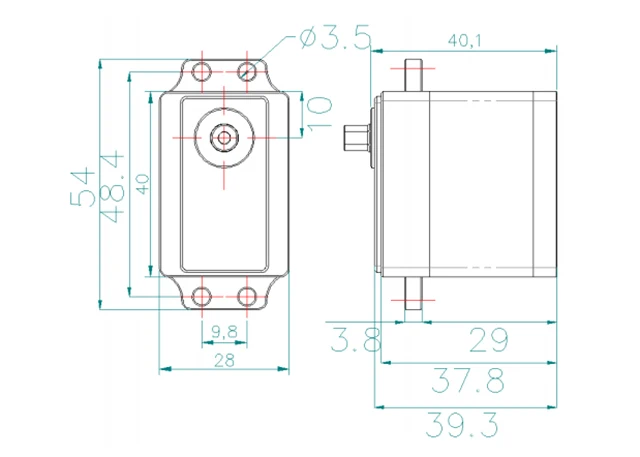

The drawing:

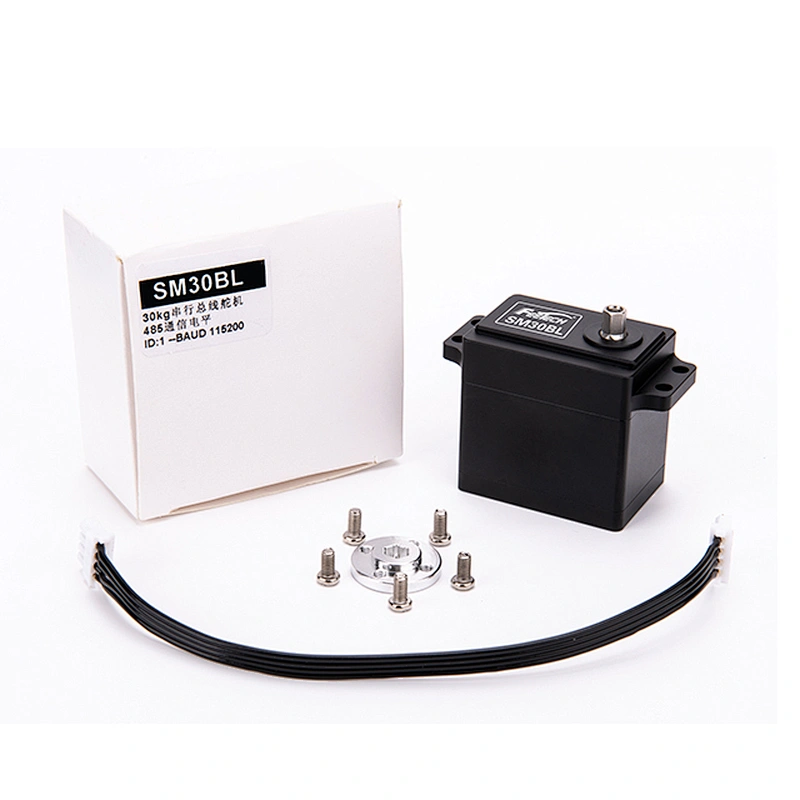

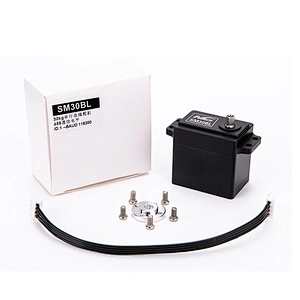

Packing:

1-PE bag (A servo + accessory)

2-Box (A servo + accessory)

30kg Smart Servo.jpg
