- Place of Origin:CN;GUA
- Usage:BOAT
- Usage:Car
- Usage:Home Appliance
- Certification:ce
- Certification:RoHS
- Type:SERVO MOTOR
- Construction:Permanent Magnet
- Commutation:Brush
- Protect Feature:Drip-proof
- Brand Name:Feetech
- Model Number:FB5317M-360
- Torque:17kg
- Speed(RPM):62RPM
- Continuous Current(A):150mA

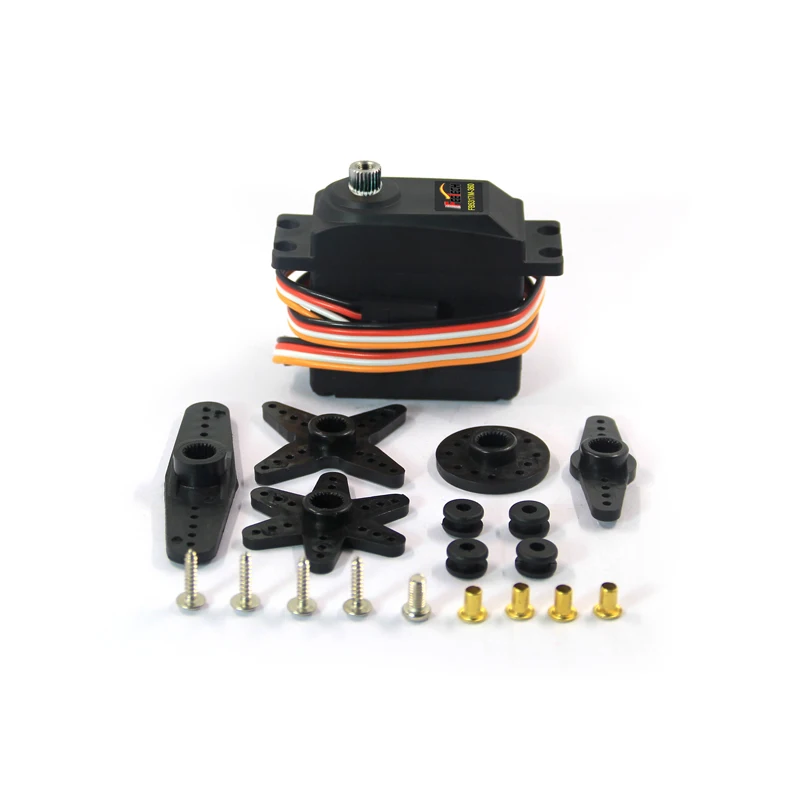

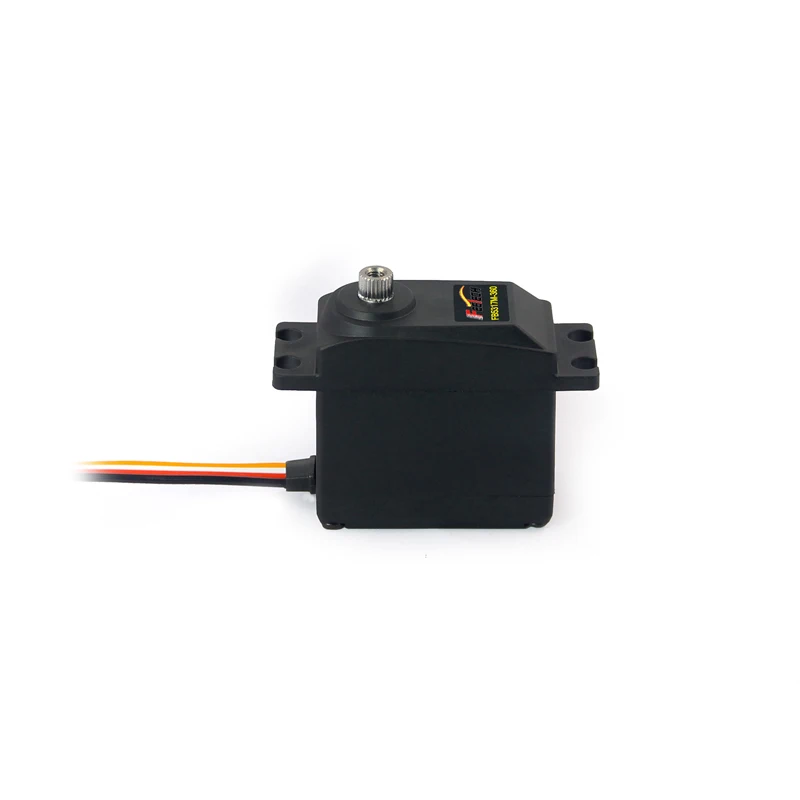

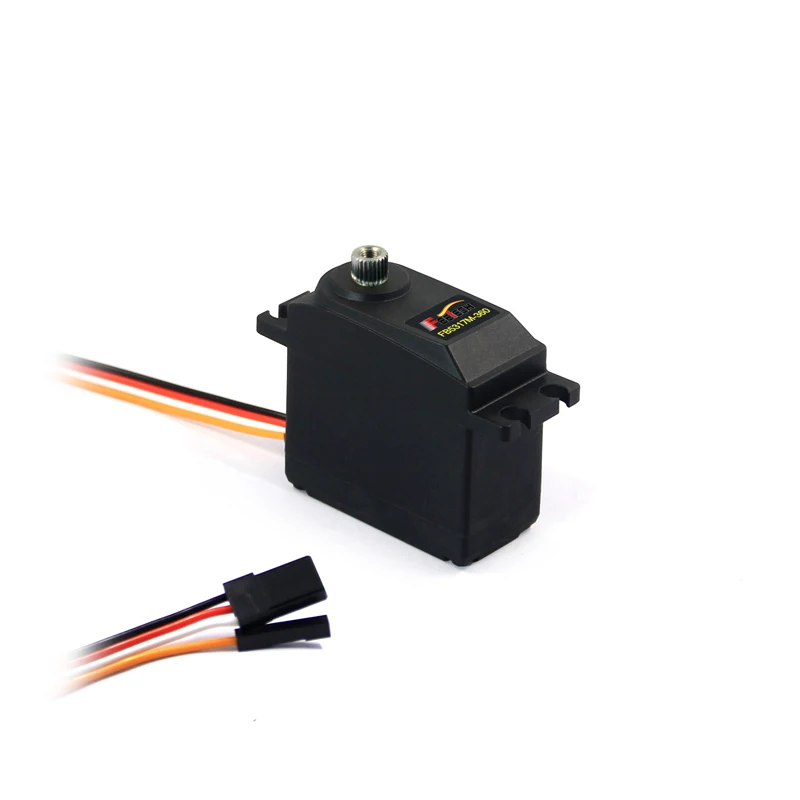

- Product Name:Feetech FB5317M-360
- Application:STEM/Smart home
- Motor type:Metal Brush
- Size:54*20*44.3mm
- Weight:65g
- Rated Voltage:6-7.4V
- Material:Plastic
- Gears:Metal
- Color:Black
Mechanical Specification
Size:A:40mm B:20.1mm C:38.3mm D:54mm
Weight:65g
Gear type:Steel Gear
Limit angle:No limit
Bearing:2 Ball bearings
Horn gear spline:25T(5.9mm)
Horn type:Plastic,POM
Case:Nylon & Fiberglass
Connector wire:300mm ±5 mm(Black ,Red,white and Yellow)
Motor:Metal brush motor
Splash water resistance:NO
Electrical Specification (Function of the Performance)
Operating Voltage Range 6V 7.4V
Idle current(at stopped) 5mA 7mA
No load speed 50RPM 62RPM
Runnig current(at no load) 130 mA 150 mA
Peak stall torque 15kg.cm 17.5kg.cm
Stall current 1500 mA 1800mA
Robot arm
Automatic lock
RC Toys
STEM
Payment Items
AliBaba Trade Assurance / Wire Transfer / MoneyGram
Western Union / PayPal / WeChat Pay / Ali Pay
Credit Card Chanels:
AliBaba Trade Assurance / PayPal
Please send us the Remittance Copy when payments done.
Shipment Items
Express: DHL / UPS / TNT / FedEx / EMS / Aramex etc....
AirPost: Post-NL / Singapore Post / ePacket / CDEK /
Hongkong Post / DHL eCommerce / PTT etc....
Normal Post: China Post etc....
Remark: Support your own account
1. What is the delivery time?
Normally, 1-5 workdays after payment; Special requirement orders, delivery time is negotiable.
2.If the products can't work after receiving it,what should I do?
We will replace new items for you at once and then we make the judgement for the issue.
3.If the products don't meet my demand after I received it,can I return it?
Yes,no problem.You can return back to us, we will refund your full payment.
4.what is the warranty?
1-3 months to replace new items for free, 1-2 years repairing free according to different products.
5.Do you accept OEM/ODM?
Yes,we do.We can produce according to your requirement.
6.Are you a manufacturer?
Yes,we are.
