- Color:Blue
- weight:67g
- motor:Core Motor
- Bearing:Ball Bearing
- stall torque:35kg
- Speed:0. 192sec/60°/7.4V
- Application:Robot arm
- Logo:Customerized
- Limit angle:No Limit
- Certificate:CE ROSH
- Certification:ce
- Gender:Unisex
- Age Range:2 to 4 Years
- Age Range:5 to 7 years
- Age Range:8 to 13 Years
- Age Range:14 Years & up
- Type:Car
- Power:Battery
- Material:Aluminum
- Plastic Type:PP
- Scale:1:10
- Radio Control Style:RC Hobby
- Place of Origin:CN;GUA
- Brand Name:Feetech
- Model Number:F5330M

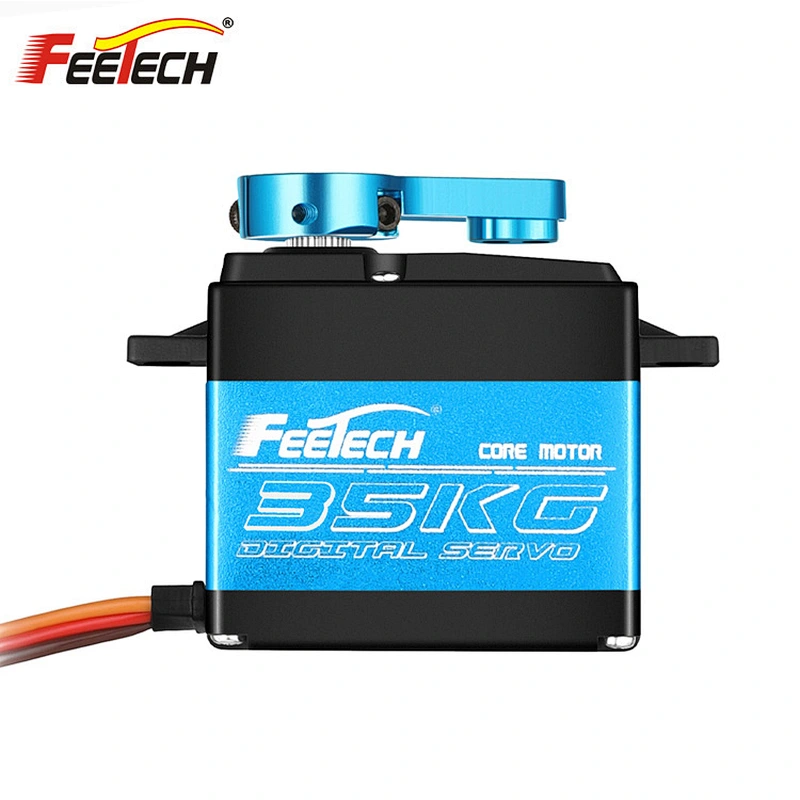

Features
This Digital servo has metal housing around the middle which allows for heat to rapidly dissipate.
With double ball bearings you will have smooth movement,
and powerful torque with a limited budget.
It is suitable for 1/10, 1/8 scale cars, robot.
With double ball bearings you will have smooth movement,
and powerful torque with a limited budget.
It is suitable for 1/10, 1/8 scale cars, robot.
High quality, long life：
After soaking in water for half an hour, our engineers took it out to test and it still worked normally

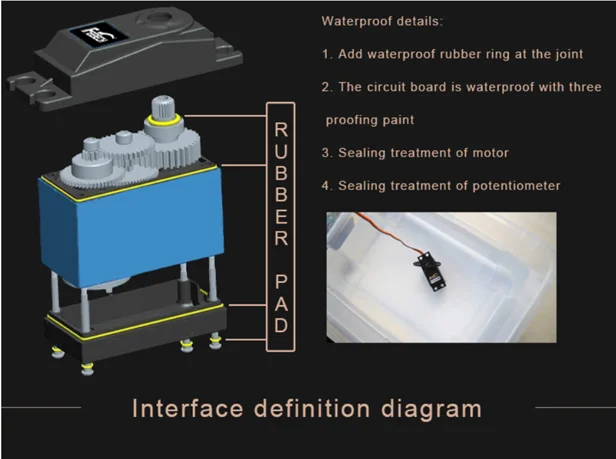

100% Waterproof ：

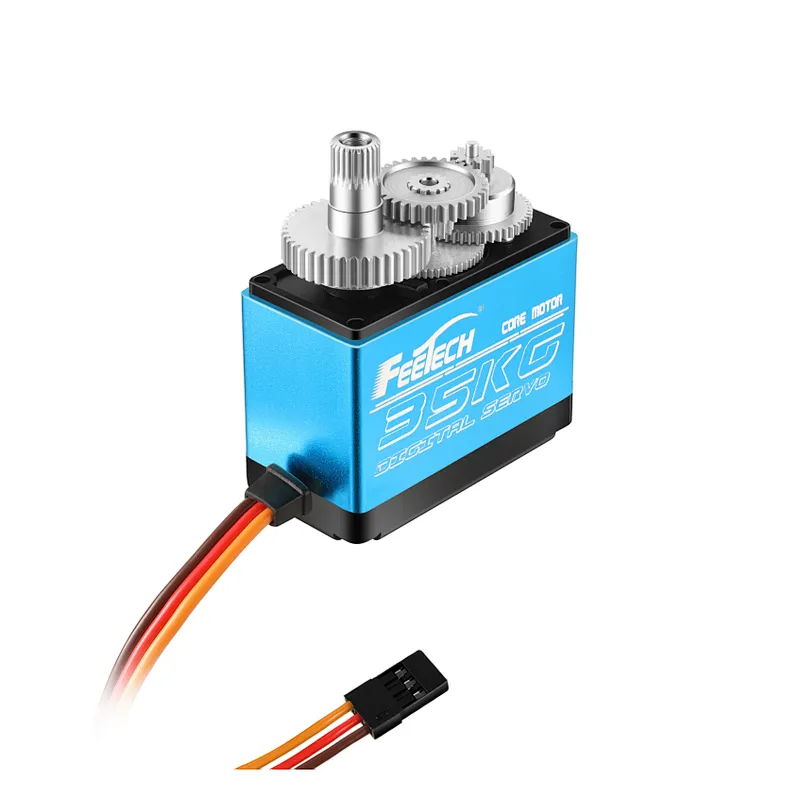

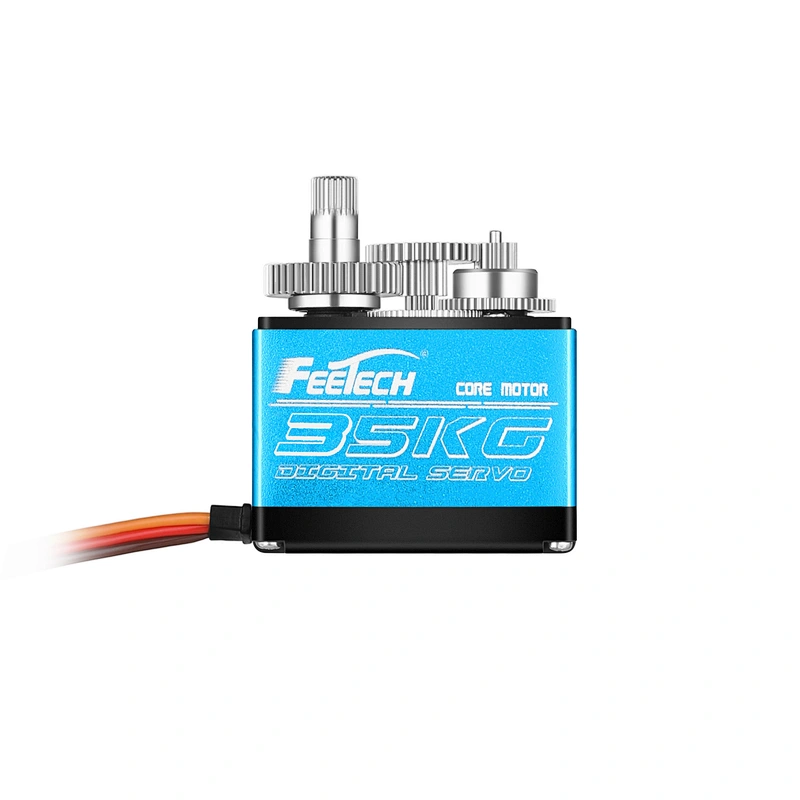

All metal servo, shell = metal, gear = metal
After soaking in water for half an hour, our engineers took it out to test and it still worked normally
100% Waterproof ：
All metal servo, shell = metal, gear = metal
Products Description
High quality, long life Waterproof
Model: FT5330M

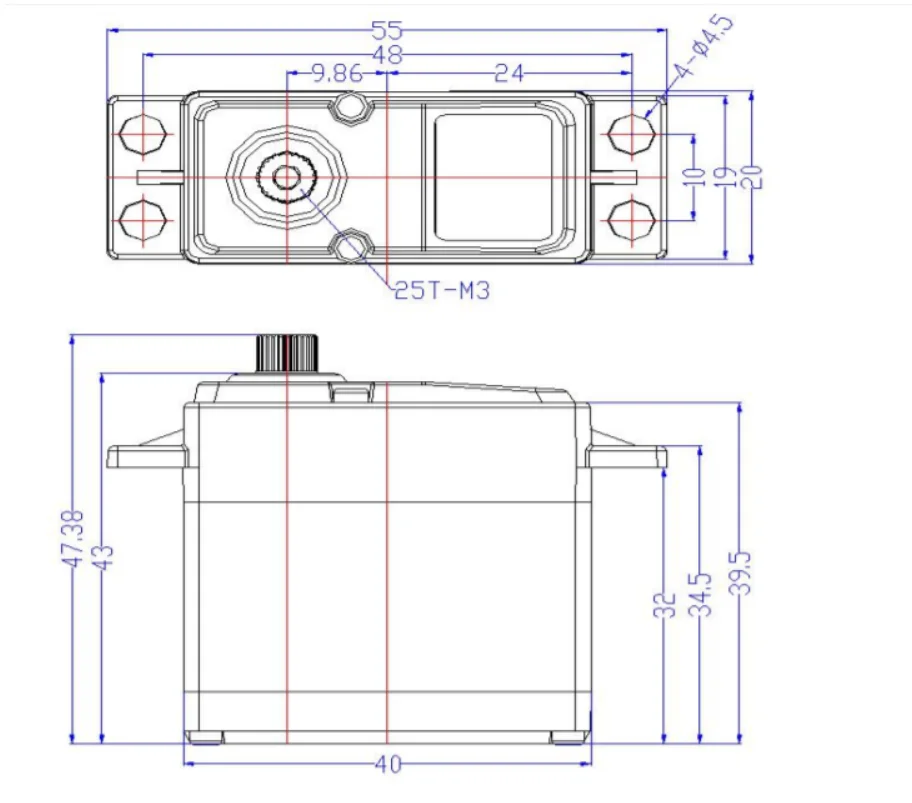

Size: 55*20*43mm Weight: 67g

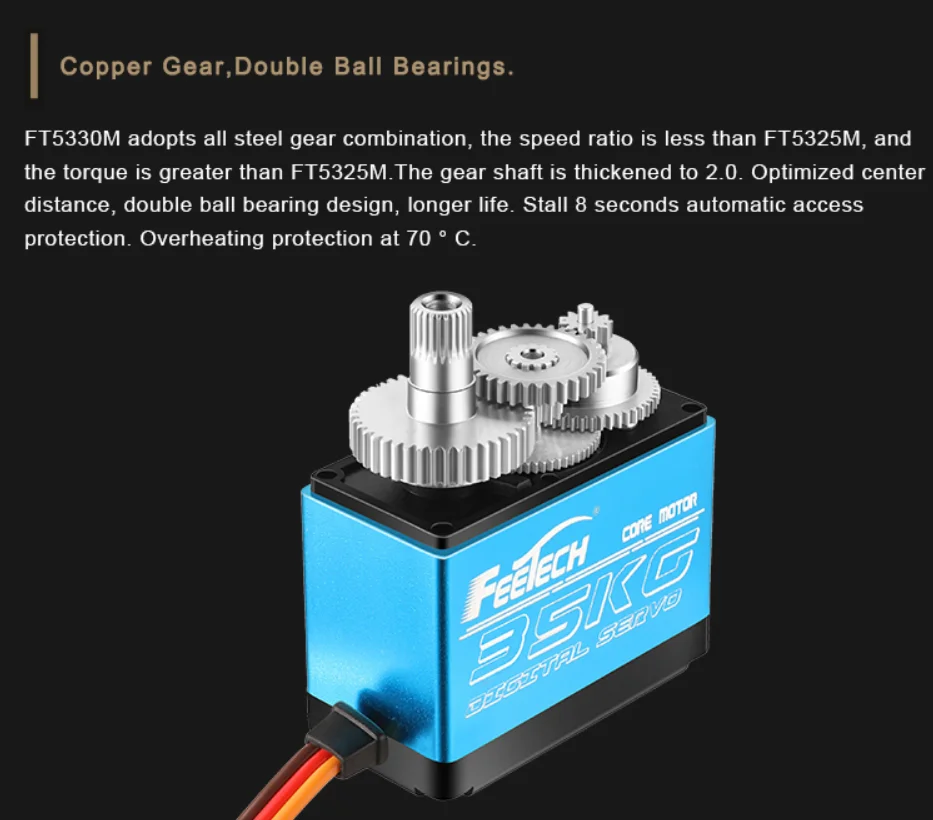

Gear type: Steel
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Horn type: Plastic,POM
Horn type: Plastic,POM
Case: PA+Aluminum
Connector wire: 30CM
Motor: Core Motor
Operating Voltage Range: 6V-7.4V
Idle current (at stopped)： .6MA@7.4V
No load speed: 0. 192sec/60°@7.4V
Running current(at no load) : 180mA@7.4V
Operating Voltage Range: 6V-7.4V
Idle current (at stopped)： .6MA@7.4V
No load speed: 0. 192sec/60°@7.4V
Running current(at no load) : 180mA@7.4V
Peak stall torque: 35.5kg.cm@7.4V
Rated torque: 11.8kg.cm@7.4V
Stall current: 3.9A@7.4V
Stall current: 3.9A@7.4V
Command signal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500~2500usec
Stop position: 1500 sec
Running degree: 220° Continuous Rotation

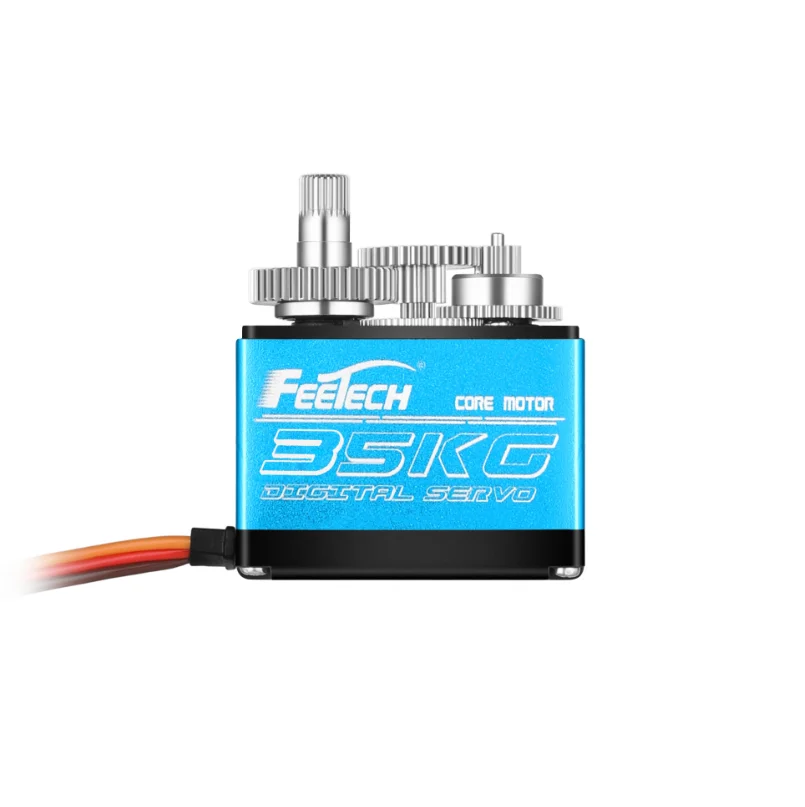

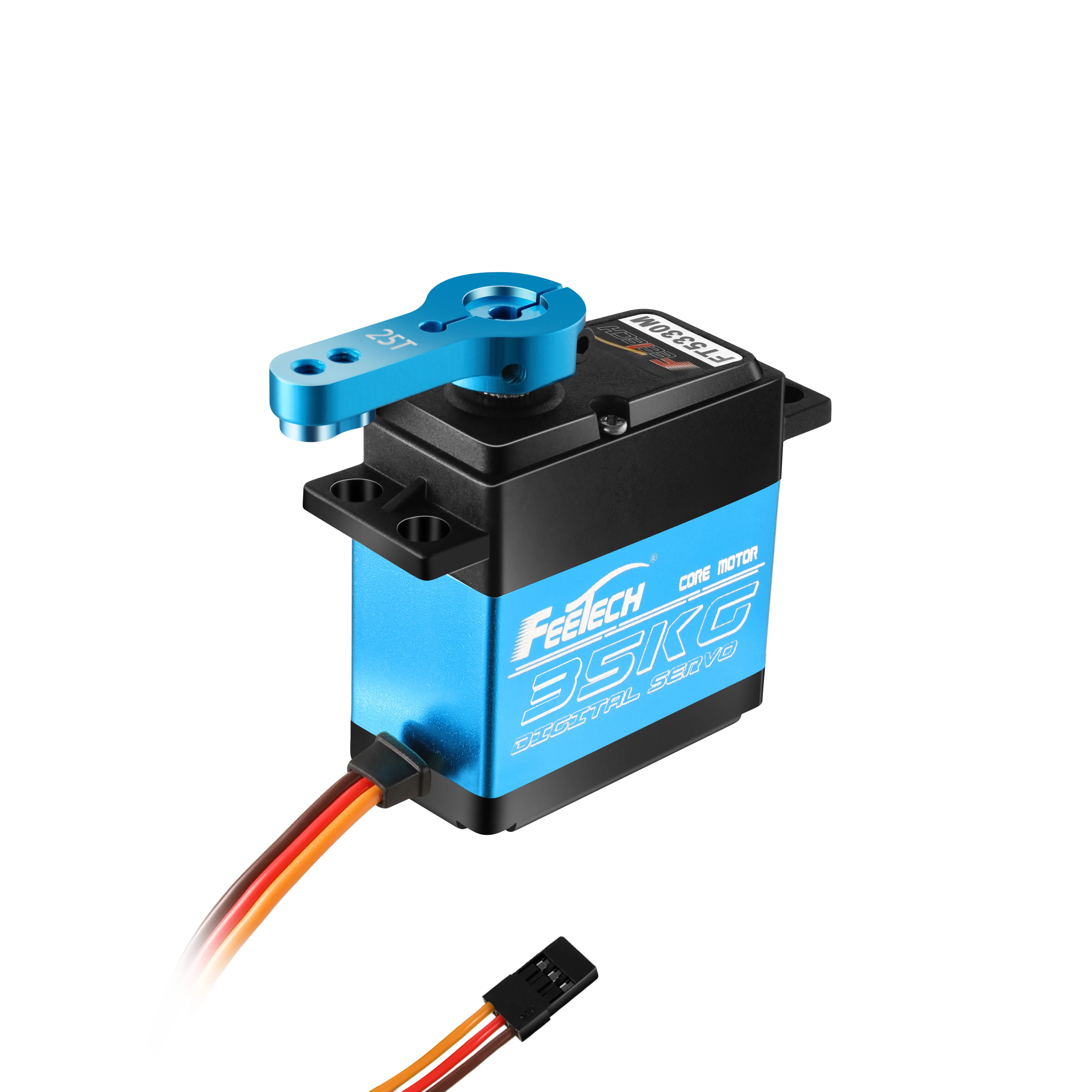

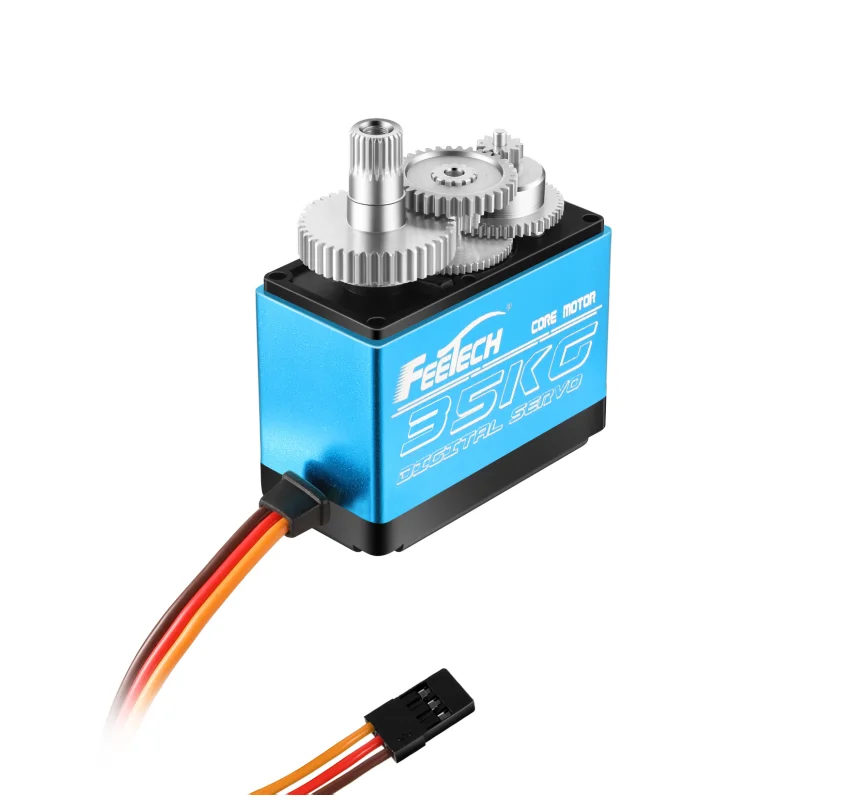

Details Images

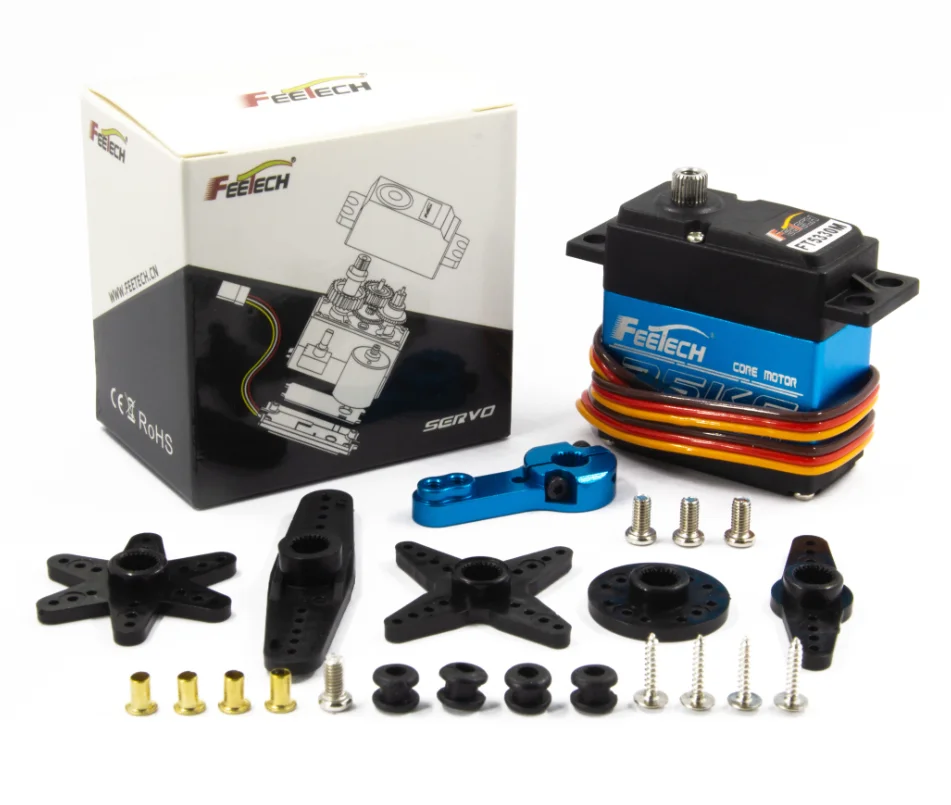

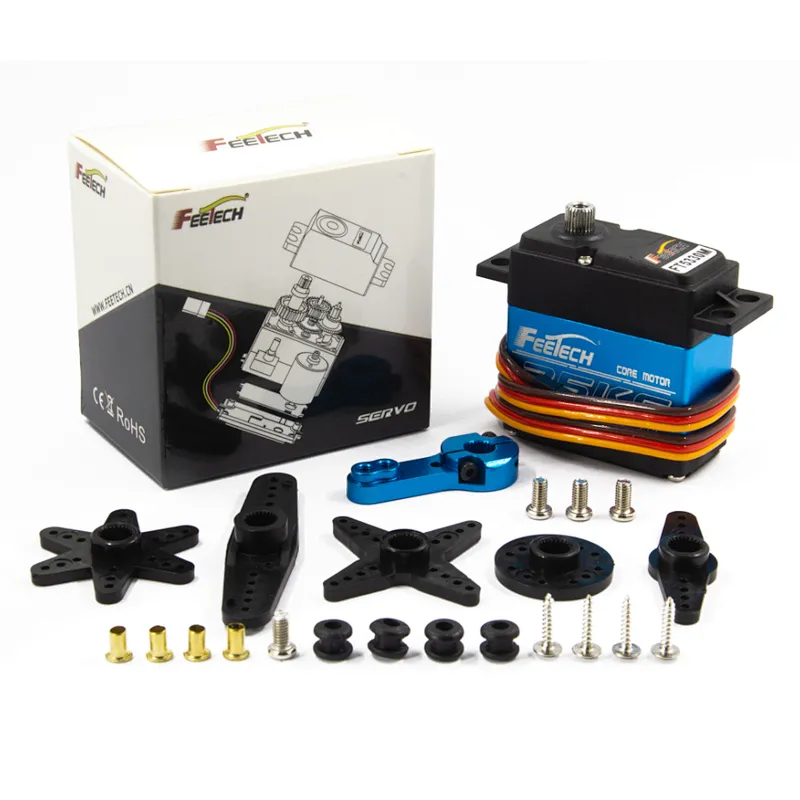

Product packaging
Selling Units: Single item
Single package size: 4*6*8 cm
Single gross weight: 0.2 kg

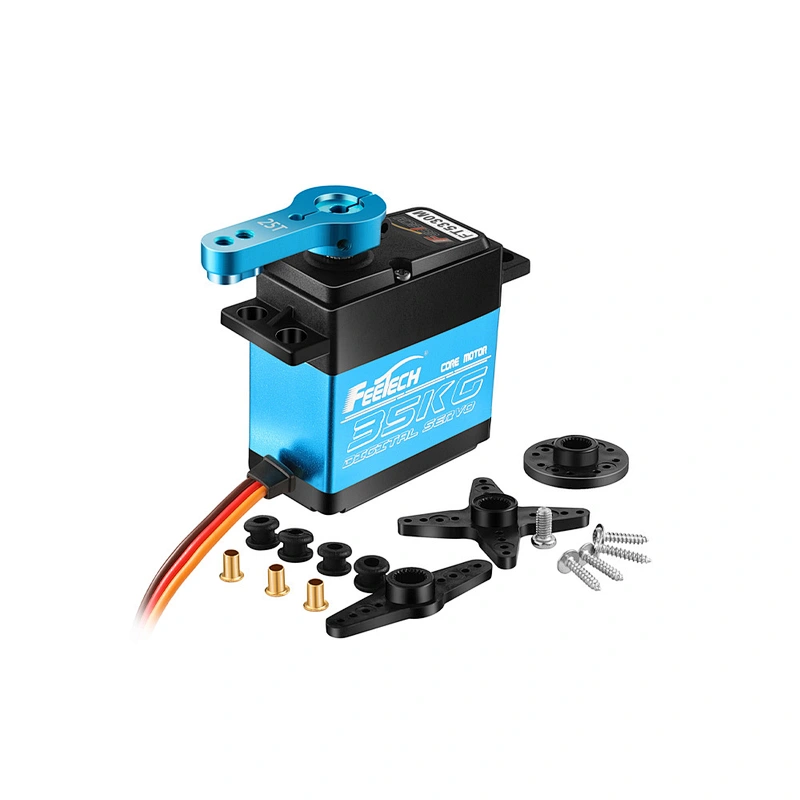

Package Type: Gift box with one bag of accessory
Application
Our Company
Shenzhen FEETECH RC Model Co., Ltd was established in 2011.
We are a research and development, customization, production and sale of high-quality servos for artificial intelligence products company.
It is committed to providing customized servo and industry solutions for enterprise users, and has been highly recognized and widely adopted by the partners.
Feetech make arduous efforts to promote the artificial intelligence industry development . The brand of “FEETECH” is based on the concepts of Flying, Excellent, Efficient and Technology.
We look forward to working with you to build a better future together!
Contact Us
If the servo does not match your requirements , please do not hesitate to contact with us, we have hundreds of servos for optional, and we are professional servo manufacturer since 2011, customizing servo as per requirements is our advantage.
Our Services & Strength
1.Your Logo label or print
2.Servo Wire:length,wire core,wire color.3.Packing:PE Bag,Color Box,plastic box with your Logo
4.Cable connector:1-4 pin JR,JST, XH
5.Output Gear:
The material:Plastic,Copper,steel,aluminium.
Output teeth:25 T Spline,hexagonal,and so on
6.CNC case:Case structure,color
7.Electronic function More......
FAQ
1. How can I know the product is suitable for me?
First, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
2.The price you are offering is with shipping costs included?
The price does not include the shipping cost.We offer several shipping solutions,make sure customers choose the most economical one.
The price does not include the shipping cost.We offer several shipping solutions,make sure customers choose the most economical one.
3. Can I come to your company to visit?
YES, you can come to our company to visit at anytime, and welcome to visit our company.
4.what can you buy from us ?
We are specialized in servos,manufacturing various kinds of servos:programmable servo, robotic servo, digital servo,analog servo,485 S-bus intellegent servo etc.
We are specialized in servos,manufacturing various kinds of servos:programmable servo, robotic servo, digital servo,analog servo,485 S-bus intellegent servo etc.
5. How do contact us ?
Please send an inquiry .
Quality Control:
To guarantee our quality, our QC will inspect the goods from the following steps:
1. Raw materials, to control the quality from the source.
2. Semi-finished products.
3. Before package, our QC will inspect the 100% goods .
To guarantee our quality, our QC will inspect the goods from the following steps:
1. Raw materials, to control the quality from the source.
2. Semi-finished products.
3. Before package, our QC will inspect the 100% goods .
