- Use:Vehicles & Remote Control Toys
- Model Number:FI7635M
- Stall torque:35KG
- Color:blue
- gear:Steel
- type:1/5 rc car steering servo
- APPLY:RC Model/RC Robot/arduino
- size:Standard
- Motor:coreless
- OEM & ODM:yes
- Type:1/5 rc car steering servo
- Place of Origin:CN;GUA
- Brand Name:FITEC/FEETECH
- Model Number:FI7635M
30kg Torque Digital 1/5 Rc Car Steering Servo
Feetech Fi7635M 35KG Coreless Digital Servo Motor 7.4V High Voltage Stainless Steel Gear High Torque Waterproof Standard Baja Servos 180 Degrees
- Best RC servo upgrades, ideal for 1:10/1:8/1:5 robot or r/c crawlers
- Operating speed:0.07sec/60°; Stall torque: 35kg-cm (at 7.4V)
- Coreless motor-driven provides high speed, incredible efficiency, and low power consumption

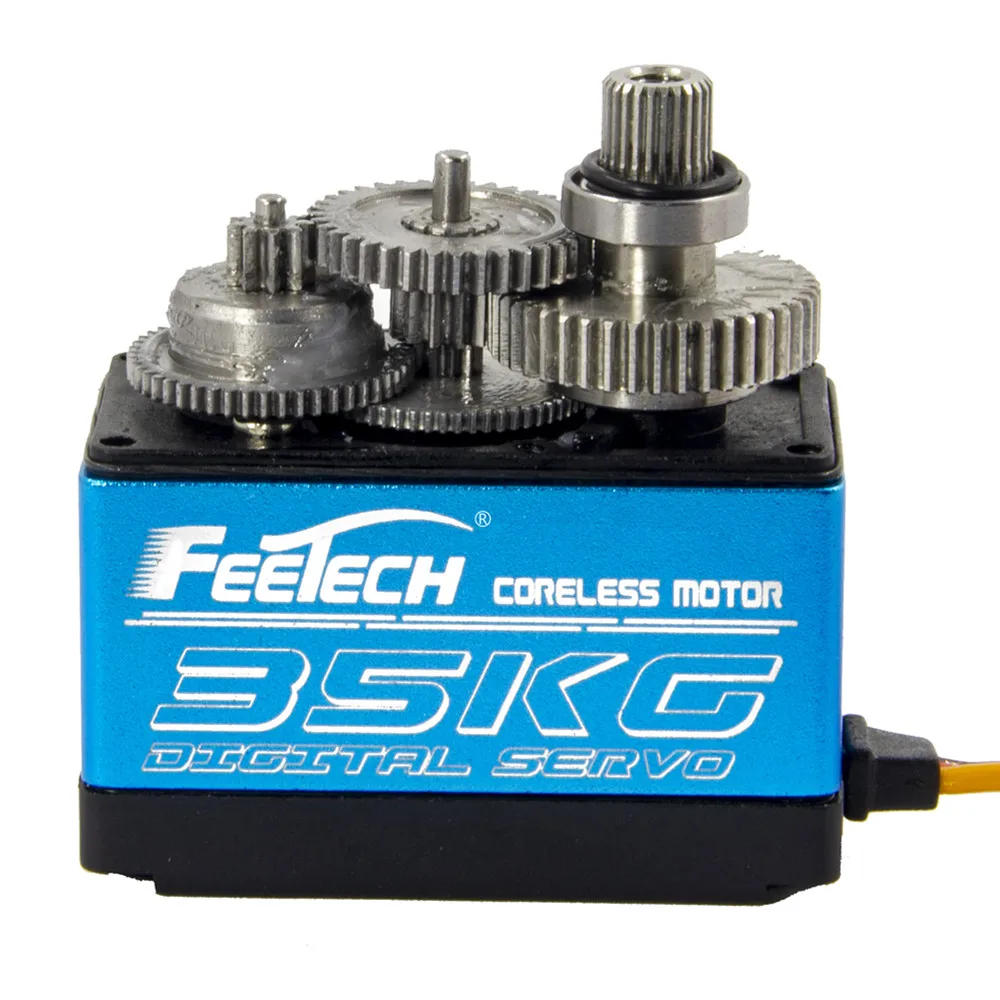

- IP66 waterproof performance for worry-free operation; extremely strong unique stainless steel & Aluminum gears ensure long life and durability
- Super light-weight, small size but strong.Dimensions: 40x20x38.5mm, Weight: 60g
Features:
Electrical Specification:
Operating voltage range: 5-7.4V
Operating speed ( 5.0V ): 0.1 3sec/60 degree
Operating speed ( 6.0V ): 0.12 sec/60 degree
Operating speed ( 7.4V ): 0.11 sec/60 degree
Stall torque ( 5.0V ): 29kg/cm
Stall torque ( 6.0V ): 32kg/cm
Stall torque ( 7.4V ): 35kg/cm
Control Specification:
Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 μsec
Neutral position: 1500μsec
Running degree: 180 degrees (when 500~2500 μsec)
Dead band width: 3 μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 μsec)
Mechanical Specification:
Gear ratio: 373
Bearing: Double bearing
Connector wire: 17.7inches(450mm)
Motor: 3-pole(s)
Waterproof performance: IP66
Package:
1 x FI7635M Coreless Servo
1 x 25T Adjustable metal servo arm
One set of accessories
Other options:
25KG Coreless servo 180 Degree, please search FT5325M
20KG Control Angle 270 Degree, please search FT5320M
25KG Control Angle 180 Degree, please search FT5325M
20kg Control Angle 180 Degree(PRO Version), FT5320M
60kg Control Angle 270 Degree, Please search FT6560M
Picture:

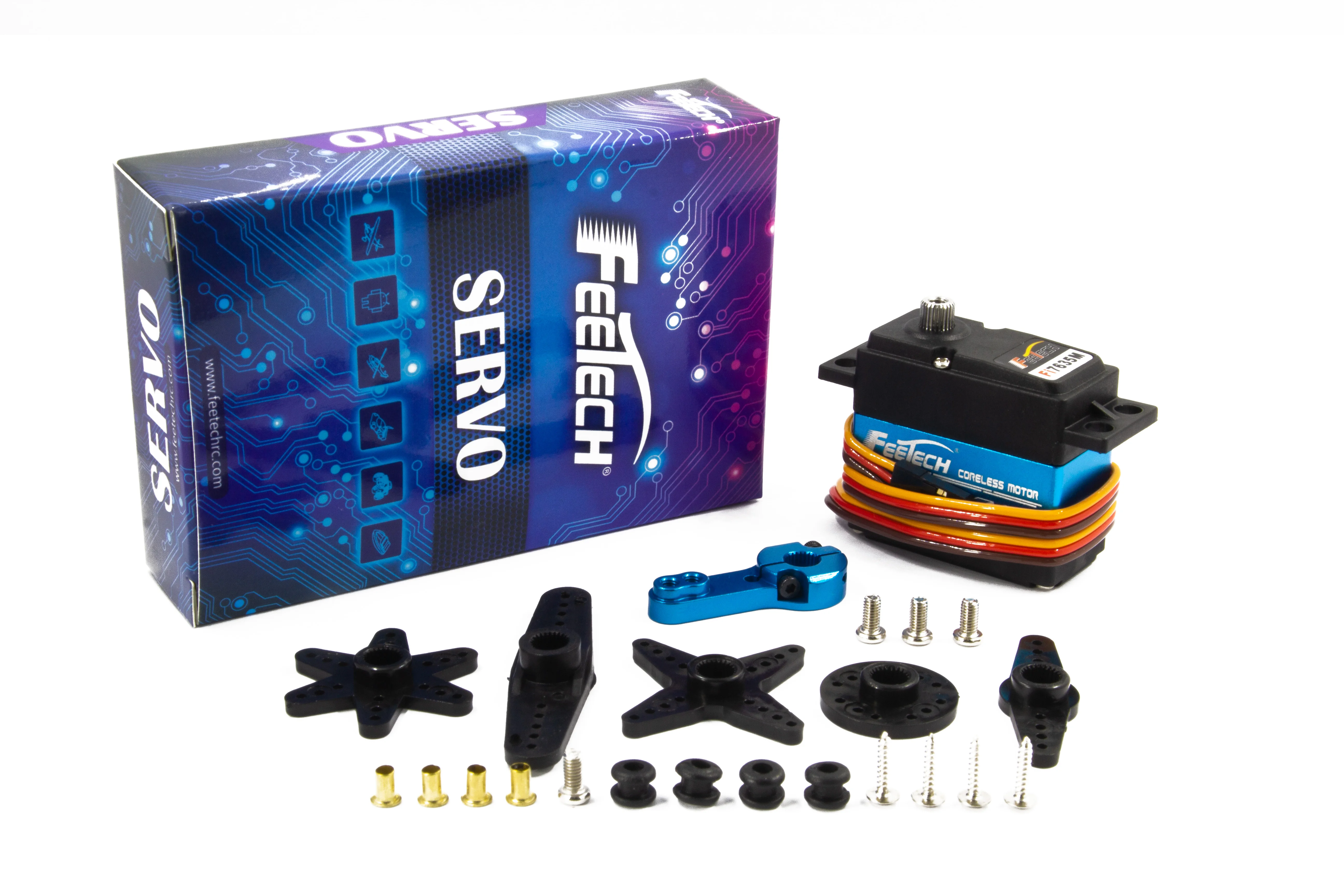

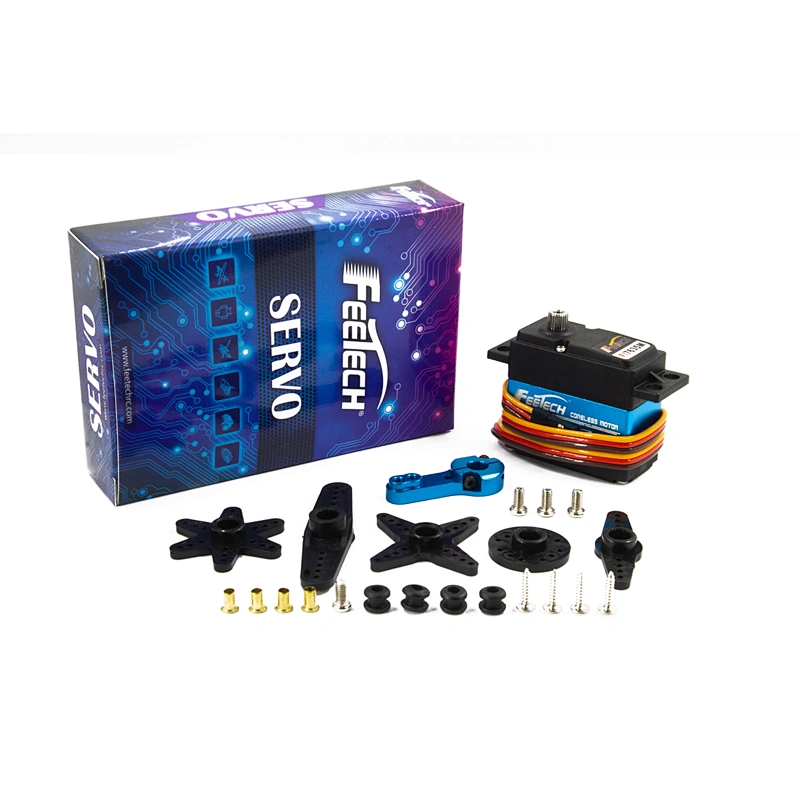

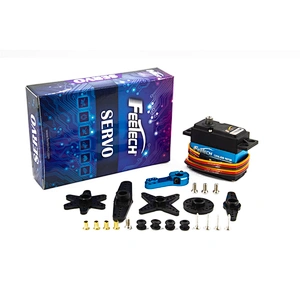

Full Packaged
-Servo×1PCS
-Servo arm×1 bag
-GW:85g
