- Place of Origin:CN;GUA
- Type:servo continuous rotation
- Brand Name:FITEC/FEETECH
- Model Number:FT5303B
- Use:Vehicles & Remote Control Toys
- Model Number:FT5303B
- Stall torque:3KG
- Color:black
- item:Arduino control servo
- type:robot servo
- gear:plastic
- control system:DIGITAL
- rotation:180 degree servo
- PRICE:CHEAP

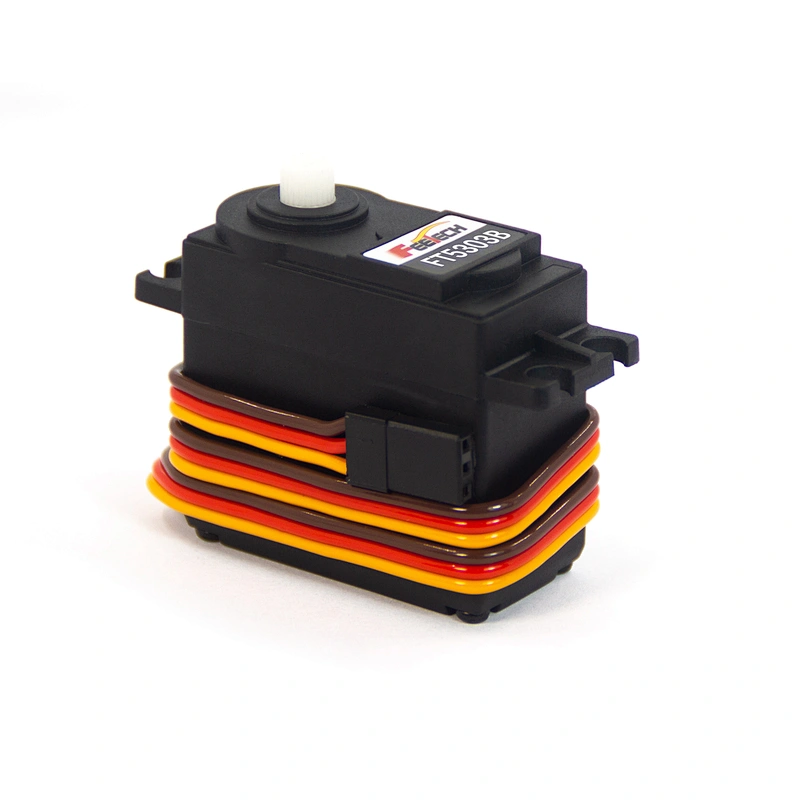

FT5303B Digital 6V 3kg Torque 180 Degree Rotation Servo
1.robot servo
2.Best choice for arduino robot
3.Accessories attached
4.ROHS CE
Feature:
FT5303B is upgraded in the original FS5103B analog servo shape. The structure uses high-quality nylon and fibre raw materials to improve the stability of the shell and precisely match with POM gears to achieve smooth rotation.
The biggest improvement of FT5303B is that it adopts precise control system and can work at low to 3V power supply voltage without losing the stability and smoothness of control operation.FT5303B ultra-low operating voltage performance, can use a lithium battery direct power supply, the servo can conveniently used in STEM application scenario.

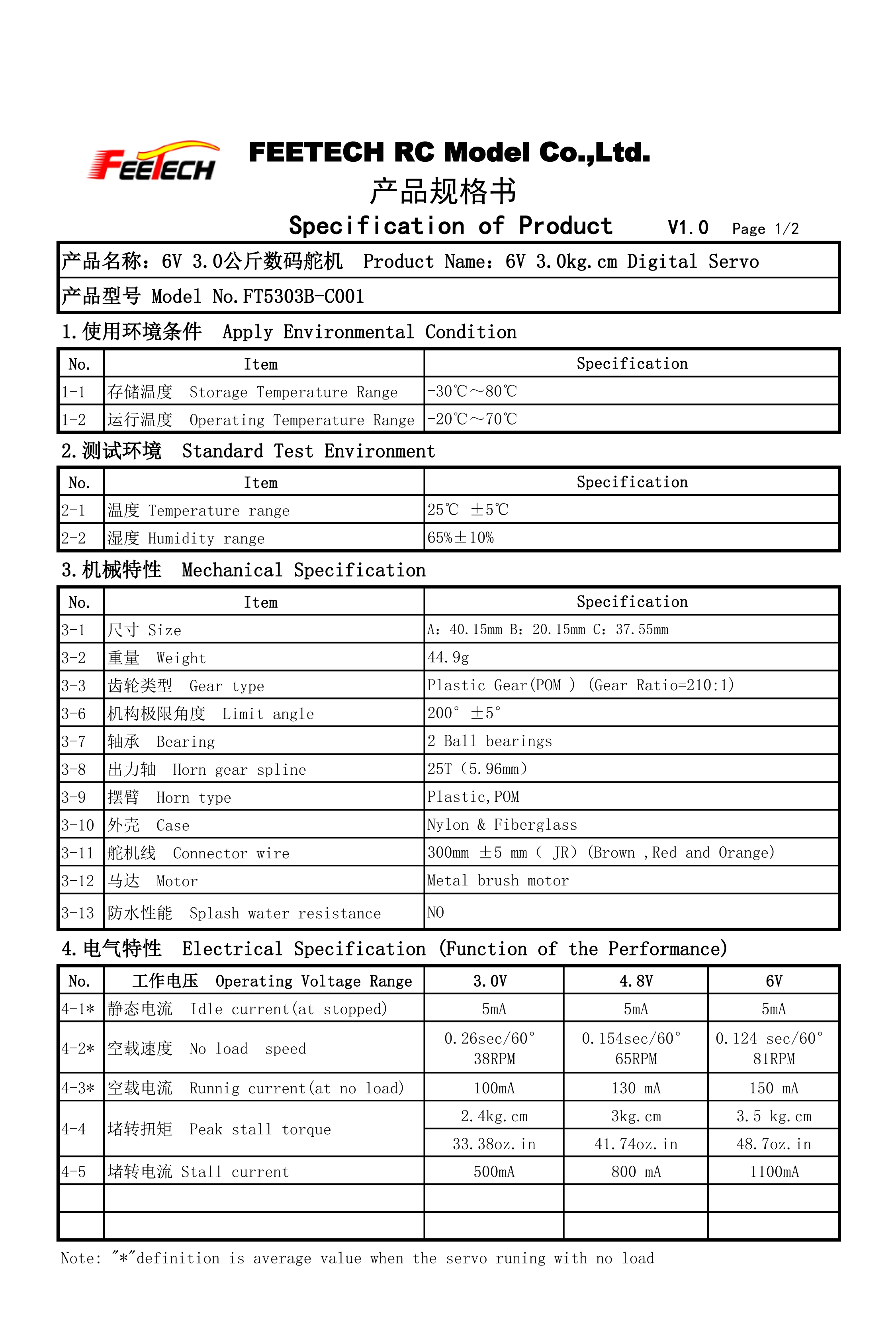

Specification:
FITEC | SIZE | WEIGHT | SPEED | Stall Torque | |||
SKU | (LxWxH) | g | oz | sec/60° | kg.cm | oz.in | |
FT5303B | 40.8x20.1x38 | 36 | 1.27 | 0.18(4.8V) | 3(4.8V) | 41.74(4.8V) | |
Direction :CCW
Operating Angle :360degree
Required Pulse :500us-2500us
Bearing Type :2BB
Gear Type :Plastic
Motor Type :Metal
Connector Wire Length :30 cm
Generating signals every 20ms, with1.5ms high time,the servo will stop move, if not, please changing the 0-Point setting of the servo let it stop to move.
After that,
Generating signals every 20ms, with1.0ms high time,the servo will move CW rotation.
Generating signals every 20ms, with2.0ms high time,the servo will move CCW rotation.

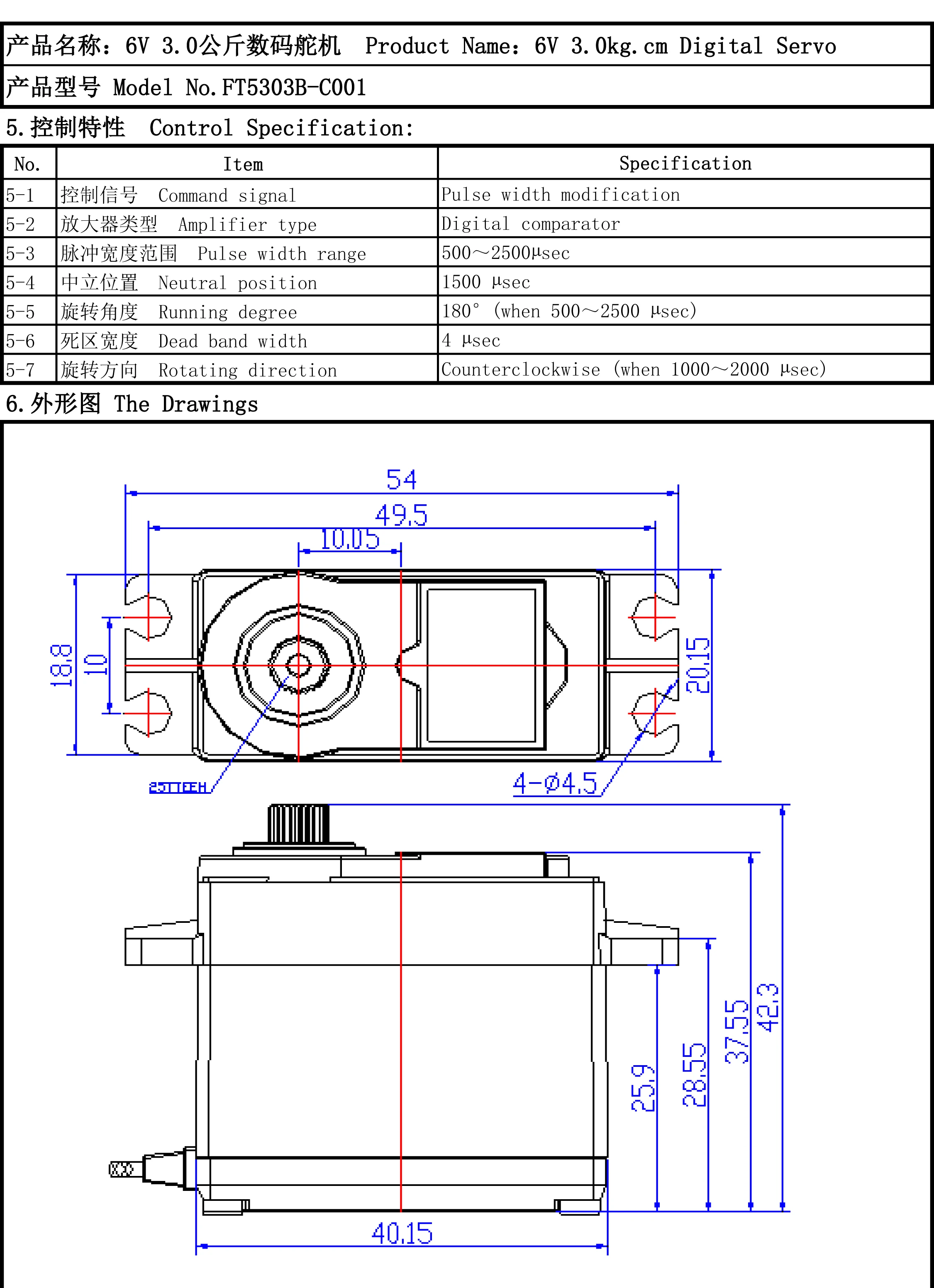

The Drawings:
Send Inquiry Here To Get A Sample!!!

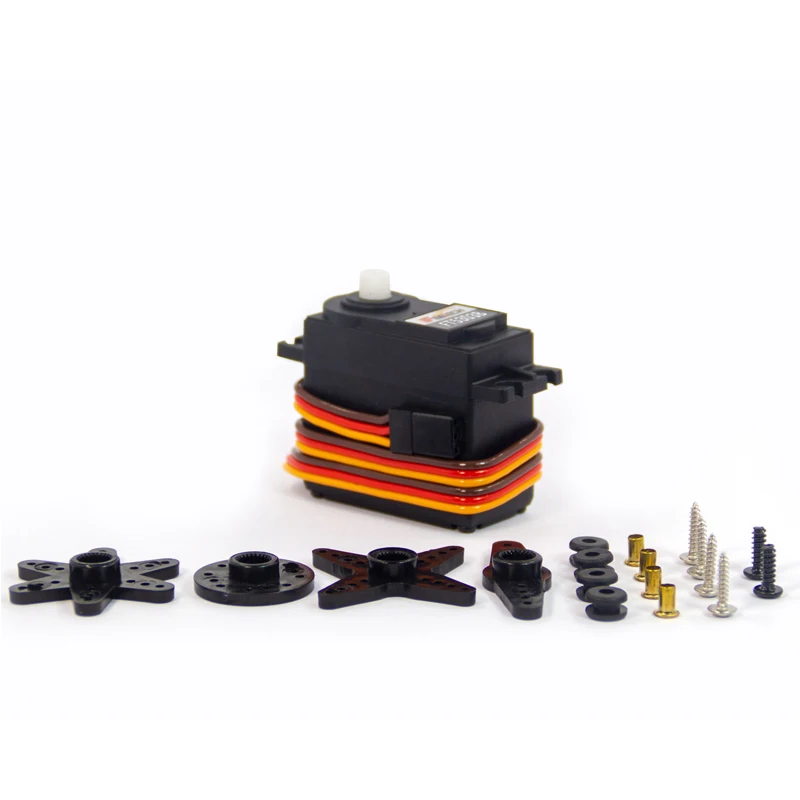

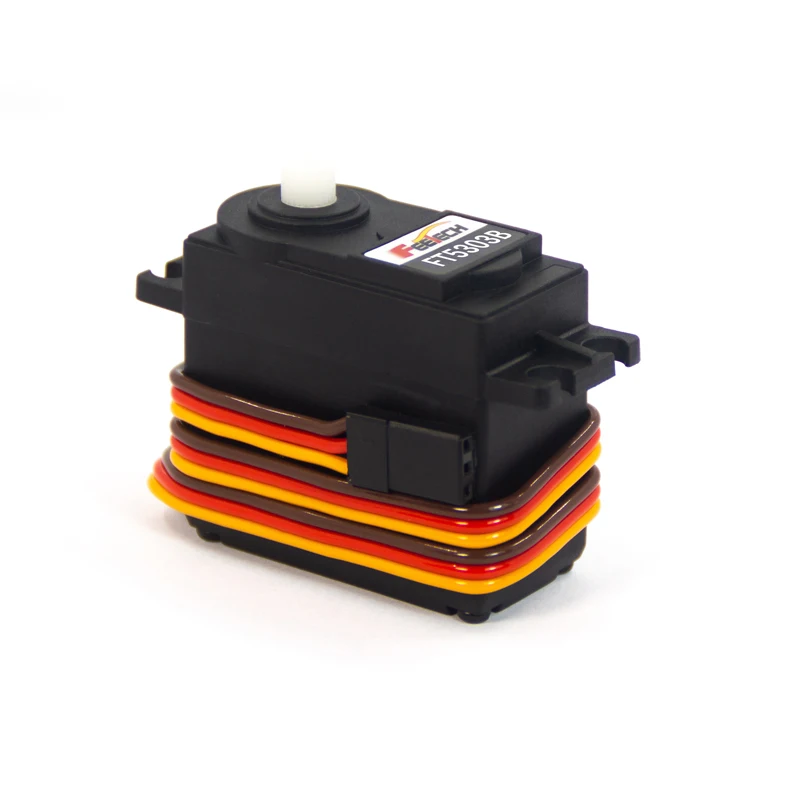

Picture:
Send Inquiry Here To Get A Sample!!!
Packing:
1-PE bag (A servo + accessory)
2-Box (A servo + accessory)
Send Inquiry Here To Get A Sample!!!
