- Power:Battery
- Material:plastic
- Scale:1:16
- Place of Origin:CN;GUA
- Type:Robot
- Plastic Type:Other
- Brand Name:Feetech
- Model Number:FT90B
- Style:Radio Control Toy
- color:Blue
- servo type:9g Micro servo
- Operating Voltage ::3-5V
- Control System ::Digital
- Direction ::CCW
- Operating Angle ::0-180 Degree
- Required Pulse ::500us-2100us
- Gear Type ::Plastic
- Motor Type ::Metal

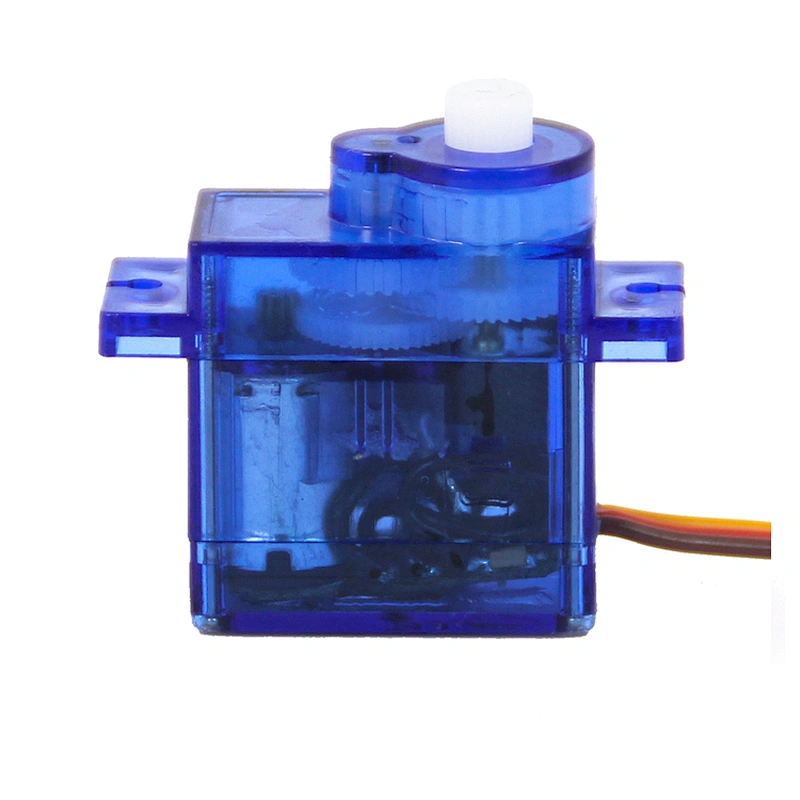

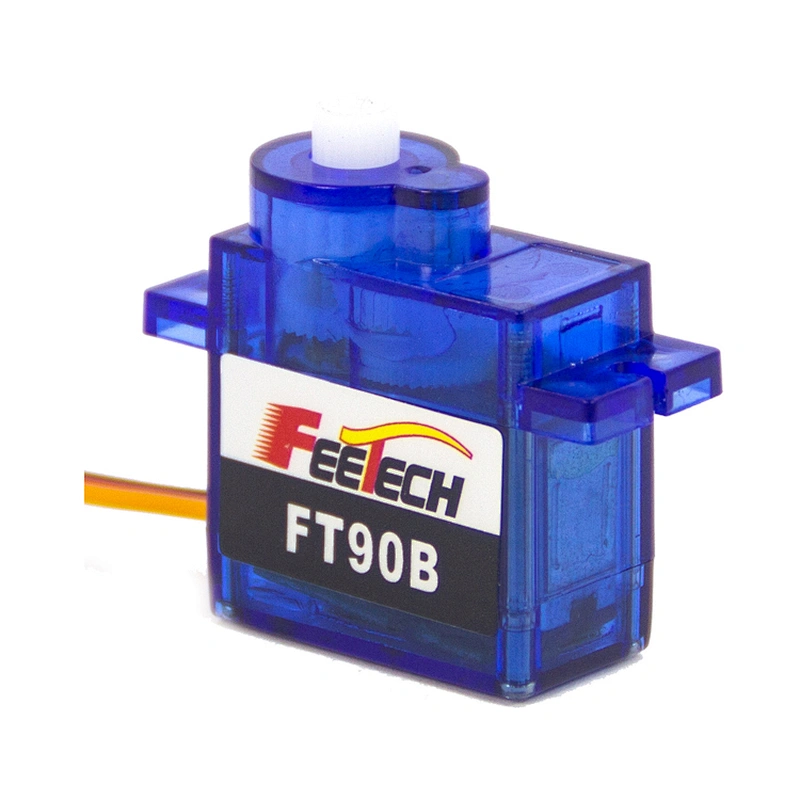

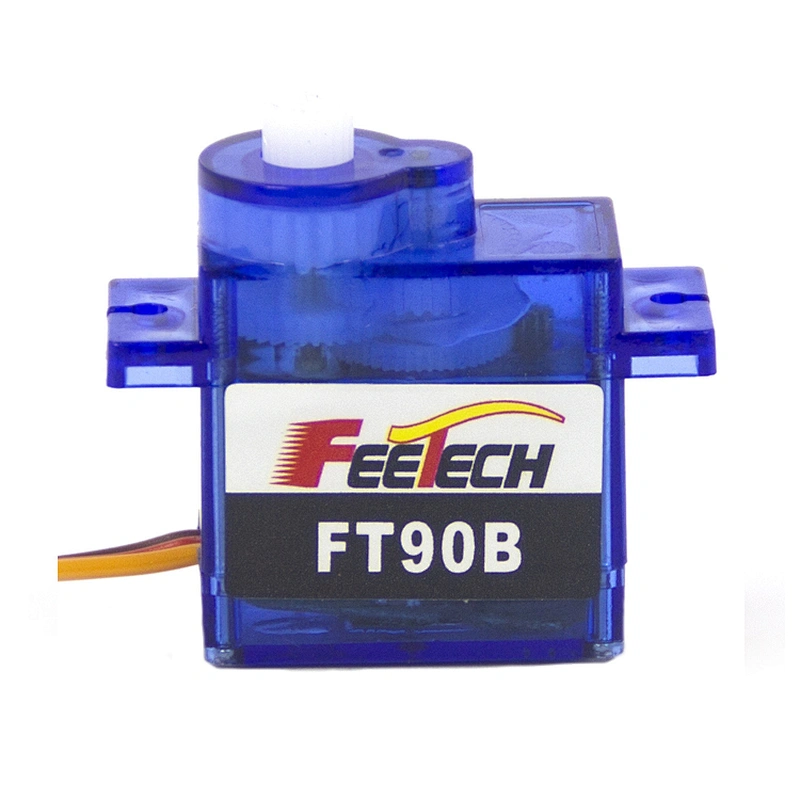

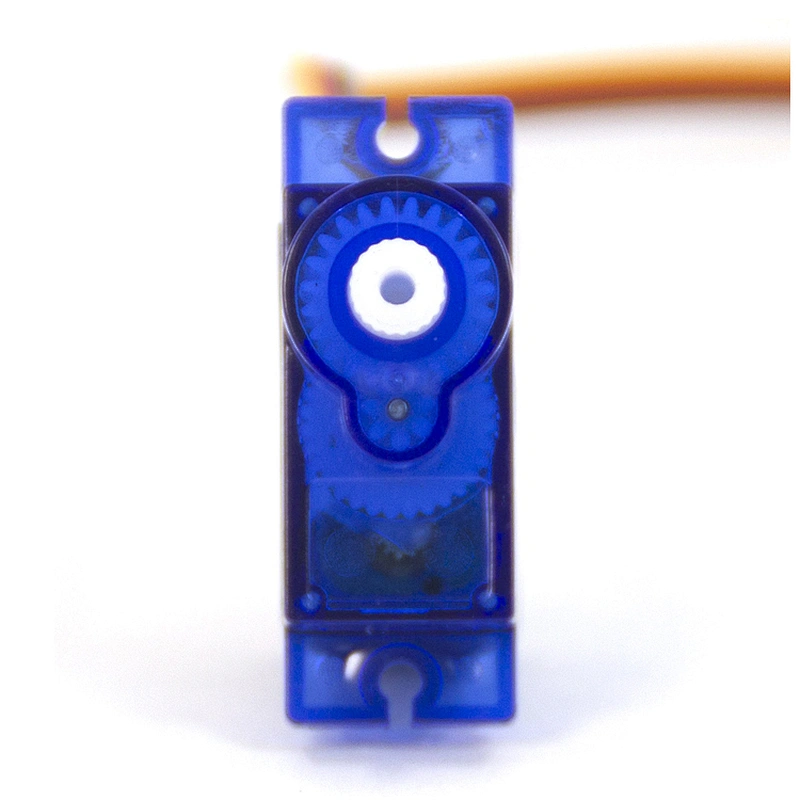

9g RC Micro 3V-5V 3.0V 3V 0-180 Degree Rotation Servo Plastic Gears FT90B
Features:
This is a great general-purpose actuator for tiny mechanisms.
FT90B is is fully designed to be compatible with 3V electronics.
that offers position control over an approximate 180° operating angle
for servo pulses between 500 µs and 2500 µs.
which makes it a great miniature actuator for beginner robotics projects,
ideal for use with micro-controller systems like the BBC microbit.
| Mechanical Specification | |||
| No. | Item | Specification | |
| 3-1 | Size | A:22.5mm B:12.1mm C:22.4mm | |
| 3-2 | Weight | 9g | |
| 3-3 | Gear type | Plastic Gear | |
| 3-6 | Limit angle | 180degree | |
| 3-7 | Bearing | NO Ball bearings | |
| 3-8 | Horn gear spline | 21T(4.86) | |
| 3-9 | Horn type | Plastic,POM | |
| 3-10 | Case | ABS | |
| 3-11 | Connector wire | 250mm ±5 mm( JR) | |
| 3-12 | Motor | Metal brush motor | |
| 3-13 | Splash water resistance | NO | |
| Electrical Specification (Function of the Performance) | |||
| No. | Operating Voltage Range | 3.0V | 4.8V |
| 4-1* | Idle current(at stopped) | 4mA | 5mA |
| 4-2* | No load speed | 0.16sec/60degree | 0.12sec/60degree |
| 4-3* | Runnig current(at no load) | 75mA | 100 mA |
| 4-4 | Peak stall torque | 1.0kg.cm | 1.3kg.cm |
| 13.92oz.in | 18.09oz.in | ||
| 4-5 | Stall current | 400mA | 700 mA |
Picture:
The Drawings:

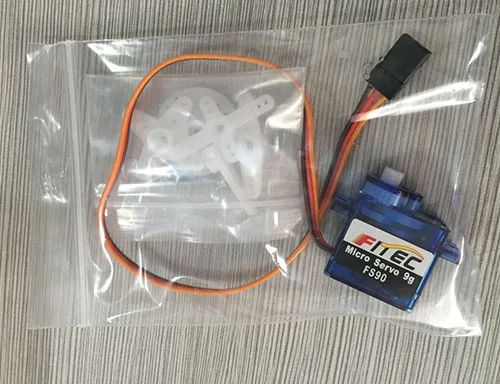

Packing:
1-PE bag (A servo + accessory)
2-Box (A servo + accessory)

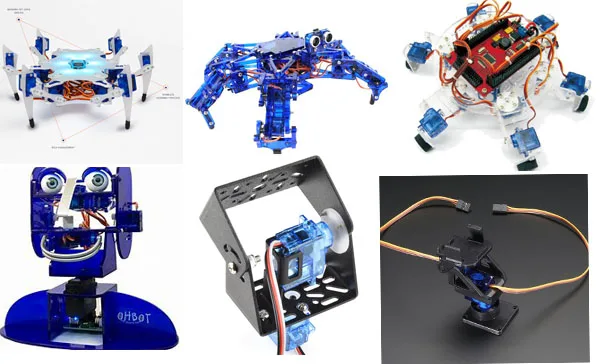

Servo application:

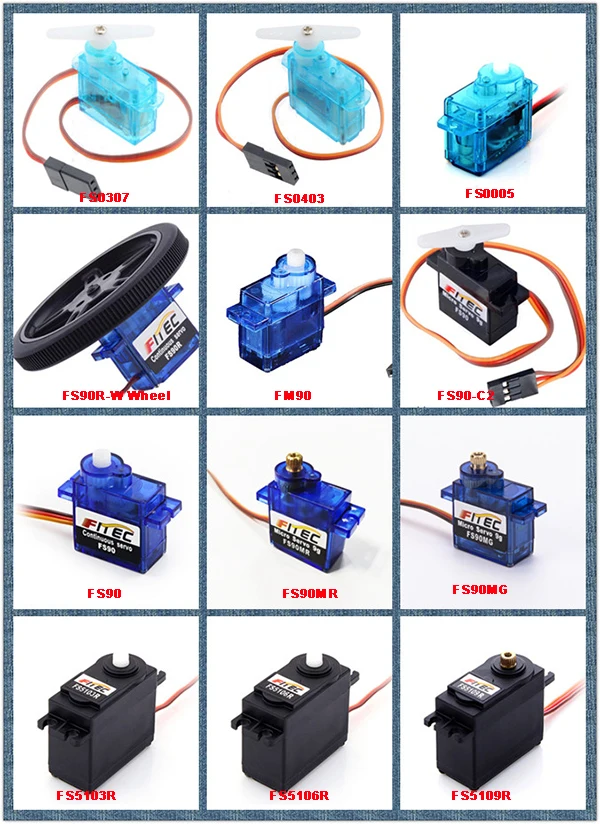

MAY WE ALSO SUGGEST...
Click Here >>>>> Contact Us To Get More Informations
Specialized in ODM and OEM and Custom Made
we can provide electronic design,
structure design and production of0 one-stop customized serive,
Please feel free to share with me your idea.
Customizable content:
2.Servo Wire:length,wire core,wire colour
3.Packing:PE Bag,Colur Box,plastic box wity your Logo
4.Cable connector:1-4 pin JR,JST,XH
5.Output Gear:
The material:Plastic,Copper,steel
Output teeth:25T Spline,hexagonal,and so on
6.CNC case:Case structure,colour
7.Electronic function More......
