- Place of Origin:CN;GUA
- Type:servo continuous rotation
- Brand Name:FITEC/FEETECH
- Model Number:FT5303R
- Use:Vehicles & Remote Control Toys
- Model Number:FT5303R
- Stall torque:3KG
- Color:black
- item:arduino control servo360
- type:robot servo
- gear:plastic
- control system:DIGITAL
- rotation:servo continuous rotation
- PRICE:CHEAP
FT5303R Digital 3kg Torque 360 Degree Continuous Rotation Servo
1.robot servo
2.Best choice for arduino robot

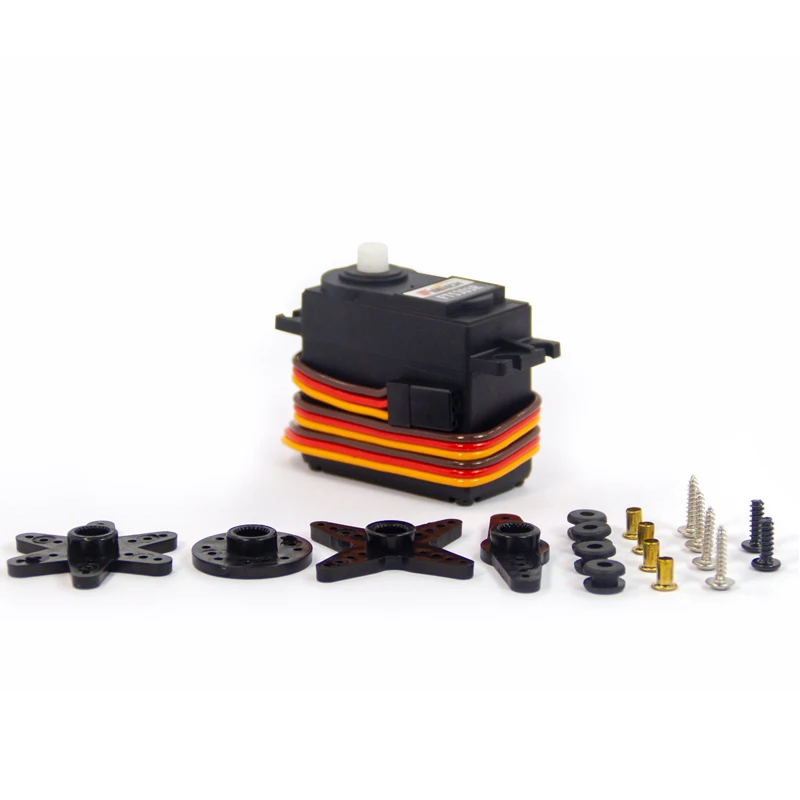

3.Accessories attached
4.ROHS CE
Feature:
Same servo with FS5103R, but without potentiometer.
It use new digital pcb,there is no hole on the shell,no need use potentiometer to adjust the rest point.more convenient for users.

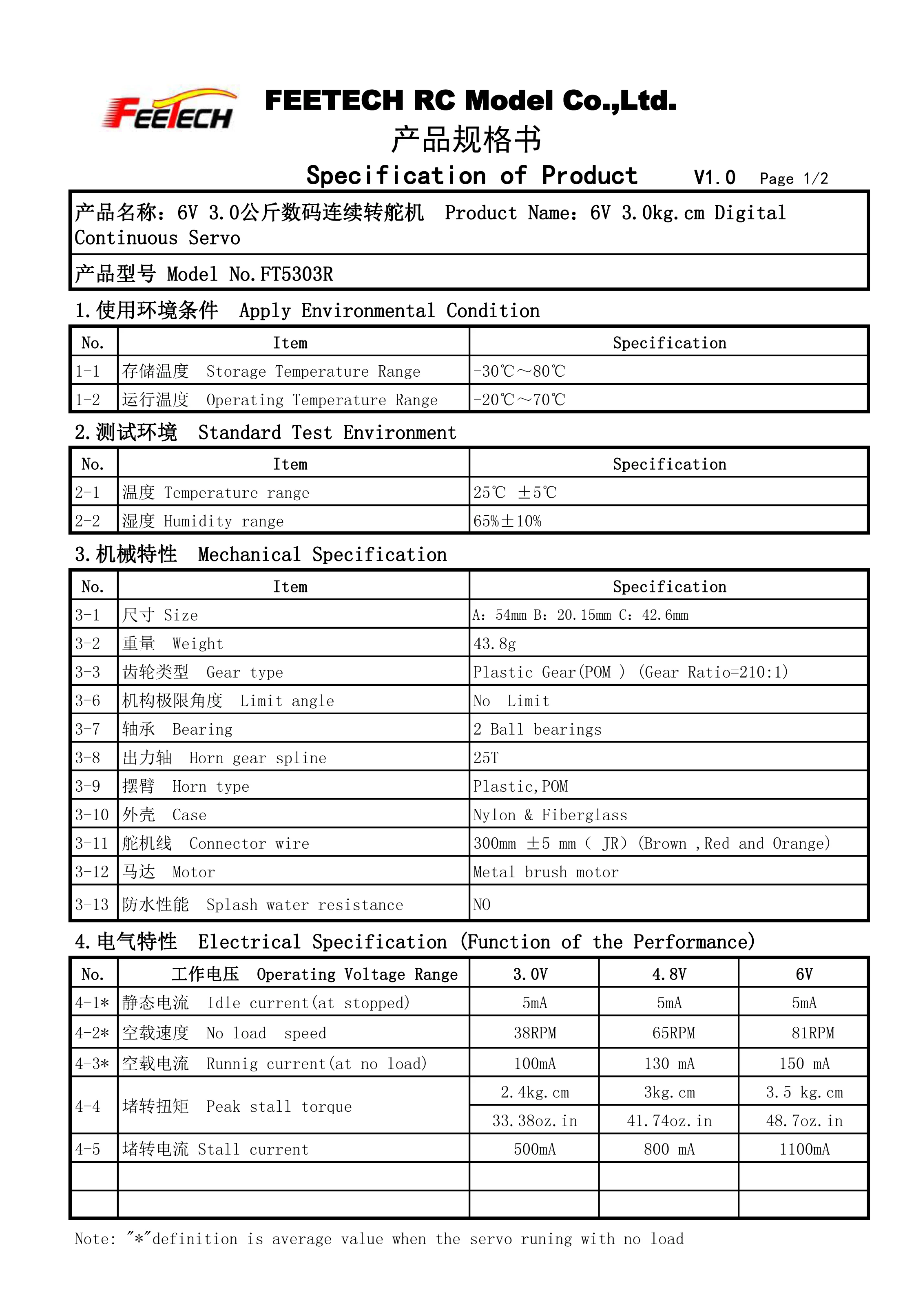

Specification:
FITEC | SIZE | WEIGHT | SPEED | Stall Torque | |||
SKU | (LxWxH) | g | oz | sec/60° | kg.cm | oz.in | |
FT5303R | 40.8x20.1x38 | 36 | 1.27 | 0.18(4.8V) | 3(4.8V) | 41.74(4.8V) | |
Direction :CCW
Operating Angle :360degree
Required Pulse :500us-2500us
Bearing Type :2BB
Gear Type :Plastic
Motor Type :Metal
Connector Wire Length :30 cm
Generating signals every 20ms, with1.5ms high time,the servo will stop move, if not, please changing the 0-Point setting of the servo let it stop to move.
After that,
Generating signals every 20ms, with1.0ms high time,the servo will move CW rotation.
Generating signals every 20ms, with2.0ms high time,the servo will move CCW rotation.

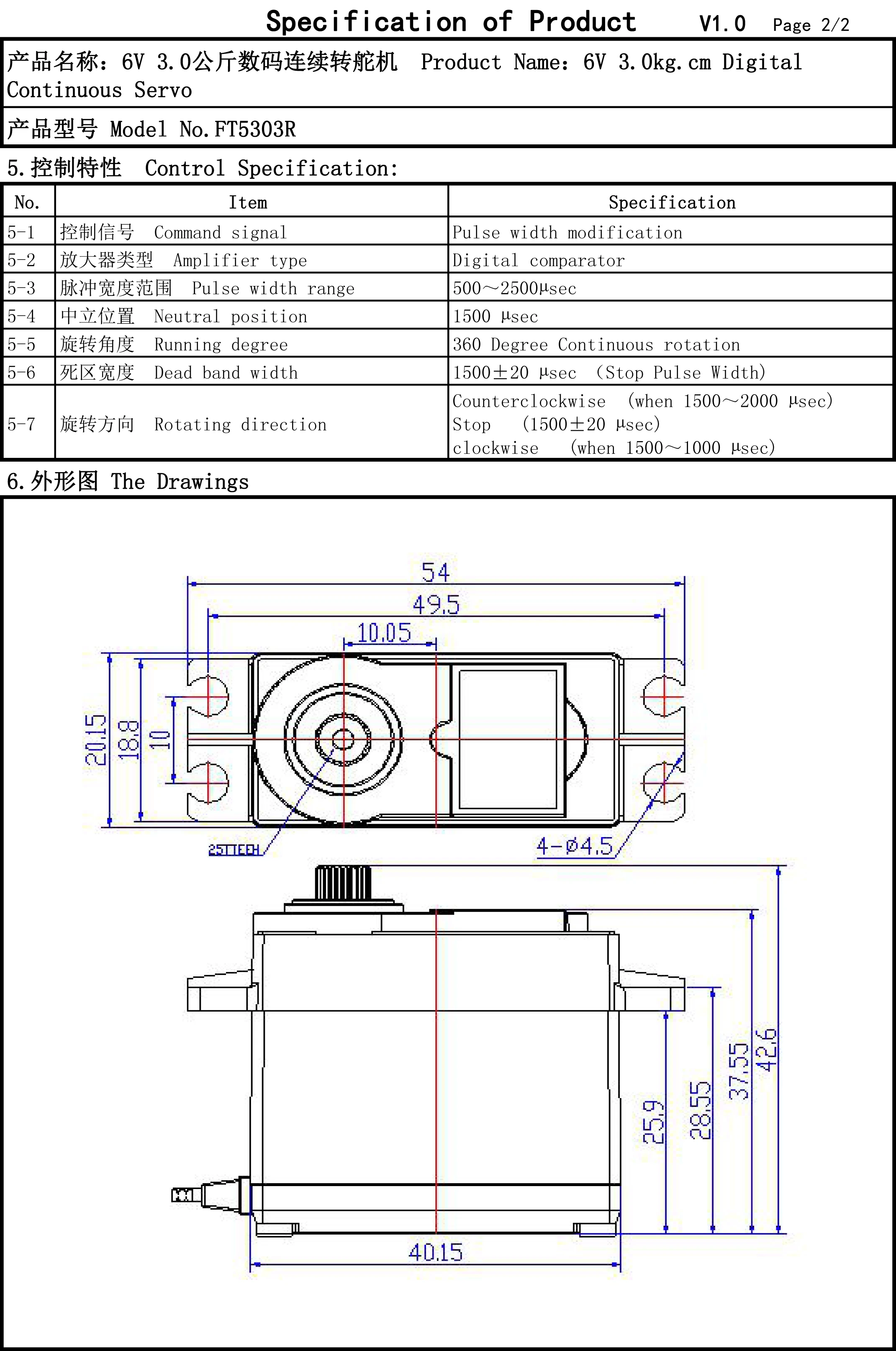

The Drawings:
Send Inquiry Here To Get A Sample!!!

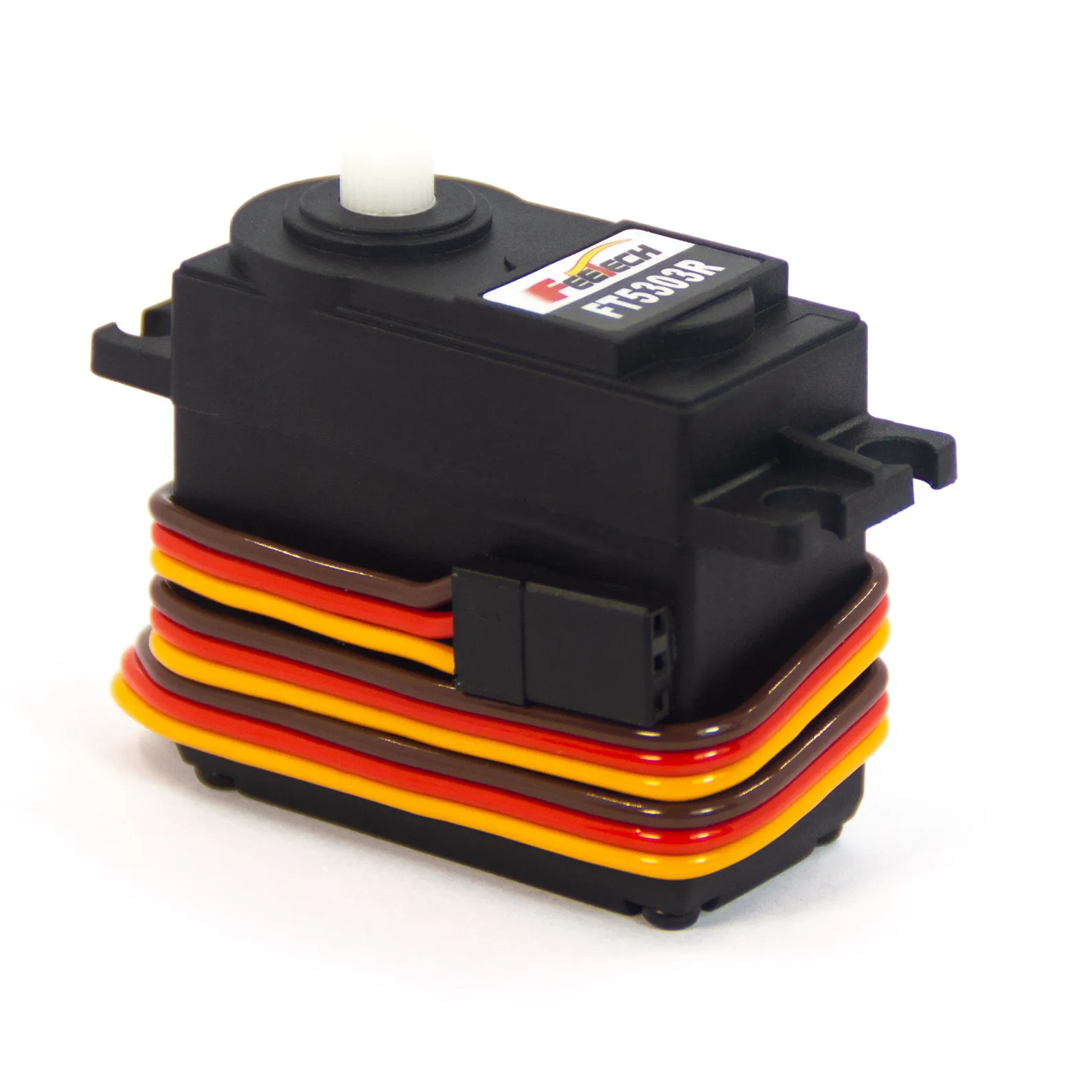

Picture:
Send Inquiry Here To Get A Sample!!!
Packing:
1-PE bag (A servo + accessory)
2-Box (A servo + accessory)
Send Inquiry Here To Get A Sample!!!
