- Color:Balck
- Weight:88 g
- Motor:Coreless motor

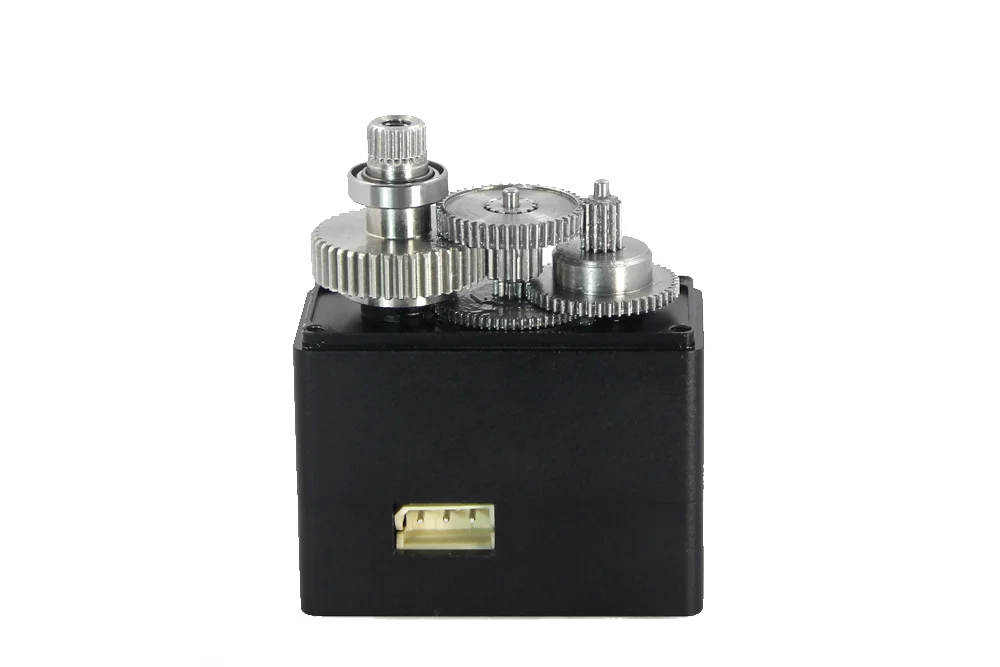

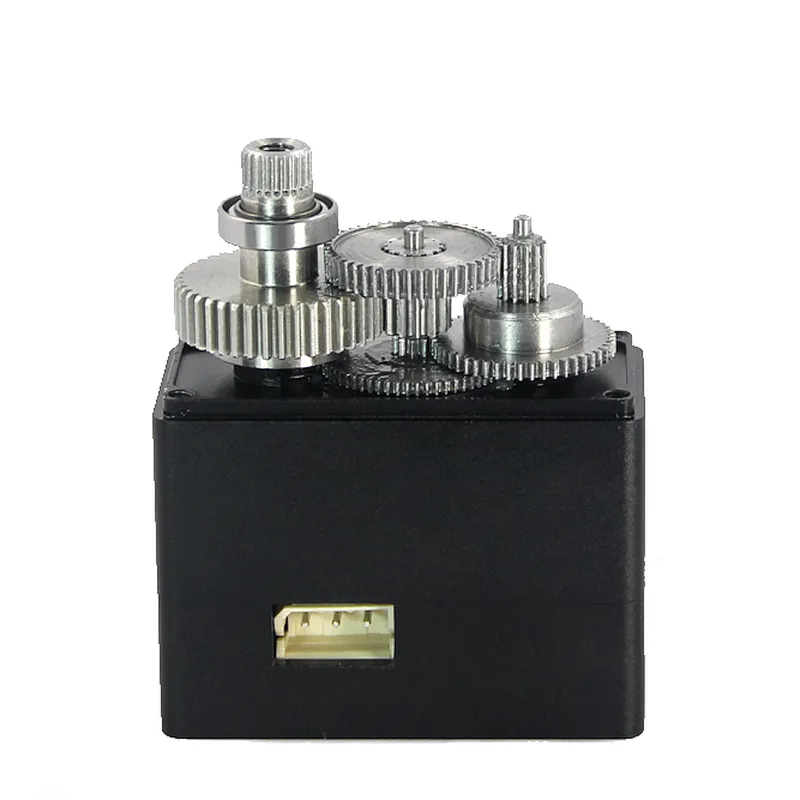

- Gear type:Metal Gear
- Limit angle:No Limit
- Bearing:2 Ball bearings
- Horn type:Aluminium
- Case:Aluminium
- Operating Voltage Range:6 V-7 v
- ID range:0-253
- Type:Car
- Power:Battery
- Material:Metal
- Scale:1:5
- Radio Control Style:RC Hobby
- Place of Origin:CN;GUA
- Brand Name:Feetech
- Model Number:SCS46-6T

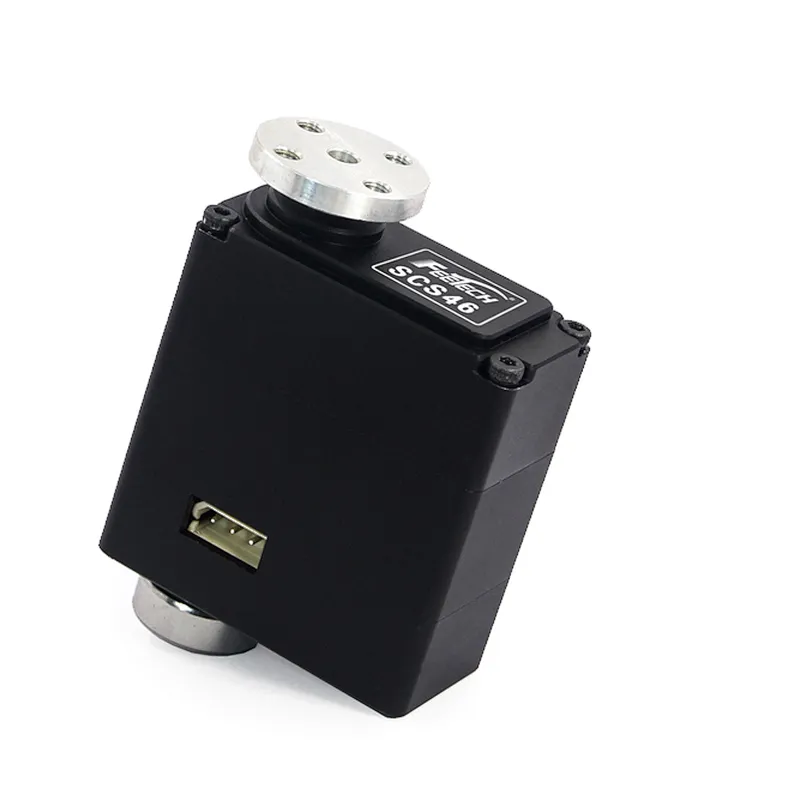

Products Description
SKU：SCS46-6T
Product Name：7.4V40kg serial bus servo
Motor | Coreless motor |
Size | 40*20*43.05 mm |
Connector wire | 150mm ±5 mm |
Peak stall torque | 33.3kg.cm@6V |
Rated torque | 11.1@6V |
Stall current | 2500mA@6V |
No load speed | 0.27sec/60°@6V |
Running current(at no load) | 120 mA@6V |
Communication Speed | 38400bps ~ 1 Mbps |
Running degree | 300° |
Operating Voltage Range | 6-7.4V |
Command signal | Bus Packet Communication TTL level |
Protocol Type | Half duplex Asynchronous Serial Communication |
Feedback | Load, Speed， Input Voltage， Current, Temperature |

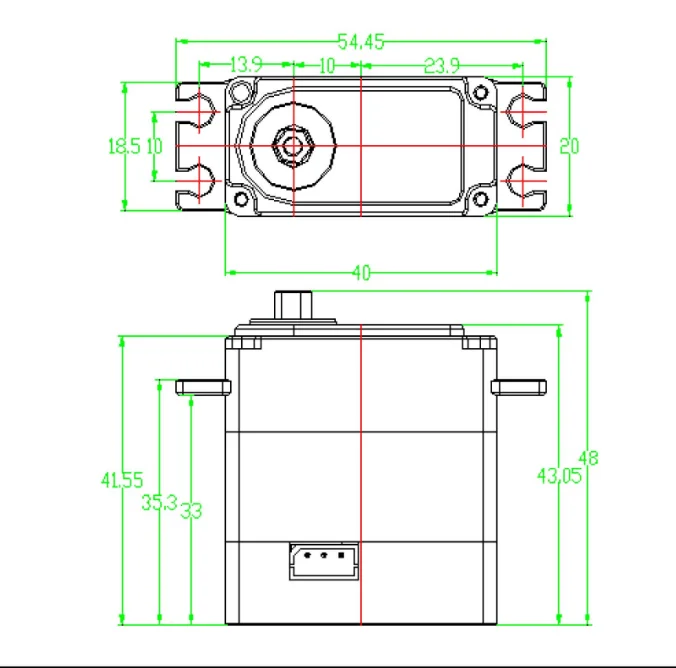

Product Size

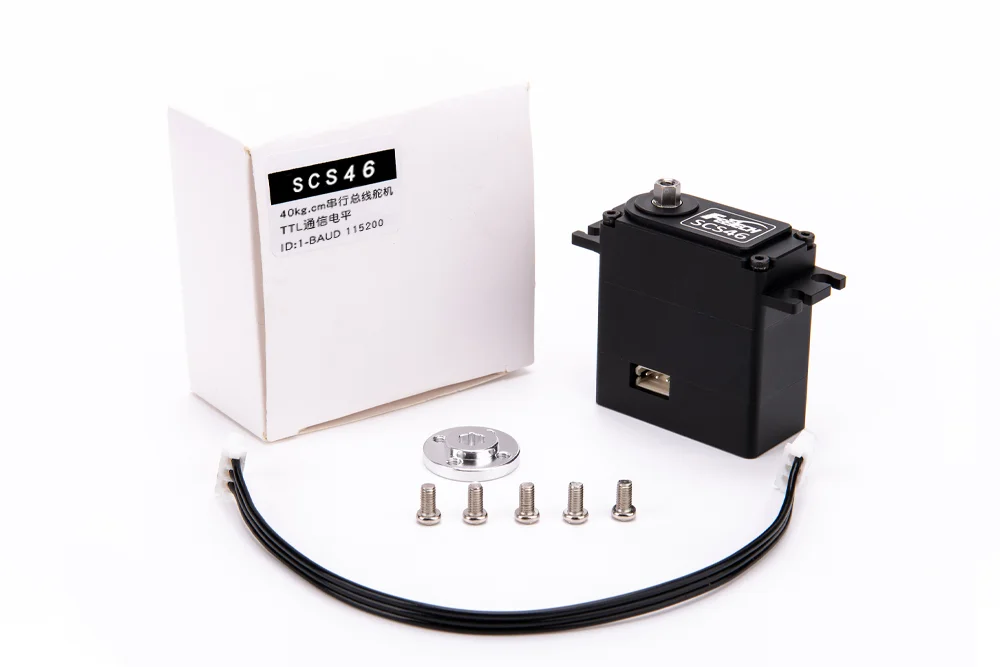

Product packaging
Selling Units: Single item
Single package size: 3*4*6 cm
Single gross weight: 0.2 kg

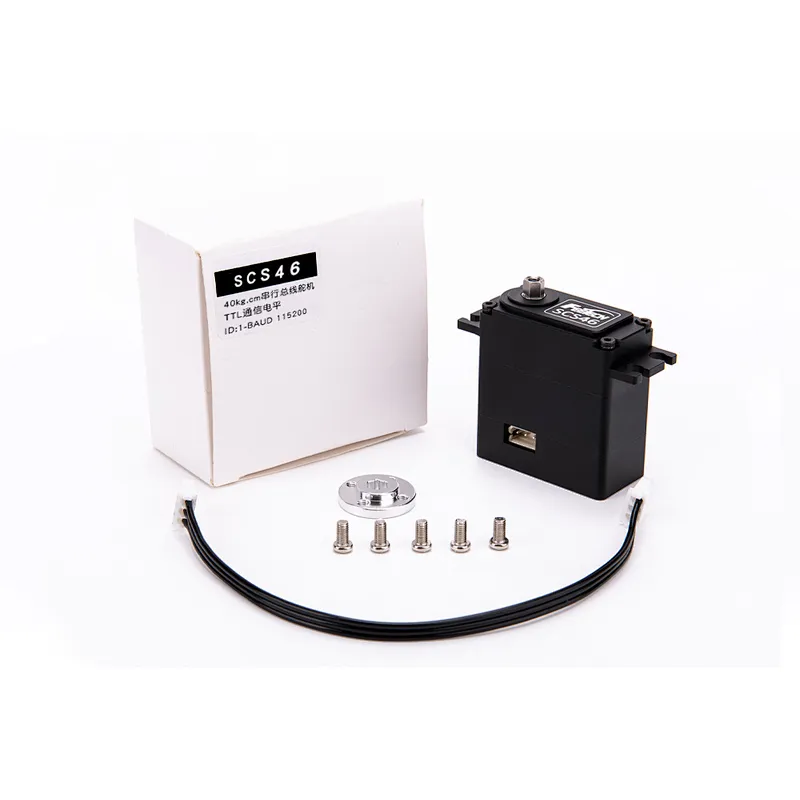

Package Type: Gift box with one bag of accessory

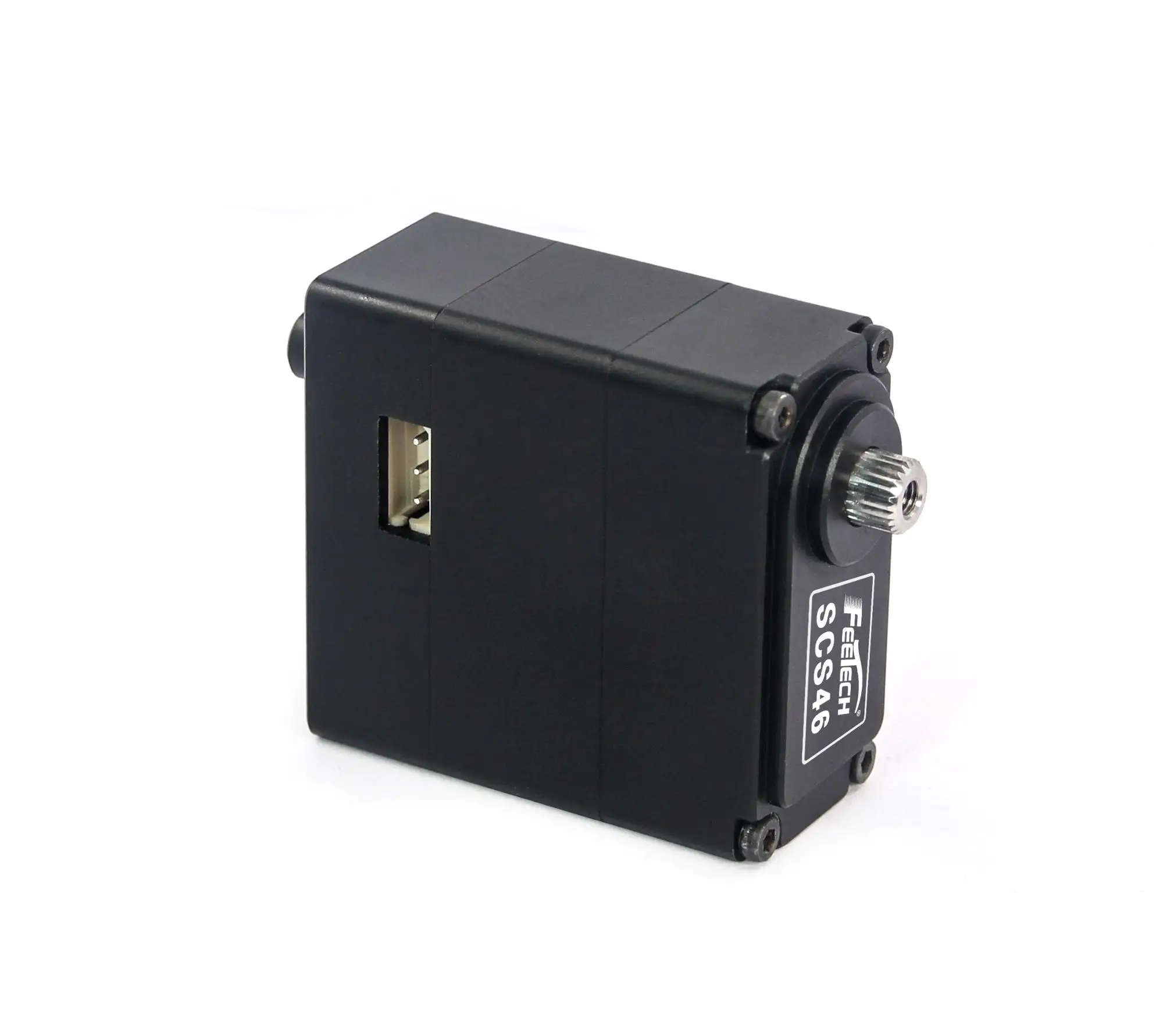

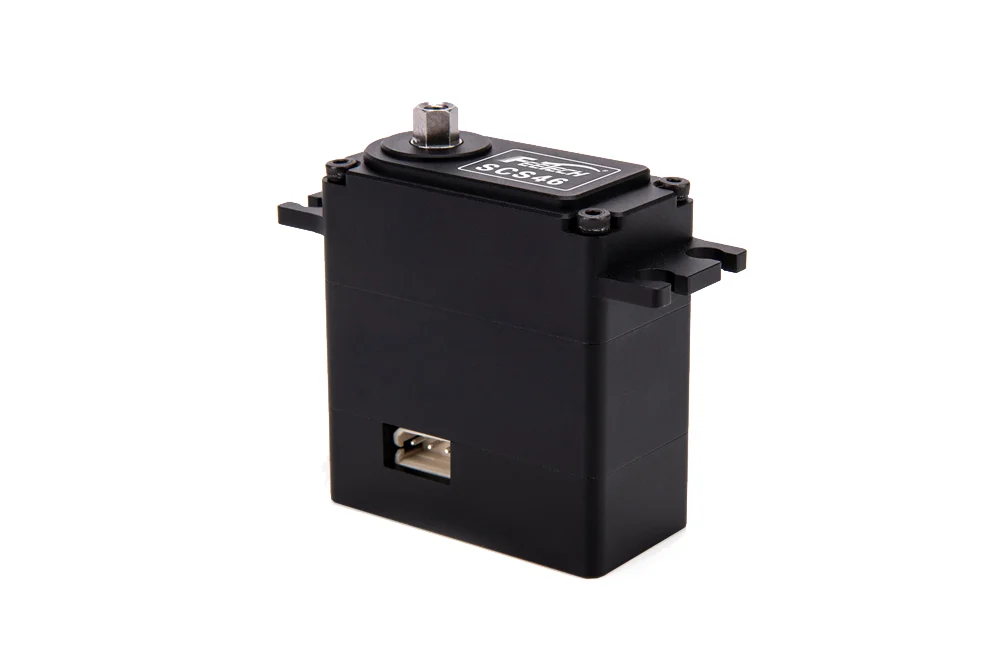

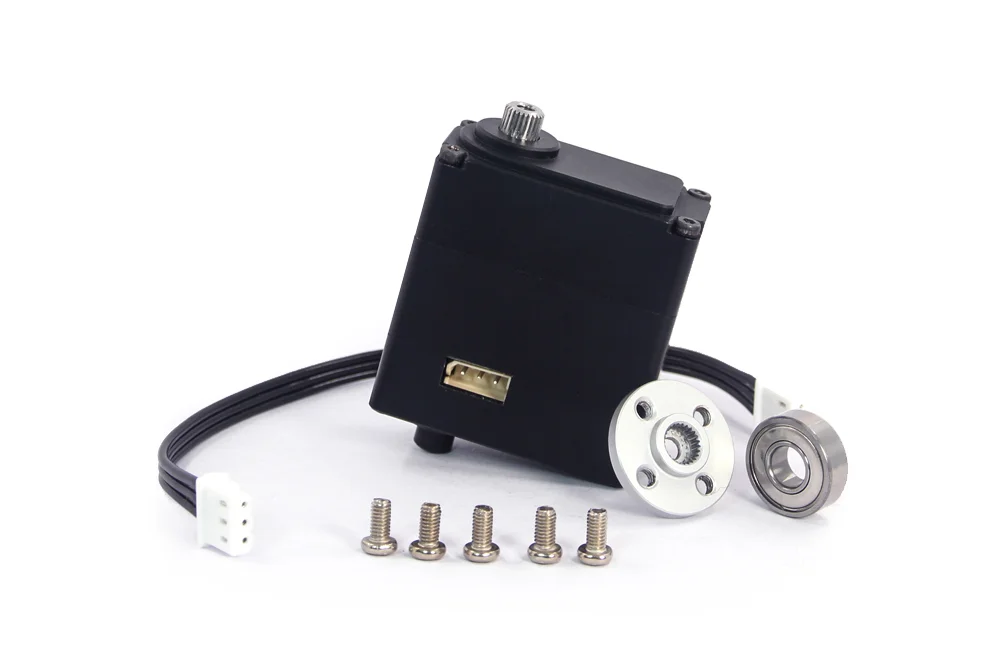

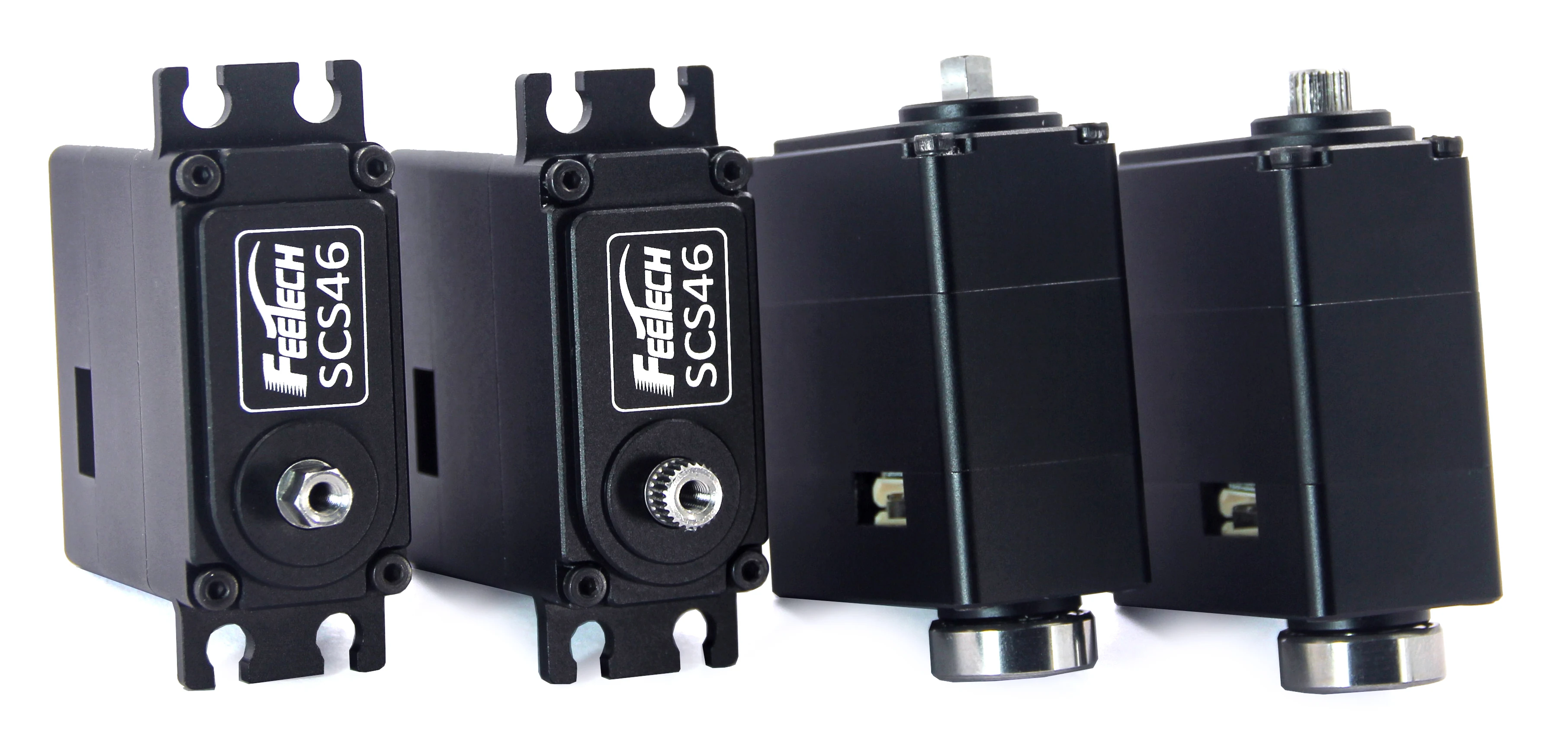

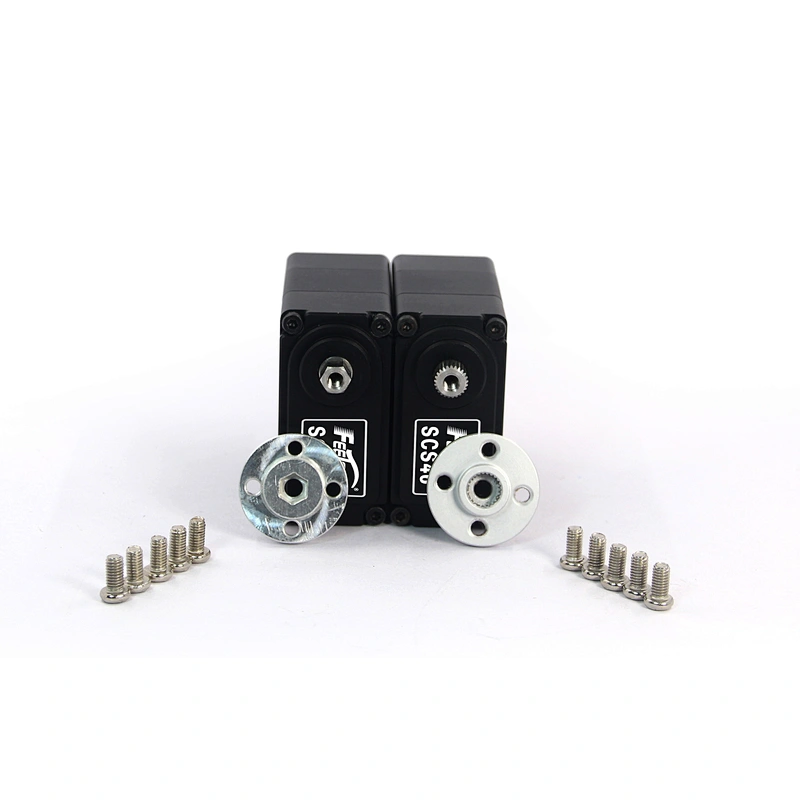

Details Images
Our Company
Shenzhen FEETECH RC Model Co., Ltd was established in 2011.
We are a research and development, customization, production and sale of high-quality servos for artificial intelligence products company.
It is committed to providing customized servo and industry solutions for enterprise users, and has been highly recognized and widely adopted by the partners.
Feetech make arduous efforts to promote the artificial intelligence industry development . The brand of “FEETECH” is based on the concepts of Flying, Excellent, Efficient and Technology.
We look forward to working with you to build a better future together!
Contact Us
Choose our,you can:
1.Your Logo label or print
2.Servo Wire:length,wire core,wire color.3.Packing:PE Bag,Color Box,plastic box with your Logo
4.Cable connector:1-4 pin JR,JST, XH
5.Output Gear:
The material:Plastic,Copper,steel,aluminium.
Output teeth:25 T Spline,hexagonal,and so on
6.CNC case:Case structure,color
7.Electronic function More......
If the servo does not match your requirements , please do not hesitate to contact with us, we have hundreds of servos for optional, and we are professional servo manufacturer since 2011, customizing servo as per requirements is our advantage.
