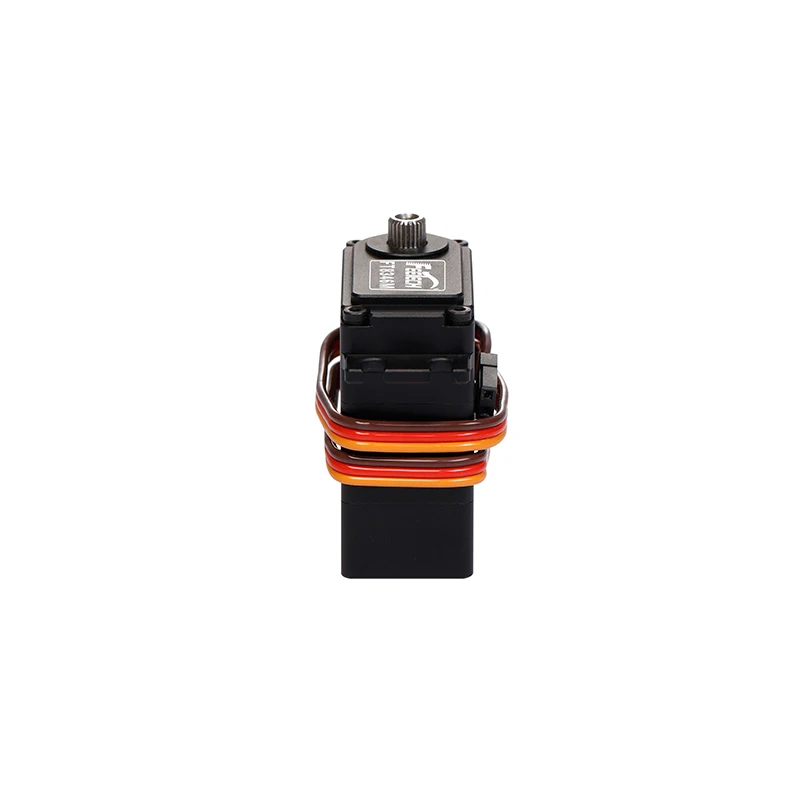

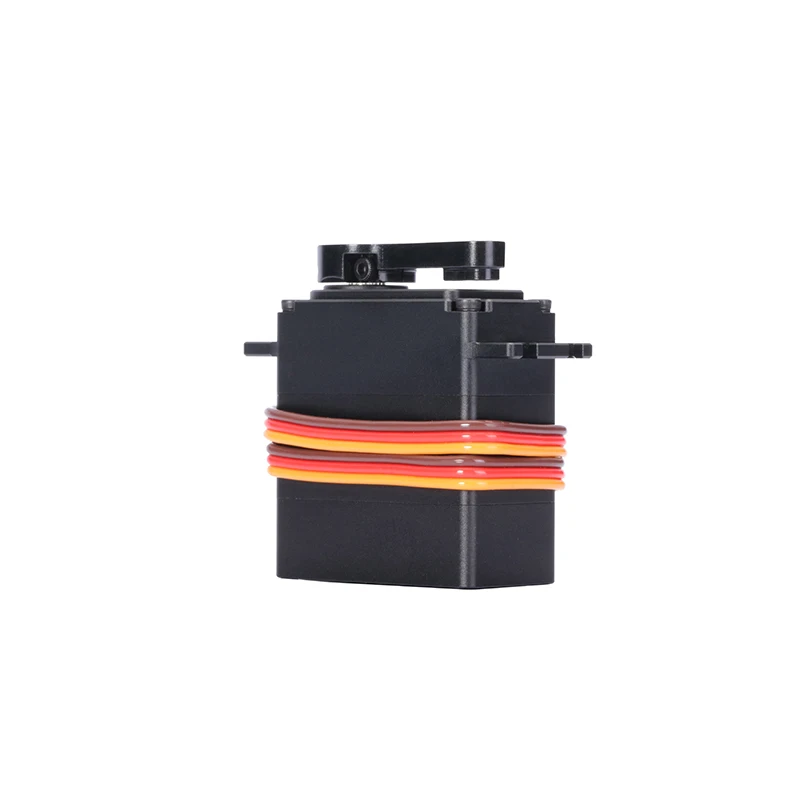

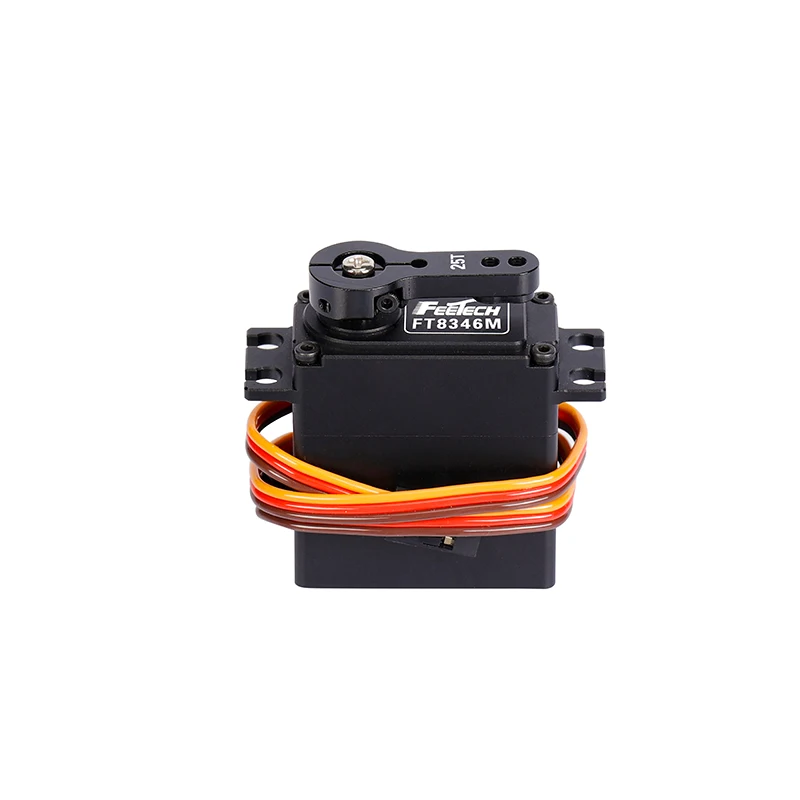

Feetech 7.4V 40kg.cm FT8346M digital 360 magnetic servo coreless motor aspberry Pi roby DIY servo
- Style:Radio Control Toy
- Gear material:Steel
- Bearing Type:Ball bearings
- Motor Type:Core Motor
- Mesurements (mm):54.45X20X43.05
- Weight (g):91.5± 1g
- Operating Voltage:4V-8.4V
- Control System:Digital
- Operating Angle:360° (at 500-2500μsec)
- Command Signal:Pulse width modification
- Type:Car
- Power:Battery
- Material:plastic
- Plastic Type:PP
- Scale:1:10
- Radio Control Style:RC Hobby
- Place of Origin:CN;GUA
- Brand Name:Feetech
- Model Number:FT8346M
Product Description
Product Name | Feetech 7.4V 40kg.cm FT8346M digital 360 magnetic servo coreless motor aspberry Pi roby DIY servo |
Motor | Coreless Motor |
Size | 54.45X20X43.05 |
Wiegh | 91.5± 1g |
Feetech 7.4V 40kg.cm FT8346M digital 360 magnetic servo coreless motor aspberry Pi roby DIY servo
Size:54.45X20X43.05Limit Angle:No limitCase material:AluminumGear material:SteelBearing type:Ball bearingsThe Weight:91.5± 1g Horn Type:25T/5.9mmGear Ratio:1/378Back Lash:≦0.5°The rocker phantom:0°The rocker screw :M3X6Motor:Coreless MotorCommand Signal:Pulse width modificationControl System Type:Digital comparatorOperating Travel:360°(at 500→2500μsec)Left&Right Travelling Angledeviation:≤ 1°Centering Deviation:≦1°Neutral Position:1500 μsecDead Band Width:≤4 μsecRotating Direction:Counterclockwise(1500→2000 μsec)Pulse Width Range:500→2500 μsecSignal Period:20msPulse Width:500us-2500usSignal high Voltage:2V-5VSignal Low Voltage:0.0V-0.45V
Product Usage
Specialized in ODM and OEM and Custom Made,we can provide electronic design,
structure design and production of0 one-stop customized serive..
structure design and production of0 one-stop customized serive..
1.Your Logo lable or print
2.Servo Wire:length,wire core,wire colour
3.Packing:PE Bag,Colur Box,plastic box wity your Logo
4.Cable connector:1-4 pin JR,JST,XH
5.Output Gear:
The material:Plastic,Copper,steel
Output teeth:25T Spline,hexagonal,and so on
6.CNC case:Case structure,colour
7.Electronic function More......
2.Servo Wire:length,wire core,wire colour
3.Packing:PE Bag,Colur Box,plastic box wity your Logo
4.Cable connector:1-4 pin JR,JST,XH
5.Output Gear:
The material:Plastic,Copper,steel
Output teeth:25T Spline,hexagonal,and so on
6.CNC case:Case structure,colour
7.Electronic function More......
Related Products
Packing&Shipping

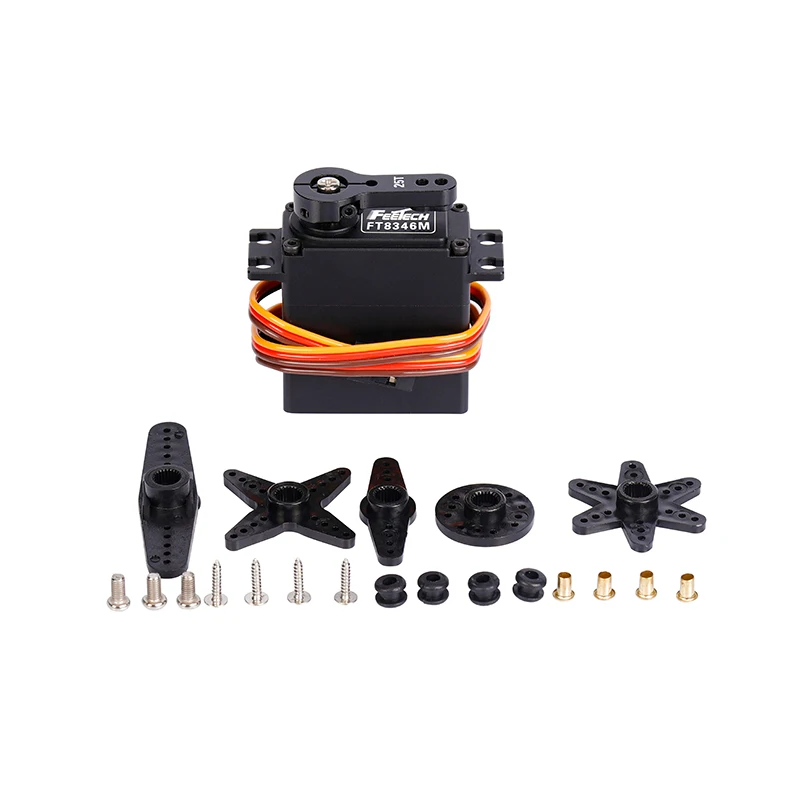

-Servo×1PCS
-Servo arm with Screw setX1bag
-Servo arm with Screw setX1bag
