- Style:Radio Control Toy
- Place of Origin:CN;GUA
- Brand Name:Feetech
- Material:plastic
- Radio Control Style:RC Model
- Power:Battery
- Type:Airplane
- Scale:1:16
- Model Number:FT1117M
- Plastic Type:Other
- color:Black
- servo type:17g servo
- usd for:rc hobby,robot,Hexapod Robot,Insectbot
- Feature:miniature-sized servo with the same output spline as standard servos
- Certificate:CE ROHS
- Brand:feetecch
- website:www.feetechrc.com
- Control:Aanlog
- wire:30cm
- Product size:30*12*31.7mm

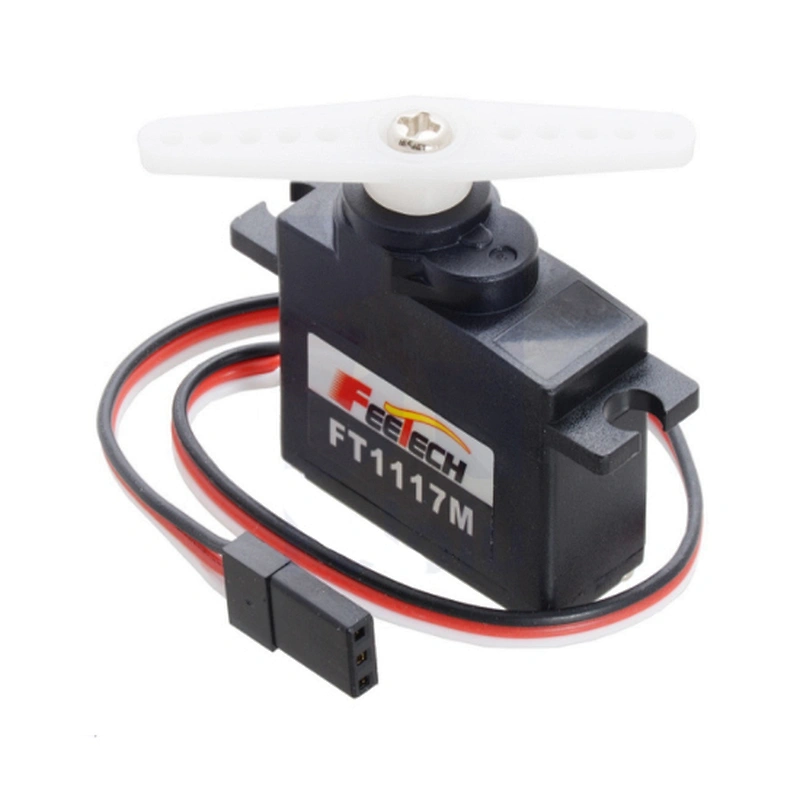

FEETECH 3.5kg 17g Mini Miniature-sized Servo Output Spline Same As Standard Servo FT1117M
Servo Specification:
| Mechanical Specification | |||
| No. | Item | Specification | |
| 1 | Size | A:30mm B:12mm C:31.7mm | |
| 2 | Weight | 20g ±0.2 | |
| 3 | Gear type | Metal Gear | |
| 6 | Limit angle | 200degree | |
| 7 | Bearing | NO Ball bearings | |
| 8 | Horn gear spline | 25T(5.8mm) | |
| 9 | Horn type | Plastic,POM | |
| 10 | Case | ABS | |
| 11 | Connector wire | 180mm ±5 mm | |
| 12 | Motor | Core motor | |
| 13 | Splash water resistance | NO | |
| Electrical Specification (Function of the Performance) | |||
| No. | Operating Voltage Range | 4.8V | 6V |
| 1 | Idle current(at stopped) | 5mA | 6mA |
| 2 | No load speed | 0.13sec/60degree | 0.11sec/60degree |
| 3 | Runnig current(at no load) | 130 mA | 150 mA |
| 4 | Peak stall torque | 3kg.cm | 3.5kg.cm |
| 41.66oz.in | 48.6oz.in | ||
| 5 | Stall current | 700 mA | 800mA |
| Control Specification: | |||
| No. | Item | Specification | |
| 1 | Command signal | Pulse width modification | |
| 2 | Amplifier type | Analog comparator | |
| 3 | Pulse width range | 500~2500µsec | |
| 4 | Neutral position | 1500µsec | |
| 5 | Running degree | 180°(when 500~2500 μ sec) | |
| 6 | Dead band width | 2 µsec | |
| 7 | Rotating direction | CW(when 1500~500 µsec) CCW(when 1500~2500 µsec) | |
The FT1117 from FEETECH is a miniature-sized servo with the same output spline as standard servos,
making it compatible with standard-sized servo horns, and the gear train is made primarily of metal gears. Servo horns and associated hardware are included.
Key specs at 6 V: 0.11 sec/60°, 50 oz-in (3.5 kg-cm), 20 g.
The FT1117M is a miniature-sized servo from FEETECH with the same output spline as standard servos,
making it compatible with standard-size servo horns.

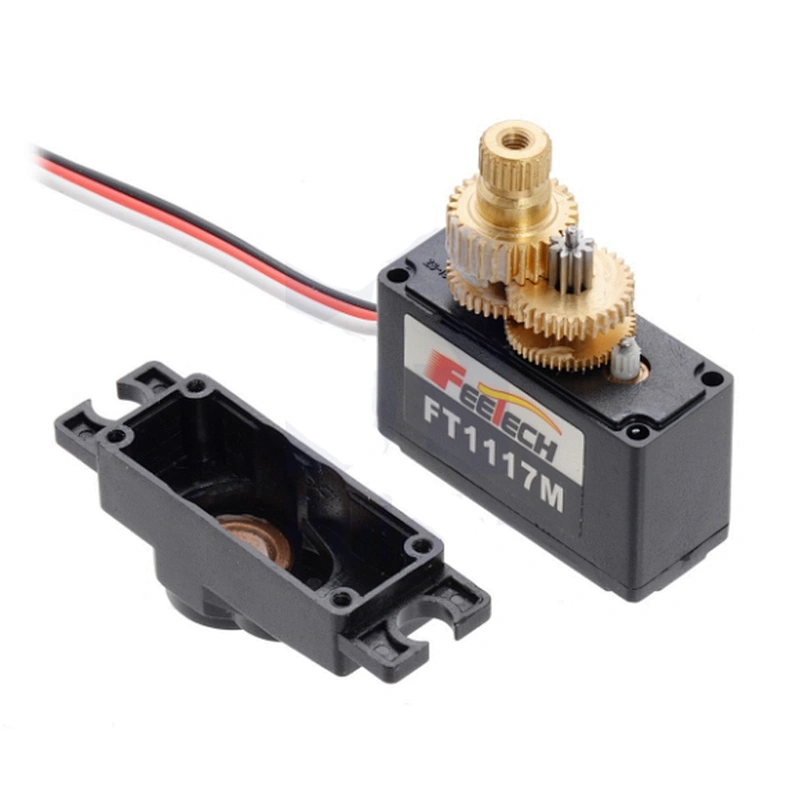

The pinion gear is plastic, but the rest of the gear train consists of all metal gears,
allowing this servo to deliver the kind of speed and torque typically associated with larger servos.
The FT1117M works with standard RC servo pulses,
offering position control over a 120° operating angle for standard servo pulses between 900 µs to 2100 µs. As with most servos,
the pulse range can be expanded to achieve an expanded operating angle (FEETECH does not specify this beyond listing a physical limit angle of 200°).

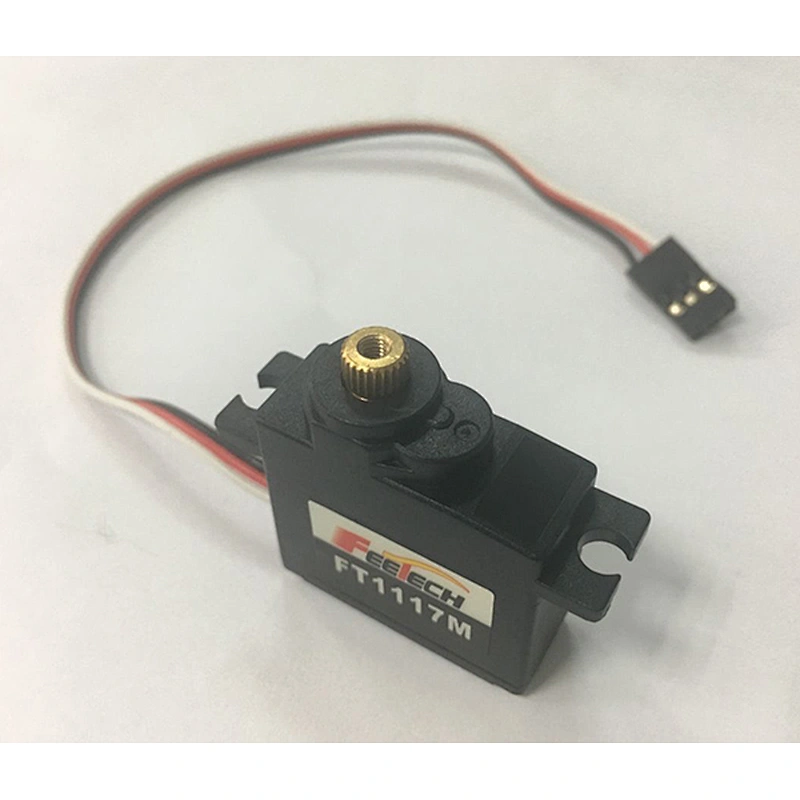

The servo has a 7″ (18 cm) cable that is terminated with a standard JR-style connector, which is Futaba-compatible,

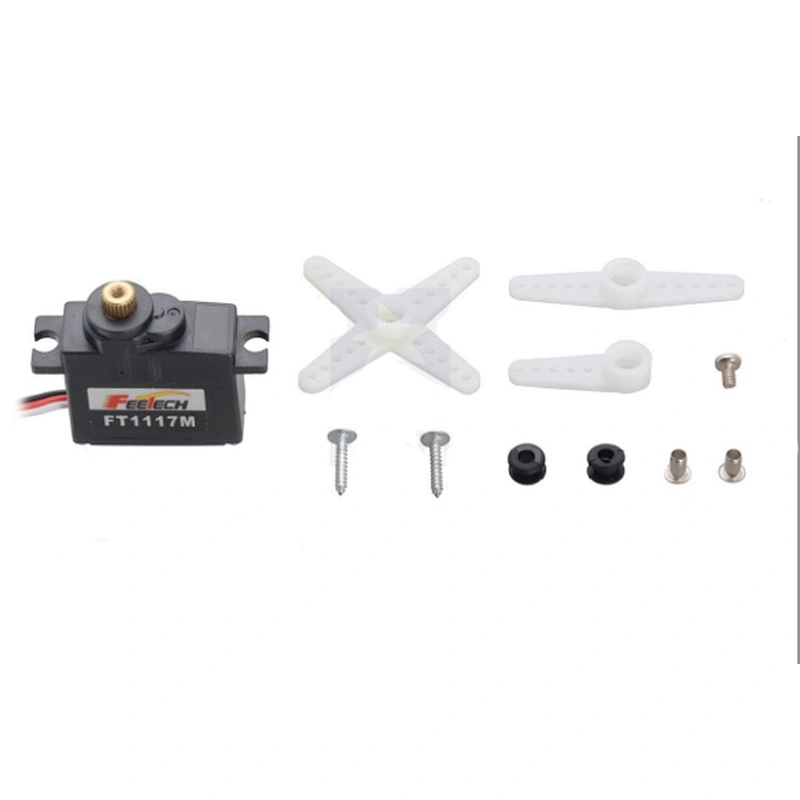

and it includes additional servo horns and mounting hardware.
Packing:
1-PE bag (A servo + accessory)
2-Box (A servo + accessory)
Specialized in ODM and OEM and Custom Made
we can provide electronic design,
structure design and production of0 one-stop customized serive,
Please feel free to share with me your idea.
About us
Shenzhen FEETECH RC Model Co., Ltd. a high-tech manufacturer,specializes in the research & development,production and sales of high-quality servo and servo application,Our main products involved in Servo,Humanoid robots,Smart Car,Robot Arm,etc.
Our various types of servos are mainly used in R/C model, R/C drone, robotics and industrial applications;in particular , the application of Serial Bus Robot Servo in research,education and entertainment robots field is highly recognized and widely used by customers .
We have a professional R & D team ,which provides customers with customized servo and servo application development service to meet specific customer needs.
Our products have passed the CE, ROHS ,FCC certification,and each product is through a series of stringent quality control standards testing and inspection to ensure good quality of each manufactured products, which make our products are sold popular worldwide.
The brand of “FEETECH” is based on the concepts of Flying, Excellent, Efficient and Technology.
Exhibition Show
Contact Me
Our certificate:
Packaging
Shipping
We adopt EXW term. Generally, we choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable.
Payment
We adopt T/T payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are charged to purchasers.
Warranty Procedure
As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.
Warranty Period
All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase.
Q:How about your quality?
A:Our quality will be good,and the goods have been checked and tested one by one before shipping.
Q:How long for the delivery once we place order?
A:The lead time is declded the item you ordered and the quantity.
For normal order,the lead time is about in 5-7 days,
If big quantity or OEM,the lead time will be some days more.
Q:The price you are offering is with shipping costs included?
A:The price does not include the shipping cost.We offer several
shipping solutions,make sure customers choose the most economical one.
Q:Do you have After-Sales Service?
A:Of course,We have special department to do it,and if you have any technology
problem,our eingeer will give your answer.
