- color:black
- size:small
- use:Learning KIT
- Range:school education
- item:smart robot car
- voltage:DC 3V 5V 6V
- kind:suitable study kit
- For:children,kids
- style:robot learning kit
- goods:4WD Chassis Kit

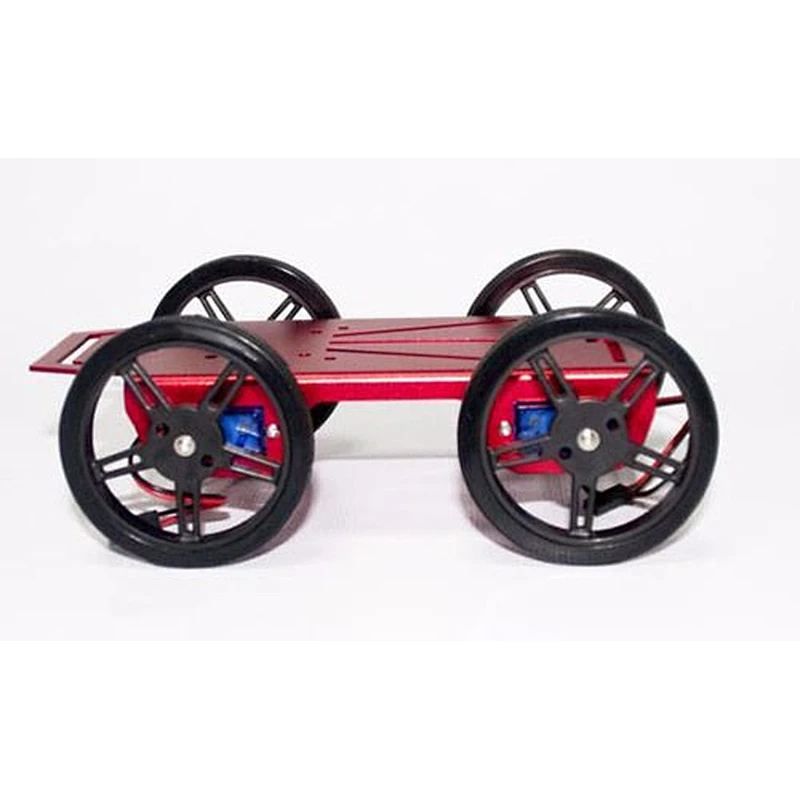

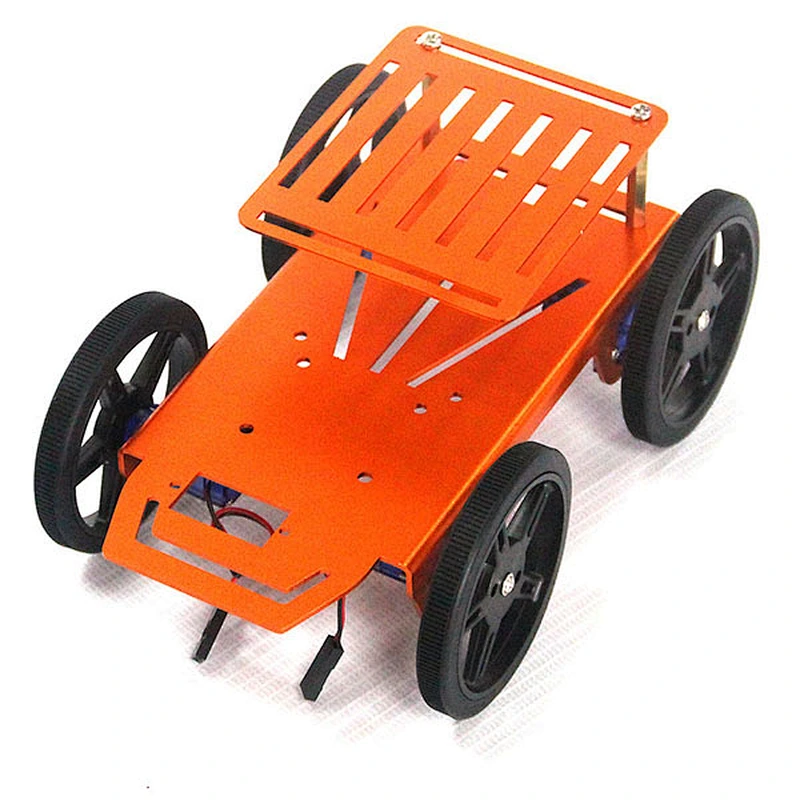

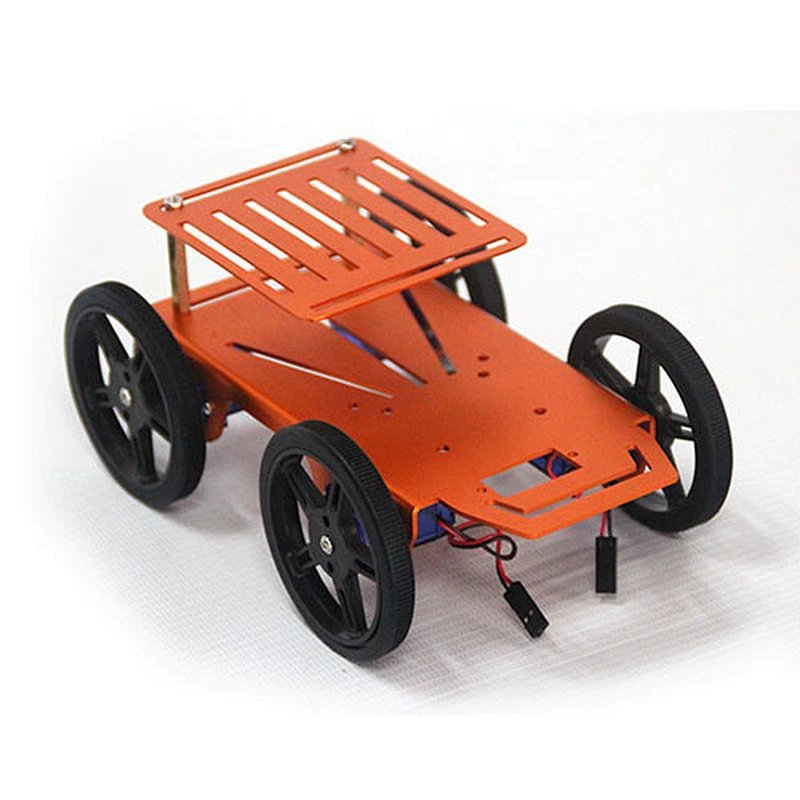

4 Wheeled Robot Smart Car Chassis Kit suitable study kit

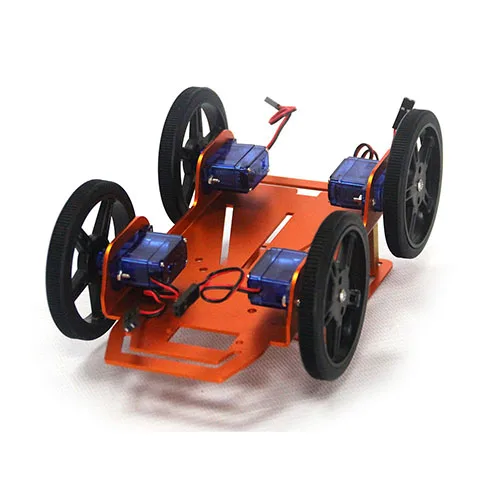

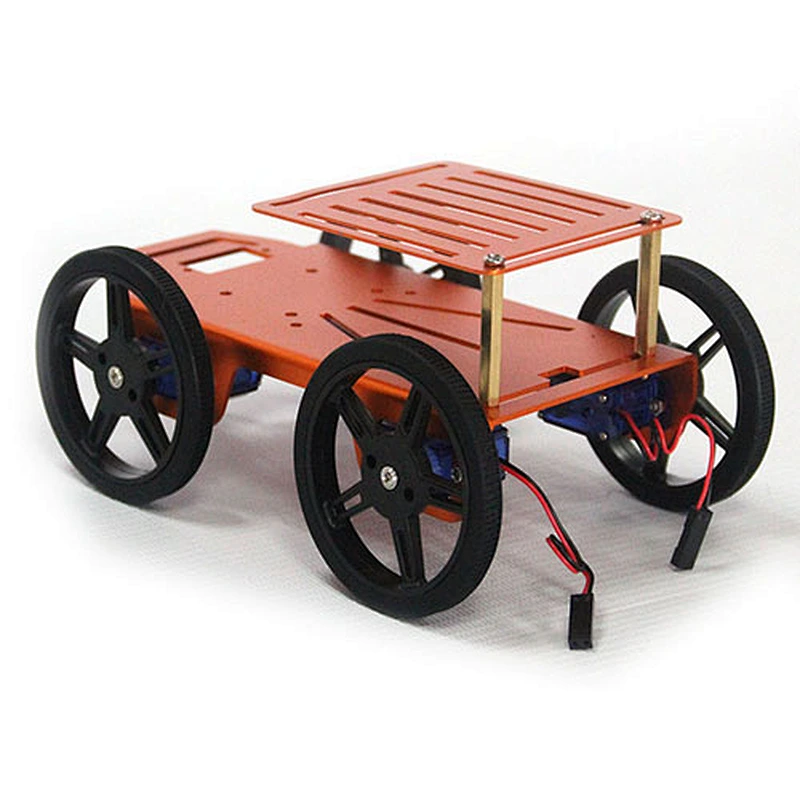

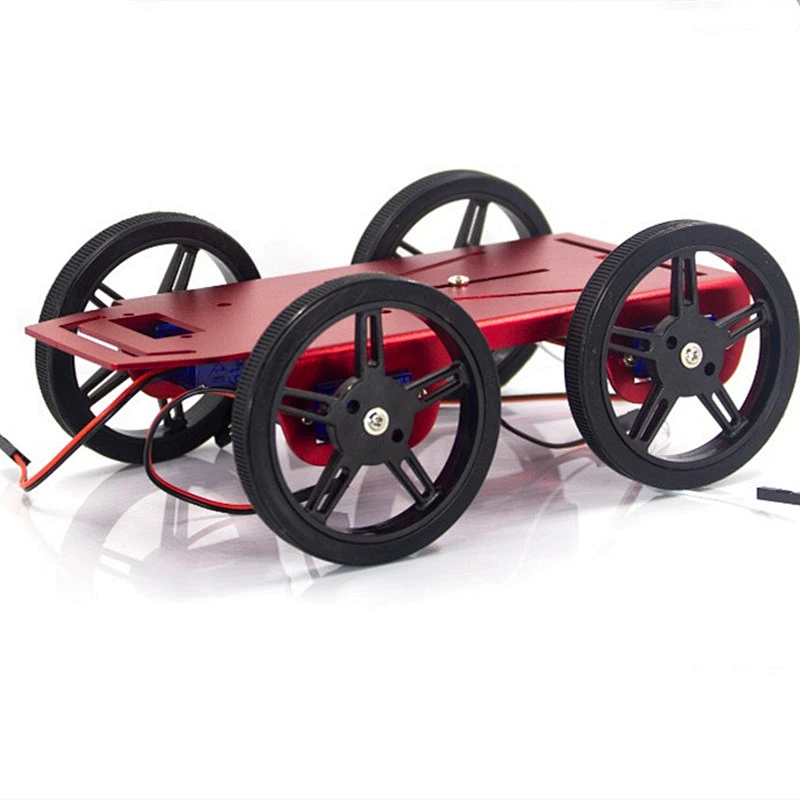

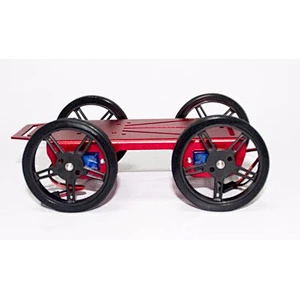

FEETECH 4WD Mini Robot Mobile Platform Kit FT-MC-003
–No completely assembled and without any electronic control part
1.All about fun and creativity.
2.Easy-to-assemble,an all-in-one solution for kids to improve the hands-on ability about
programming, electronics, and robotics.
3.Enjoy the pleasure of DIY (add all kinds of sensors,infrared ray,
free become to obstacle-avoidance car,
line-following vehicle, remote control car,etc),provides infinite possibilities.

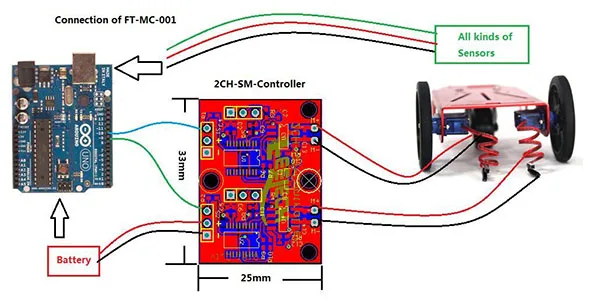

4.Compatible with any controller. (Arduino,Raspberry PI,Banana PI,etc)
Description:
- Mini Robot Mobile Platform uses 4 DC motor gear box to drive. The spec the same as FS90R - - High speed up to 100RPM, 1.3kg.cm at 800mA.
- Two plastic wheels are press-fit onto DC motor gear box output gear shaft, and easy to make a nice drive solution for small robots. The wheels have silicone tires and measure 60mm (2.36″) in diameter.
- Can upgrade to 4WD version.
- This Mini Robot Mobile Platform frame make with 5051 aluminum alloy and anodize color (The factory default is red. Can do other color if need. ).
- Mini Robot Mobile Platform can compatible with Arduino controller.
- Easy to add all kinds of sensor and let it to work at your idea.
- This is a good start kit for student.
Specifications:
- Size(L*W*H): 170mm*100mm*60mm
- Weight: 147g
- Drive: 4WD
- Frame: 1.5mm aluminum alloy structure, light weight and high strength
- Color: Red(other color if need)
- Work voltage: 4.5~6V
Package Included:
- DC motor gear box x 4
- FS90R-W x 4
- Frame x 2
- Screw 1 SET
